2015 Yamaha FJ09 (FJ09FR) Windshield Diagram

← All diagrams

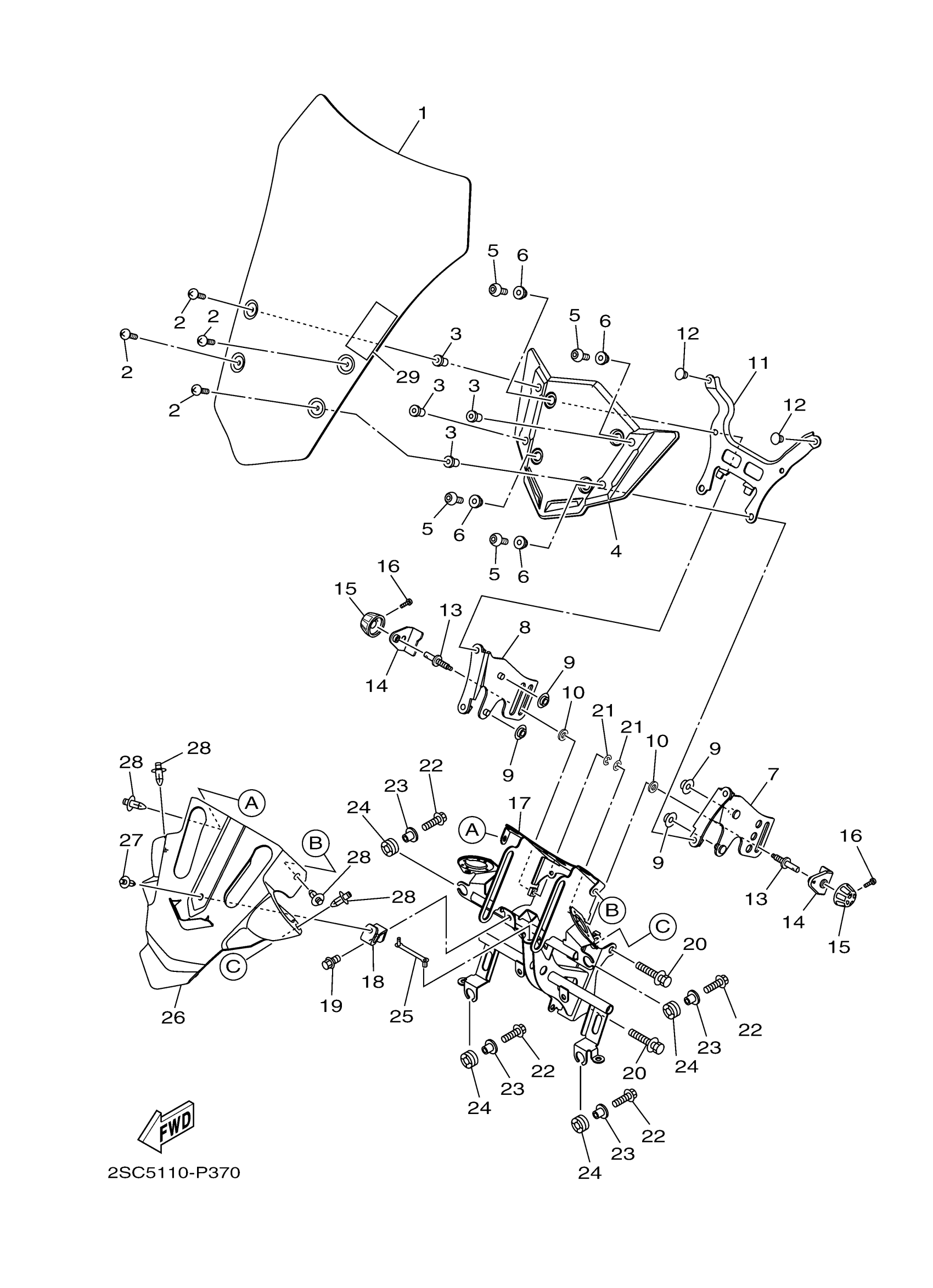

Find the part on the Windshield diagram for your 2015 Yamaha FJ09 (FJ09FR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha FJ09 (FJ09FR) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSHIELD

2PP-28381-00-00

—
Out of stock

2

SCREW, ROUND HEAD(1UX)

90150-05024-00

1

$2.85

In stock

3

NUT

90179-05003-00

1

$4.89

In stock

4

COVER 1

2PP-84369-00-P0

1
Out of stock

5

BOLT

90111-06029-00

1

$4.71

In stock

6

COLLAR

90387-06048-00

1

$6.06

In stock

7

STAY, SIDE 1

2PP-2831U-00-00

—
Out of stock

8

STAY, SIDE 1

2PP-2832U-00-00

—
Out of stock

9

BUSH

90386-07MA2-00

1
Out of stock

10

WASHER PLATE 122217250000

90202-07015-00

1
Out of stock

11

STAY, SUPPORT 1

2PP-2831T-00-00

—
Out of stock

12

PLUG 288833190000

90338-07043-00

1

$5.35

In stock

13

BOLT, LEG SHIELD

2PP-28331-00-00

1
Out of stock

14

STAY, GUIDE 1

2PP-2831E-00-00

1
Out of stock

15

KNOB

3P6-8432N-00-00

1

$8.70

In stock

16

SCREW, PAN HEAD(3HH)

98507-03010-00

—
Out of stock

17

STAY 1

2PP-28356-00-00

—
Out of stock

18

BRACKET 1

2PP-2836A-00-00

—
Out of stock

19

BOLT, FLANGE

95022-06010-00

—

$5.45

In stock

20

BOLT, WITH WASHER

90119-08062-00

—
Out of stock

21

CIRCLIP(6L5)

99080-03600-00

1

$3.26

In stock

22

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

23

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

24

DAMPER

3C3-83513-00-00

—

$6.43

In stock

25

CLAMP

90464-09026-00

—

$3.91

In stock

26

PANEL, INNER 3

2PP-2836M-00-00

—
Out of stock

27

RIVET

90269-05006-00

—
Out of stock

28

RIVET

90269-07007-00

—

$3.37

In stock

29

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

—

$7.25

In stock
