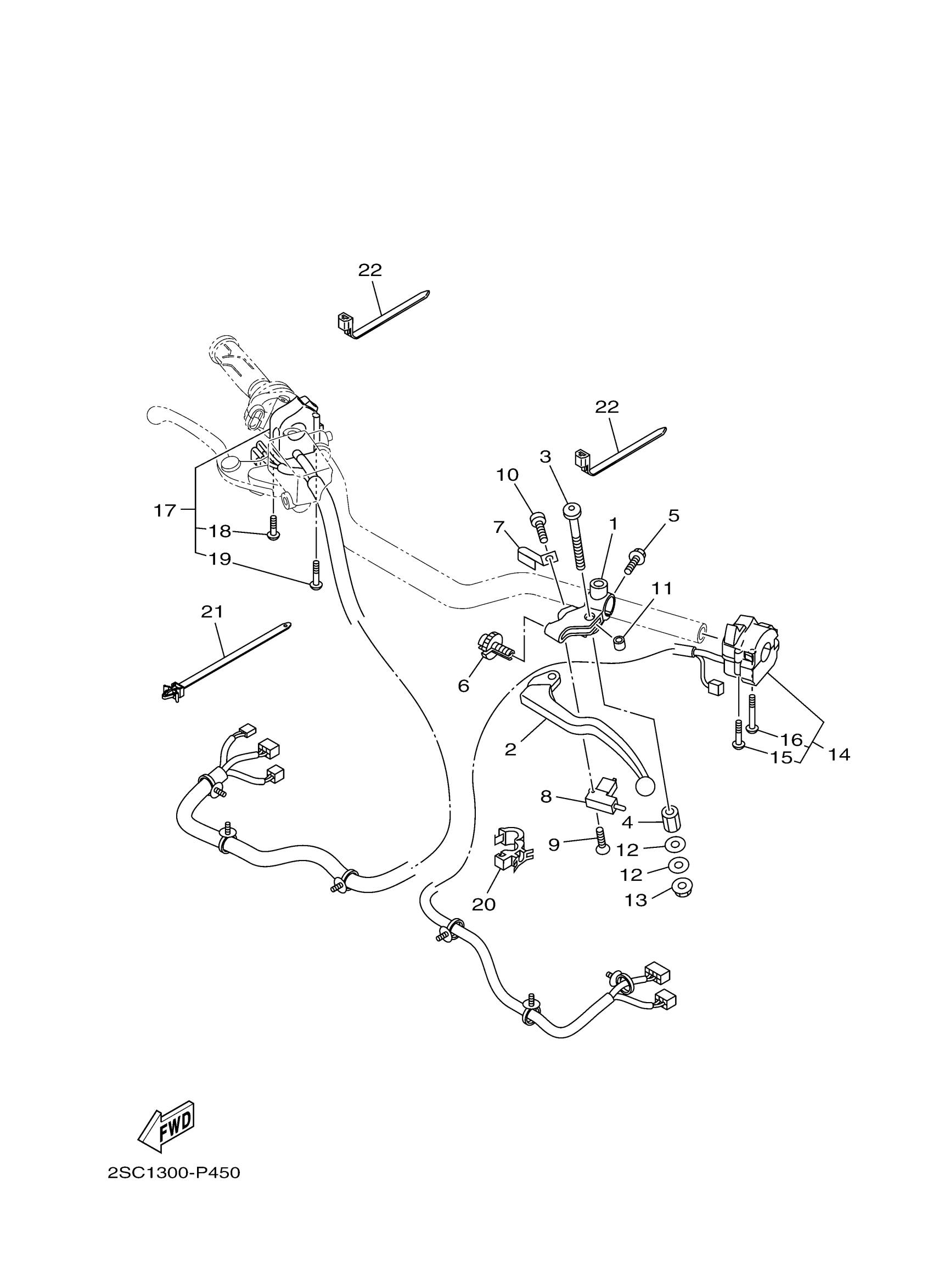

Yamaha FJ09FR (FJ09) 2SC50 2015 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1B3-82911-00-00

$40.99

2

LEVER 1

5EB-83912-03-00

$53.99

3

BOLT, LEVER

2PP-83945-00-00

$9.99

4

NUT

90170-06424-00

Unavailable

5

. BOLT, FLANGE

95027-06020-00

Unavailable

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$58.99

7

PLATE, SPRING

4XV-83929-00-00

$11.99

8

SWITCH

3YX-82917-01-00

$43.99

9

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

10

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

11

COLLAR, LEVER 1

5JJ-83913-00-00

$8.99

12

WASHER, PLATE

90201-06079-00

$8.49

13

NUT,SELF-LOCKING

95607-06200-00

$12.49

14

SWITCH HANDLE 5

2PP-83969-01-00

Unavailable

15

SCREW, PAN

98507-05040-00

$8.49

16

SCREW, PAN HEAD

98507-05055-00

Unavailable

17

SWITCH, HANDLE 3

2PP-83963-00-00

Unavailable

18

SCREW, PAN

98507-05035-00

Unavailable

19

SCREW, PAN

98507-05045-00

Unavailable

20

CLAMP(4KM)

90464-25217-00

Unavailable

21

CLAMP(2TV)

90464-10112-00

Unavailable

22

CLAMP(4FM)

90464-15195-00

Unavailable
