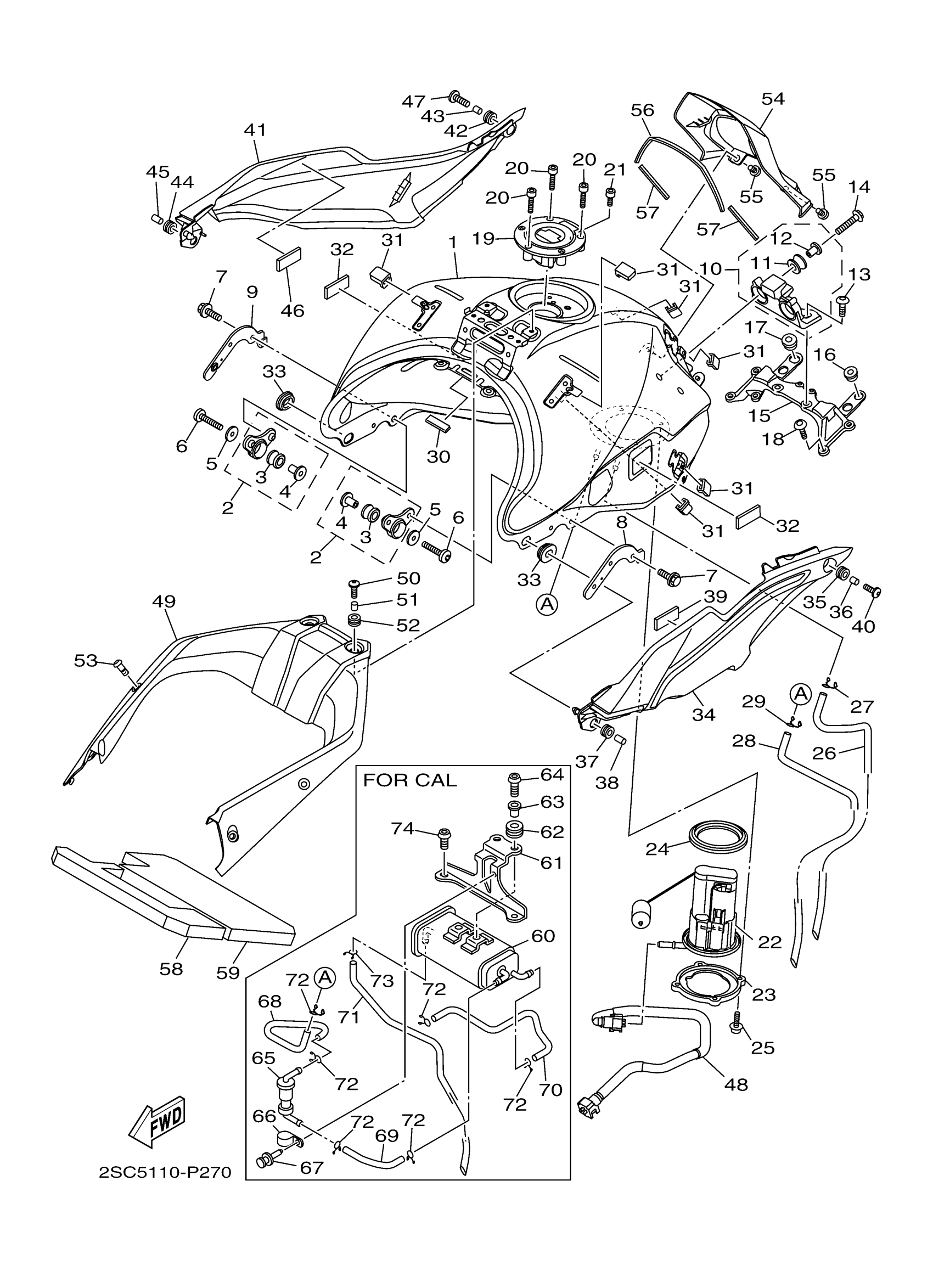

Yamaha FJ09FR (FJ09) 2SC50 2015 FUEL TANK Diagram
#
1
FUEL TANK COMP
2PP-24110-01-P0
Unavailable
2
TANK BRACKET ASSY
23P-24104-01-00
Unavailable
7
BOLT, WITH WASHER
90119-06200-00
Unavailable
8
PLATE, FITTING
2PP-2411F-00-00
Unavailable
9
HOOK TANK FITTING
2PP-2411L-00-00
Unavailable
14
BOLT, FLANGE
95817-06025-00
Unavailable
15
BRACKET, TANK FITT
2PP-2413Y-00-00
Unavailable
16
GROMMET
90480-13014-00
Unavailable
17
GROMMET(4BH)
90480-01559-00
Unavailable
18
BOLT, BUTTON
92017-06020-00
Unavailable
19
CAP ASSY
39P-24602-10-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
21
BOLT
91312-05010-00
Unavailable
22
FUEL PUMP COMP
1RC-13907-10-00
Unavailable
23
BRACKET, FUEL PUMP
1RC-24491-00-00
Unavailable
24
O-RING
1RC-24486-00-00
Unavailable
25
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
26
PIPE 5
1RC-24315-00-00
Unavailable
27
CLIP
90467-090A2-00
Unavailable
30
MOLE 3
2S3-28347-00-00
Unavailable
31
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
32
HOOK, SIDE COVER 1
2PP-2411G-00-00
Unavailable
33
GROMMET(4DN)
90480-01558-00
Unavailable
34
COVER, SIDE 1
2PP-24129-01-00
Unavailable
35
GROMMET (462)
90480-13018-00
Unavailable
36
COLLAR
90387-0611W-00
Unavailable
37
GROMMET (462)
90480-13018-00
Unavailable
38
COLLAR (J10)
90387-06026-00
Unavailable
39
HOOK, SIDE COVER 1
2PP-2411G-00-00
Unavailable
40
BOLT
90111-05007-00
Unavailable
41
COVER, SIDE 2
2PP-24139-01-00
Unavailable
42
GROMMET (462)
90480-13018-00
Unavailable
43
COLLAR
90387-0611W-00
Unavailable
44
GROMMET (462)
90480-13018-00
Unavailable
45
COLLAR (J10)
90387-06026-00
Unavailable
46
HOOK, SIDE COVER 1
2PP-2411G-00-00
Unavailable
47
BOLT
90111-05007-00
Unavailable
48
PIPE, FUEL 1
1RC-13971-11-00
Unavailable
49
COVER, TANK
2PP-241B1-00-00
Unavailable
50
BOLT
90111-05007-00
Unavailable
51
COLLAR
90387-0611W-00
Unavailable
52
GROMMET (462)
90480-13018-00
Unavailable
53
HEAD
14B-28386-00-00
Unavailable
54
PROTECTOR, FUEL TA
2PP-24141-00-00
Unavailable
55
BOLT
90111-05002-00
Unavailable
56
DAMPER, PLATE 1
2C0-2414H-00-00
Unavailable
57
DAMPER, PLATE 2
3P6-2414J-00-00
Unavailable
58
DAMPER, PLATE 1
2PP-2414H-00-00
Unavailable
59
DAMPER, PLATE 2
2PP-2414J-00-00
Unavailable
60
CANISTER ASSY
1RC-24170-00-00
Unavailable
61
BRACKET, CANISTOR
1RC-2419F-00-00
Unavailable
62
GROMMET (462)
90480-13018-00
Unavailable
63
COLLAR(42G)
90387-062L2-00
Unavailable
64
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
65
ROLL OVER VALVE ASSY
2C0-24180-00-00
Unavailable
66
CLAMP
90464-15014-00
Unavailable
67
RIVET(52W)
90269-05049-00
Unavailable
68
PIPE 2
1RC-24312-00-00
Unavailable
69
PIPE 3
1RC-24313-00-00
Unavailable
70
PIPE 4
1RC-24314-00-00
Unavailable
71
PIPE 10
1RC-24321-00-00
Unavailable
72
CLIP
90467-090A2-00
Unavailable
73
CLIP
90467-100A1-00
Unavailable
74
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
