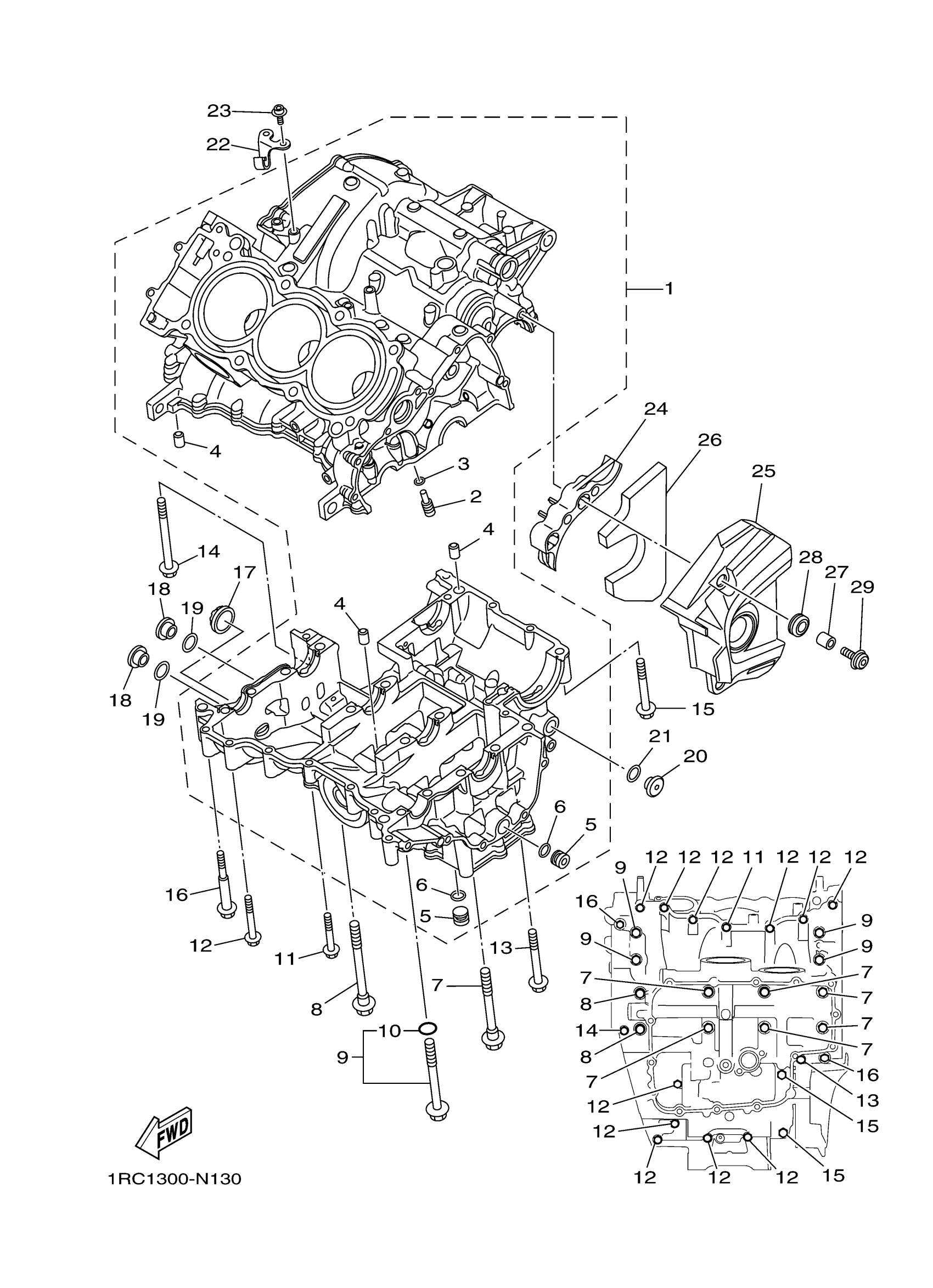

Yamaha FJ09FR (FJ09) 2SC50 2015 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

1RC-15100-07-00

$2,583.99

2

NOZZLE 3

5EB-15155-00-00

$14.49

3

O-RING (210)

93210-04092-00

$3.76

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

PLUG

90338-16262-00

$14.99

6

O-RING(3LD)

93210-12790-00

$7.49

7

BOLT, WITH WASHER

90119-09013-00

$12.49

8

BOLT, WITH WASHER

90119-09010-00

$13.49

9

BOLT, CRANKCASE JOURNAL

23P-15156-00-00

$10.99

10

O-RING (11M)

93210-07540-00

$7.49

11

BOLT, FLANGE

95817-06040-00

$5.60

12

BOLT, FLANGE

95812-06050-00

$1.86

13

BOLT, FLANGE

95812-06065-00

Unavailable

14

BOLT, FLANGE

90105-06202-00

$1.91

15

BOLT, FLANGE

95817-08060-00

$3.76

16

BOLT

90109-06100-00

Unavailable

17

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

18

PLUG

36Y-15189-01-00

Unavailable

19

O-RING(1L9)

93210-16325-00

Unavailable

20

PLUG, STRAIGHT SCREW

90340-14011-00

Unavailable

21

O-RING (2H9)

93210-14369-00

Unavailable

22

HOLDER, CLUTCH CABLE

1RC-15441-00-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable

24

GUIDE, INLET

1RC-15377-00-00

Unavailable

25

COVER, CHAIN CASE

1RC-15418-00-00

Unavailable

26

DAMPER 5

1RC-15338-00-00

Unavailable

27

COLLAR

90387-06286-00

Unavailable

28

GROMMET (462)

90480-13018-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-06130-00

Unavailable
