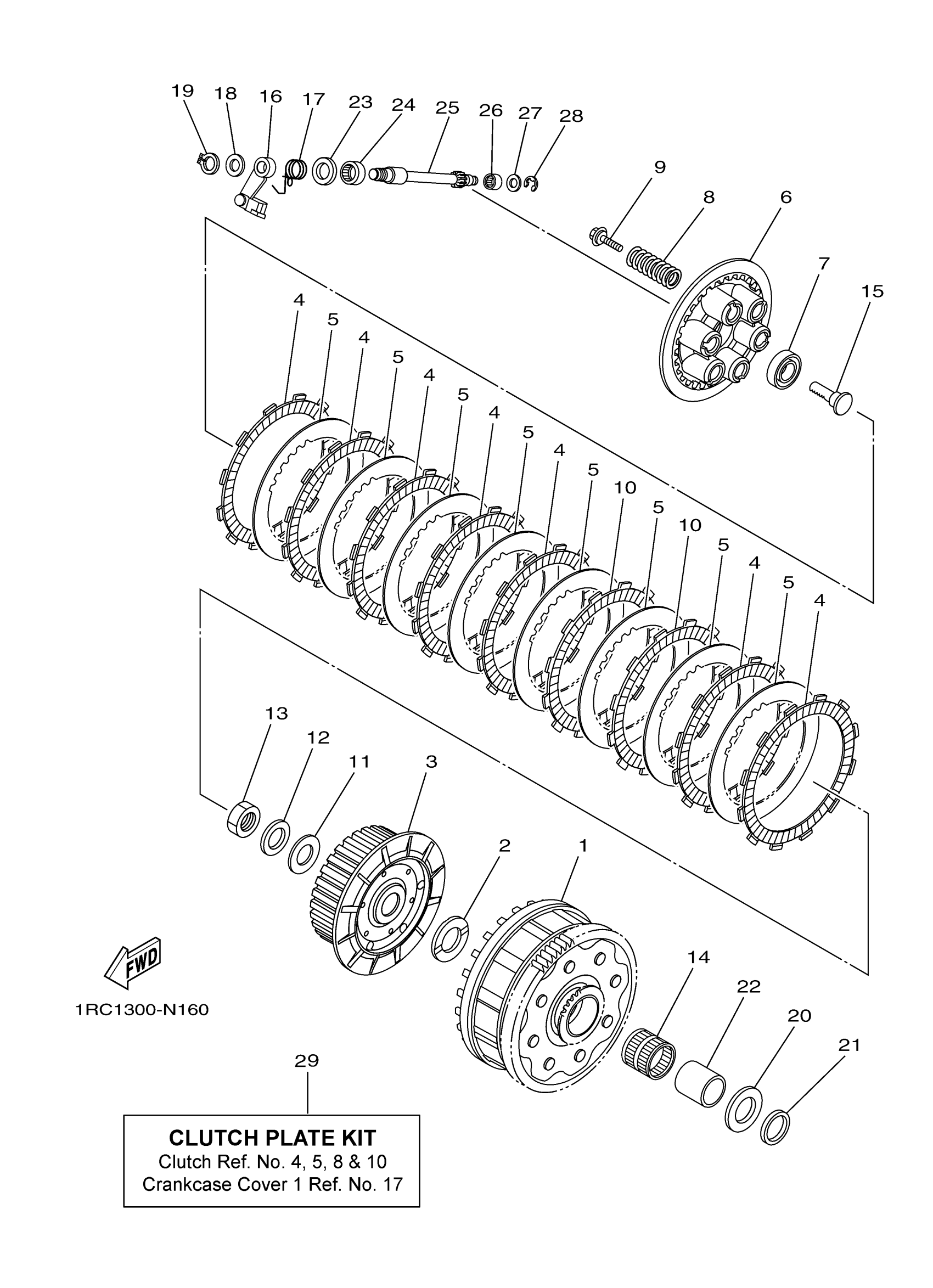

Yamaha FJ09FR (FJ09) 2SC50 2015 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

B7N-16150-00-00

$481.99

2

PLATE, THRUST 1

5VY-16154-00-00

$17.49

3

BOSS, CLUTCH

1RC-16371-00-00

$102.99

4

PLATE, FRICTION

5TA-16321-00-00

$25.99

5

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

6

PLATE, PRESSURE 1

5VY-16351-10-00

Unavailable

7

BEARING(2JN)

93306-00315-00

$33.99

8

SPRING, COMPRESSION

90501-230A0-00

$10.49

9

BOLT, WITH WASHER

90119-06257-00

$8.49

10

PLATE, FRICTION 2

1RC-16330-00-00

$41.99

11

WASHER, PLATE

90201-20030-00

$7.49

12

WASHER, CONICAL SPRING

90208-20001-00

$18.99

13

NUT

90179-20020-00

Unavailable

14

BEARING

93310-33277-00

Unavailable

15

ROD, PUSH 1

4XV-16356-01-00

$58.99

16

PUSH LEVER ASSY

1RC-16340-00-00

Unavailable

17

SPRING, TORSION

90508-18051-00

Unavailable

18

WASHER, PLATE

90201-10029-00

Unavailable

19

CIRCLIP(10W)

99009-10400-00

Unavailable

20

PLATE, THRUST 2

5VY-16164-00-00

Unavailable

21

PLATE, THRUST 2

2C0-16164-00-00

Unavailable

22

SPACER 1

1RC-16181-00-00

Unavailable

23

OIL SEAL (3X3)

93102-15212-00

Unavailable

24

BEARING

93315-21570-00

Unavailable

25

AXLE, PUSH LEVER

5VY-16382-10-00

Unavailable

26

BEARING

93317-11096-00

Unavailable

27

WASHER(6TA)

92907-08600-00

Unavailable

28

CIRCLIP

99080-07600-00

Unavailable

29

CLUTCH KIT

1RC-W001G-00-00

Unavailable
