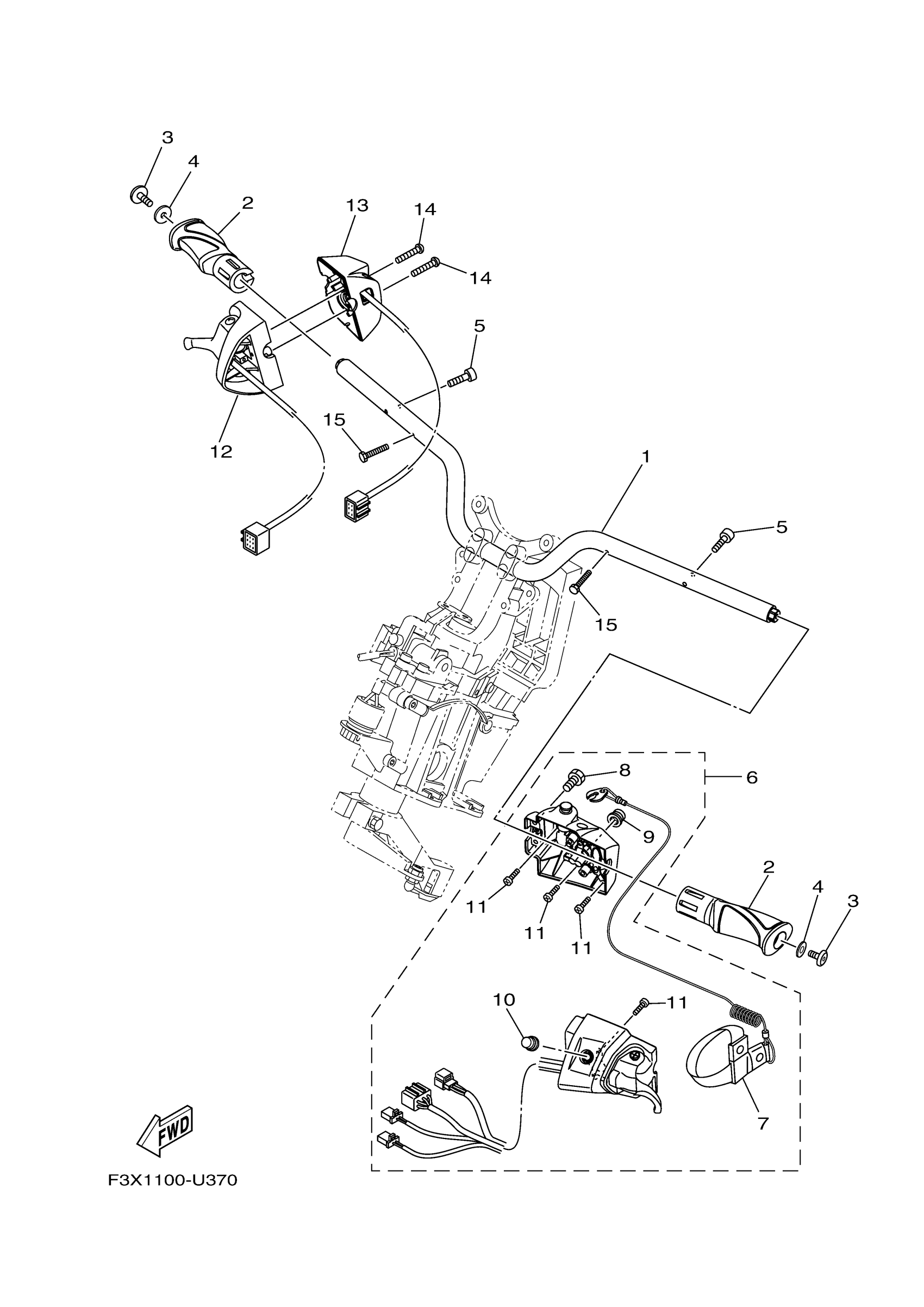

Yamaha FC1800W (FX SVHO) F3X8 2021 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F3J-U1552-00-00

$142.41

2

GRIP,HANDLE

F2S-U155D-03-00

$21.08

3

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.70

4

WASHER, PLATE

90201-068G0-00

$0.93

5

BOLT

F2S-U1516-00-00

$2.80

6

SWITCH BOX ASSY

F3X-68310-03-00

Unavailable

7

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

8

BOLT, THROTTLE

6CS-6725F-00-00

$4.44

9

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

10

. START BUTTON COMP

FK7-68313-02-00

$11.31

11

. SCREW, TAPPING

97780-30610-00

$1.26

12

THROTTLE LEVER COMP

6CS-14305-13-00

$690.89

13

SWITCH ASSY

F3X-81860-00-00

$195.44

14

BOLT, THROTTLE

6CS-6725F-00-00

$4.44

15

BOLT

91380-04030-00

$0.91
