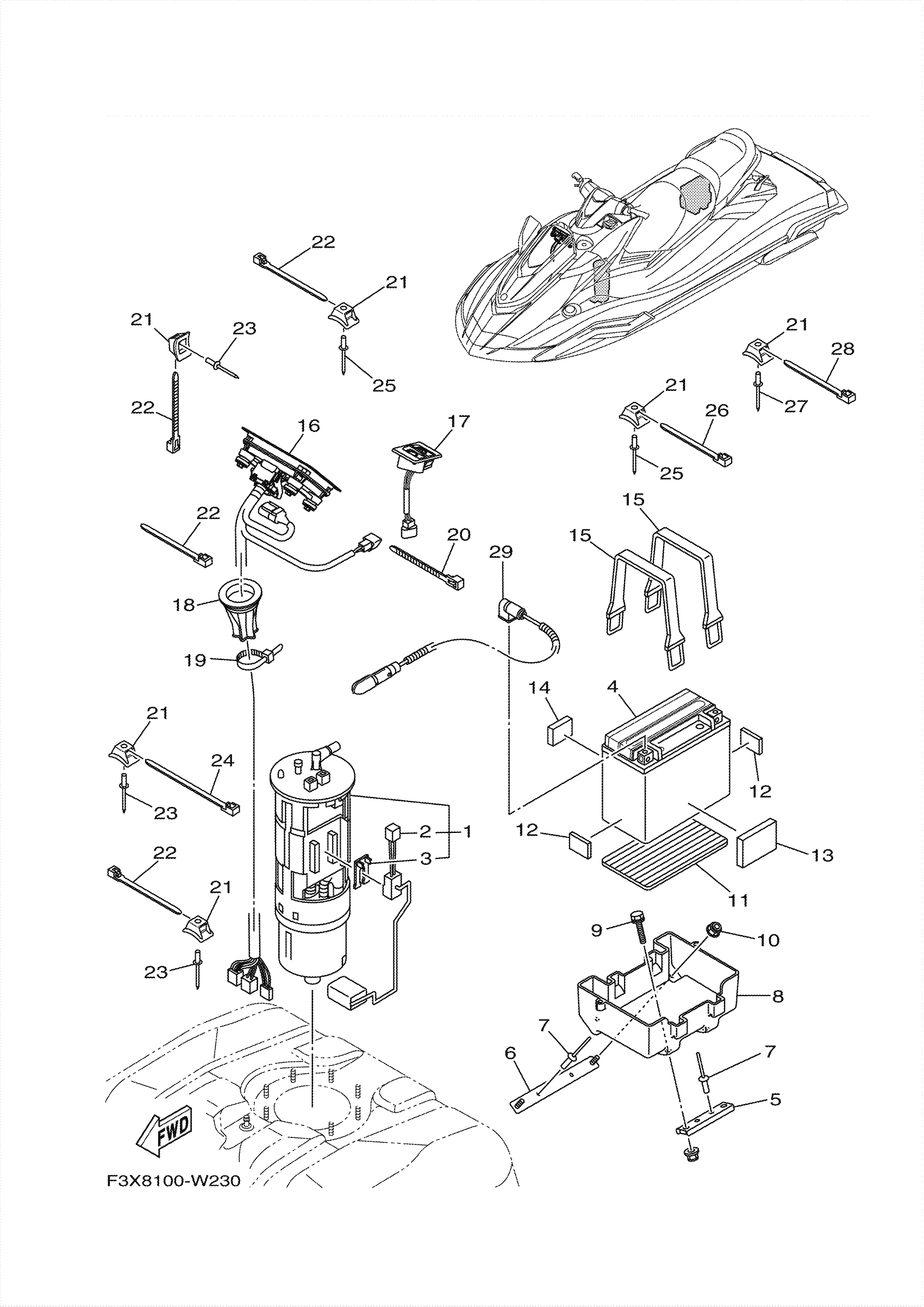

Yamaha FC1800W (FX SVHO) F3X8 2021 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

Unavailable

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

Unavailable

4

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

5

PLATE, BASE 2

F2S-U8592-00-00

Unavailable

6

PLATE, BASE 3

F2S-U8593-00-00

Unavailable

7

RIVET (EU0)

90267-48938-00

Unavailable

8

CASE, BATTERY

F2S-U8211-00-00

Unavailable

9

BOLT, WITH WASHER

90119-06820-00

Unavailable

10

NUT, LOCK

F2N-U142L-00-00

Unavailable

11

PAD, BATTERY

F1S-U8221-00-00

Unavailable

12

PAD, BATTERY

EU0-U8221-31-00

$2.99

13

MAT 2

F1W-U759C-01-00

Unavailable

14

PACKING

F2C-U1743-00-00

Unavailable

15

BAND, BATTERY 1

F4P-U821D-00-00

Unavailable

16

METER ASSY

F3X-U822A-09-00

Unavailable

17

SWITCH ASSY.

F3X-68090-00-00

Unavailable

18

GROMMET

F3J-U822E-01-00

Unavailable

19

CLAMP

90464-32801-00

Unavailable

20

CLAMP

90464-32801-00

Unavailable

21

BASE, CLAMP

F1W-U828M-00-00

Unavailable

22

CLAMP

90464-32801-00

Unavailable

23

RIVET, BLIND

90267-48806-00

Unavailable

24

CLAMP

90464-99804-00

Unavailable

25

RIVET, BLIND

90267-48806-00

Unavailable

26

CLAMP

90464-32801-00

Unavailable

27

RIVET, BLIND

90267-48806-00

Unavailable

28

CLAMP

90464-32801-00

Unavailable

29

WIRE, MINUS LEAD

6JP-82116-00-00

Unavailable
