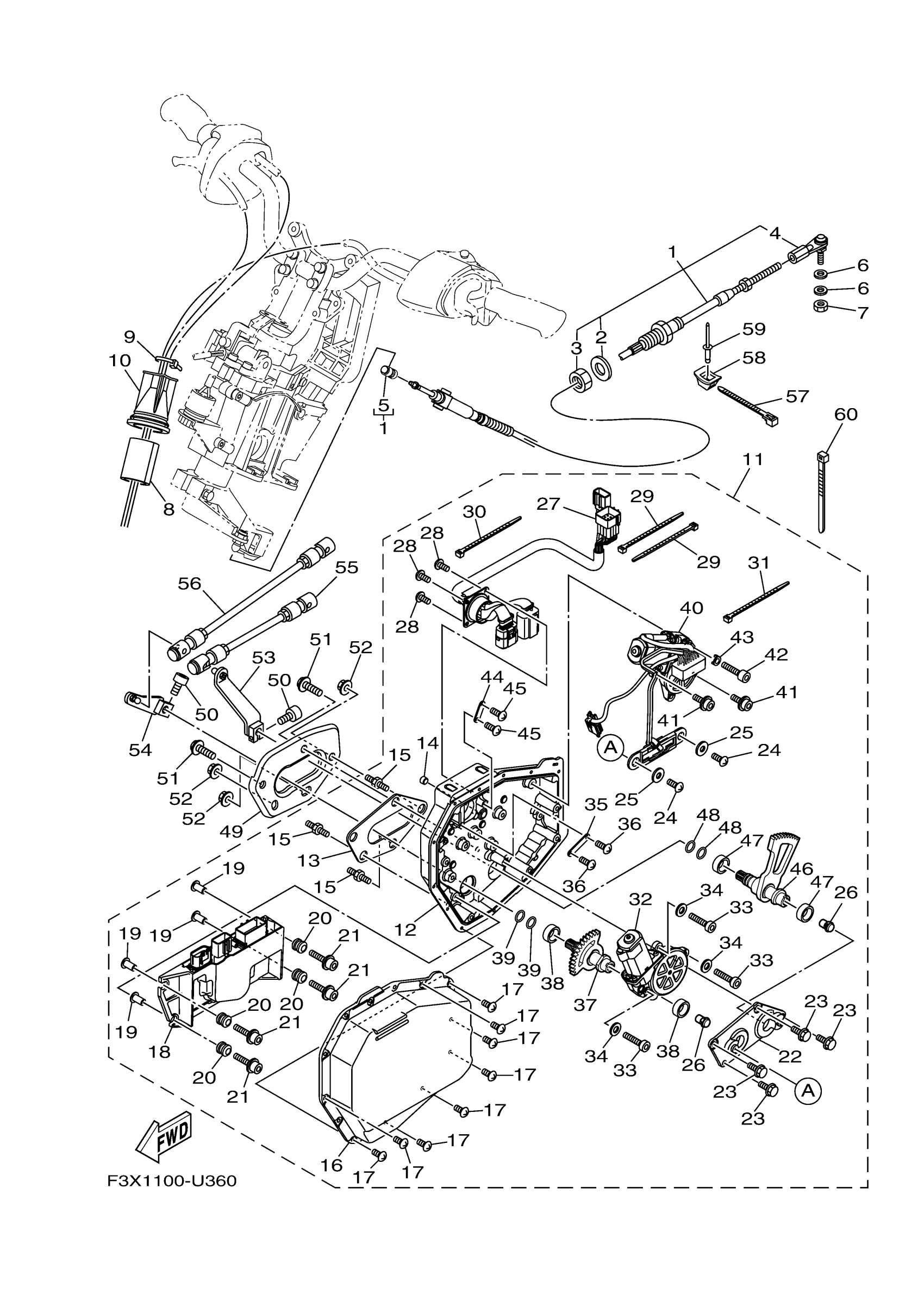

Yamaha FC1800W (FX SVHO) F3X8 2021 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F1S-61481-12-00

$284.39

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.01

8

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

9

CLAMP

90464-32801-00

$1.23

10

GROMMET

F3J-U822E-01-00

$5.59

11

MOTOR ASSY.

F3X-6140B-04-00

$1,587.86

12

. HOUSING

F3J-6152K-00-00

$177.26

13

. SEAL

F3J-63262-00-00

$18.49

14

. PLUG

F3J-613D0-00-00

$11.99

15

. BOLT, STUD

F3J-67369-00-00

$6.36

16

. COVER

F3J-6143J-00-00

$50.99

17

. SCREW

F3J-68198-00-00

$2.95

18

. CONTROL UNIT

F3X-68197-01-00

$636.35

19

. COLLAR

90387-06119-00

$4.37

20

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

21

. BOLT

F3J-613B4-20-00

$4.55

22

. PLATE

F3J-61256-00-00

$29.99

23

. BOLT, HEXAGON

F3J-613B3-00-00

$3.64

24

. SCREW

F3J-68198-20-00

$3.64

25

. WASHER, PLAIN

F3J-613C3-10-00

$3.70

26

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

27

. WIRE HARNESS ASSY

F3J-68270-01-00

$363.62

28

. SCREW

F3J-68198-00-00

$2.95

29

. CLAMP, WIRE

F3J-68273-00-00

$3.18

30

. CLAMP, WIRE

F3J-68273-00-00

$3.18

31

. CLAMP, WIRE

F3J-68273-00-00

$3.18

32

. MOTOR

F3J-68352-01-00

$275.74

33

. BOLT

F3J-613B4-00-00

$4.55

34

. WASHER, PLAIN

F3J-613C3-00-00

$3.64

35

. PLATE

F3J-61348-00-00

$4.55

36

. SCREW

F3J-68198-20-00

$3.64

37

. SHAFT, 1

F3J-60221-00-00

$175.74

38

. BUSH

F3J-61344-00-00

$3.33

39

. O-RING

F3J-613A5-00-00

$2.95

40

. MOTOR

F3J-68352-11-00

$369.68

41

. BOLT

F3J-613B4-10-00

$2.19

42

. BOLT

F3J-613B4-00-00

$4.55

43

. SPACER

F3J-61492-00-00

$7.27

44

. PLATE

F3J-61348-10-00

$4.55

45

. SCREW

F3J-68198-20-00

$3.64

46

. SHAFT, 2

F3J-60222-00-00

$168.17

47

. BUSH

F3J-61344-00-00

$3.33

48

. O-RING

F3J-613A5-00-00

$2.95

49

PLATE

F3Y-U8285-00-00

$15.14

50

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

51

BOLT, WITH WASHER

90119-08852-00

$3.79

52

NUT, LOCK

F3Y-U142L-00-00

$2.52

53

TRIM ARM ASSY

F3J-6150E-00-00

$78.77

54

SHIFT ARM ASSY

F3J-6150F-00-00

$68.17

55

ROD ASSY

F3J-6150A-00-00

$56.05

56

ROD ASSY 2

F3J-6150D-00-00

$38.52

57

CLAMP

90464-32801-00

$1.23

58

BASE, CLAMP

F1W-U828M-00-00

$1.23

59

RIVET, BLIND

90267-48802-00

$1.98

60

CLAMP

90464-32801-00

$1.23
