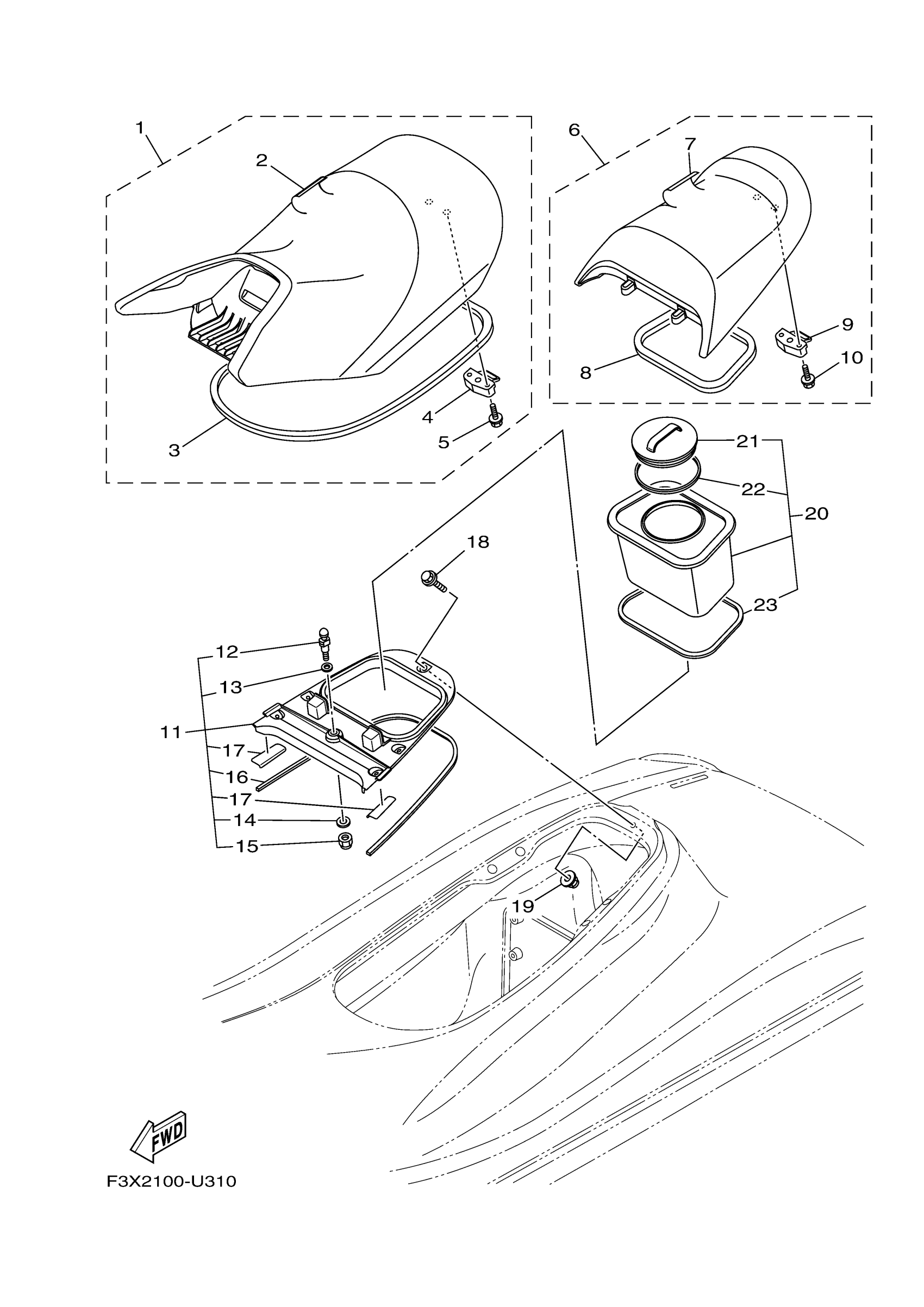

Yamaha FC1800V (FX SVHO) F3X5 2020 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F3X-U371A-61-00

$314.91

2

. COVER, SEAT 1

F3X-U371B-60-00

$176.10

3

. PACKING

F3X-U2664-01-00

$64.16

4

. SEAT LOCK ASSY

F2C-U3850-00-00

$24.39

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F3X-U372A-60-00

$180.58

7

. COVER, SEAT

F3X-U372B-60-00

$137.30

8

. PACKING 5

F3X-U266D-01-00

$53.72

9

. SEAT LOCK ASSY

F2C-U3850-00-00

$24.39

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

DECK BEAM ASSY

F2S-U890L-05-00

$52.22

12

PIN

GH1-U3774-00-00

$20.81

13

WASHER, PLATE

90201-109U6-00

$3.43

14

WASHER

9299R-10200-00

$1.72

15

NUT, NYLON

9572R-10300-00

$3.52

16

. PACKING 1

F2S-U375E-00-00

$4.18

17

. PACKING

F2S-U8244-00-00

$1.49

18

BOLT, WITH WASHER

90119-08828-00

$2.44

19

NUT, LOCK

F3Y-U142L-00-00

$2.66

20

CASE,ASSY 1

F2C-U591A-03-00

$46.25

21

. CAP,CASE

F2C-U591C-00-00

$5.96

22

. PACKING,CASE

F2C-U591D-01-00

$1.72

23

. PACKING,6

F2C-U266E-00-00

$15.07
