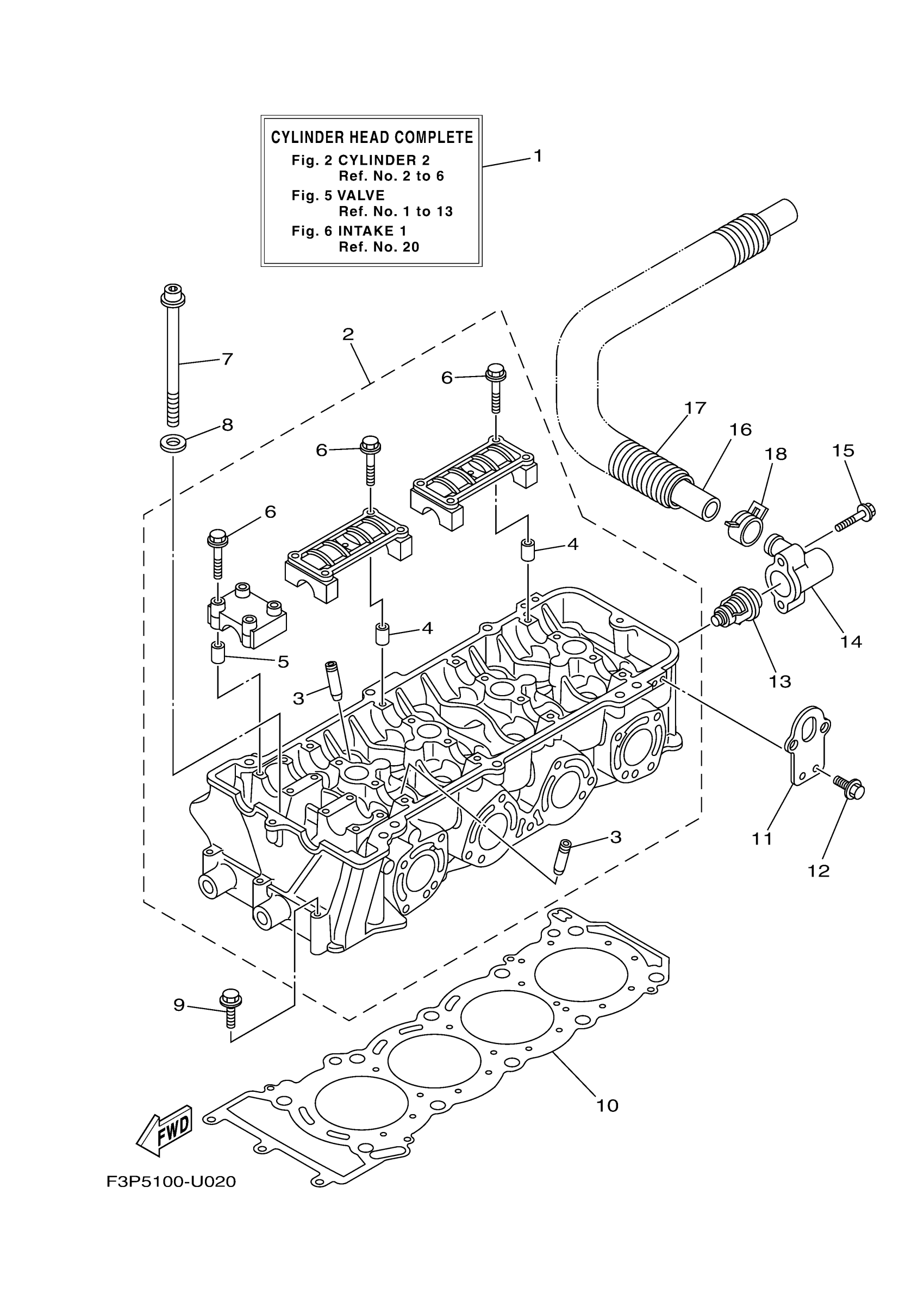

Yamaha FC1800V (FX SVHO) F3X5 2020 CYLINDER 2 Diagram

#

Description
Price

1

CYLINDER HEAD COMPLETE

99999-04503-00

Unavailable

2

CYLINDER HEAD ASSY

6S5-11102-20-00

$1,658.20

3

. GUIDE, VALVE 1

6S5-11133-10-00

$43.67

4

. PIN, DOWEL

91809-16002-00

$2.27

5

. PIN, DOWEL

91809-16002-00

$2.27

6

. BOLT, FLANGE

90105-07009-00

$2.95

7

BOLT

6S5-12228-01-00

$18.93

8

WASHER, PLATE

90201-12039-00

$2.95

9

BOLT, WITH WASHER

97513-06555-00

$2.80

10

GASKET, CYLINDER HEAD 1

6JC-11181-00-00

$119.63

11

HANGER, ENGINE 2

6BH-1111E-00-00

$23.47

12

BOLT, WITH WASHER

90119-06078-00

$2.27

13

THERMOSTAT

6D3-12411-00-00

$95.40

14

COVER, THERMOSTAT

6BH-12413-00-00

$39.38

15

BOLT, FLANGE

90105-06035-00

$2.27

16

HOSE 3

6S5-12578-00-00

$62.11

17

TUBE (L850)

90447-28008-00

$18.49

18

CLIP

90467-240A0-00

$6.82
