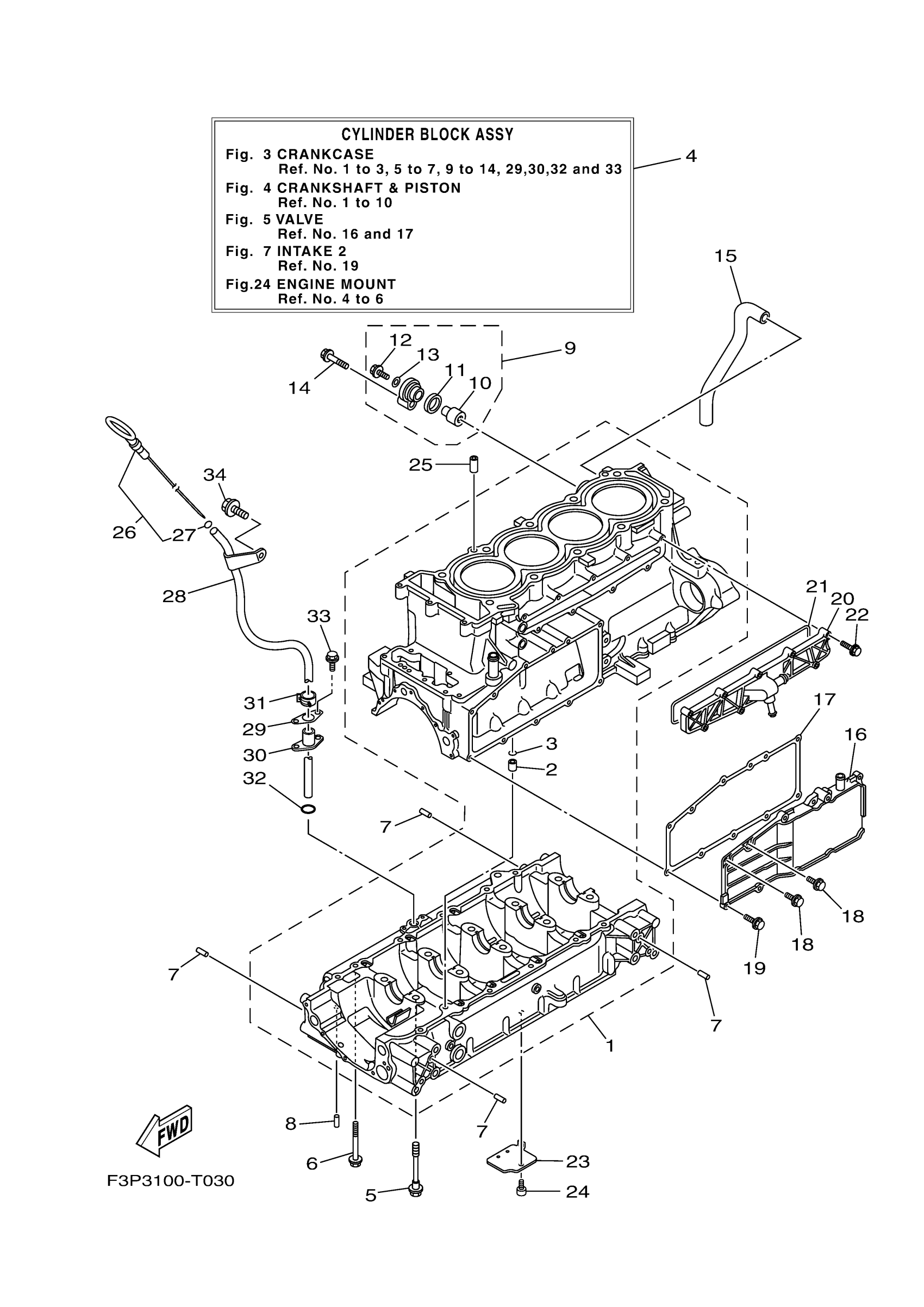

Yamaha FC1800V (FX SVHO) F3X5 2020 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

6CS-15100-20-00

$3,969.68

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

O-RING (4G0)

93210-11453-00

$5.47

4

CYLINDER BLOCK ASSY

6CS-W009B-21-94

$4,857.56

5

. BOLT, FLANGE

90105-10071-00

$10.49

6

BOLT, FLANGE(3JP)

95814-06070-00

$5.75

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

PIN, DOWEL

93604-10M03-00

$3.86

9

ANODE COVER ASSY

69J-11301-11-00

$17.37

10

. ANODE

68V-11325-02-00

$16.45

11

GROMMET, ANODE

67F-11328-01-00

$3.50

12

BOLT (689)

90105-06M07-00

$1.82

13

. GASKET

90430-06M03-00

$2.80

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

$1.86

15

HOSE

6S5-11377-00-00

$40.89

16

COVER

6S5-1131M-10-8P

$142.41

17

. GASKET

6BH-13557-00-00

$27.78

18

BOLT, FLANGE

95024-06014-00

Unavailable

19

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

20

JOINT 1

6CS-12469-A0-00

$60.91

21

. GASKET, WATER INLET

6CS-12517-00-00

$15.55

22

BOLT, FLANGE

95814-06035-00

Unavailable

23

PLATE, BAFFLE LOWER

6S5-13337-10-00

$3.64

24

BOLT,SOCKET

91317-06012-00

Unavailable

25

PIN, DOWEL(3VD)

99530-10114-00

$2.13

26

PLUG, OIL LEVEL

6ET-15362-00-00

$48.47

27

O-RING (26H)

93210-06632-00

Unavailable

28

PIPE, OIL LEVEL

6CS-8572F-00-00

$75.86

29

. PLATE

6BH-1319K-00-00

$7.77

30

SPACER

6CS-85516-00-00

$23.67

31

. CLIP

90467-150A1-00

$3.33

32

. O-RING

93210-12016-00

$2.57

33

BOLT

90109-06268-00

$2.80

34

BOLT, WASHER BASED

90105-08021-00

Unavailable
