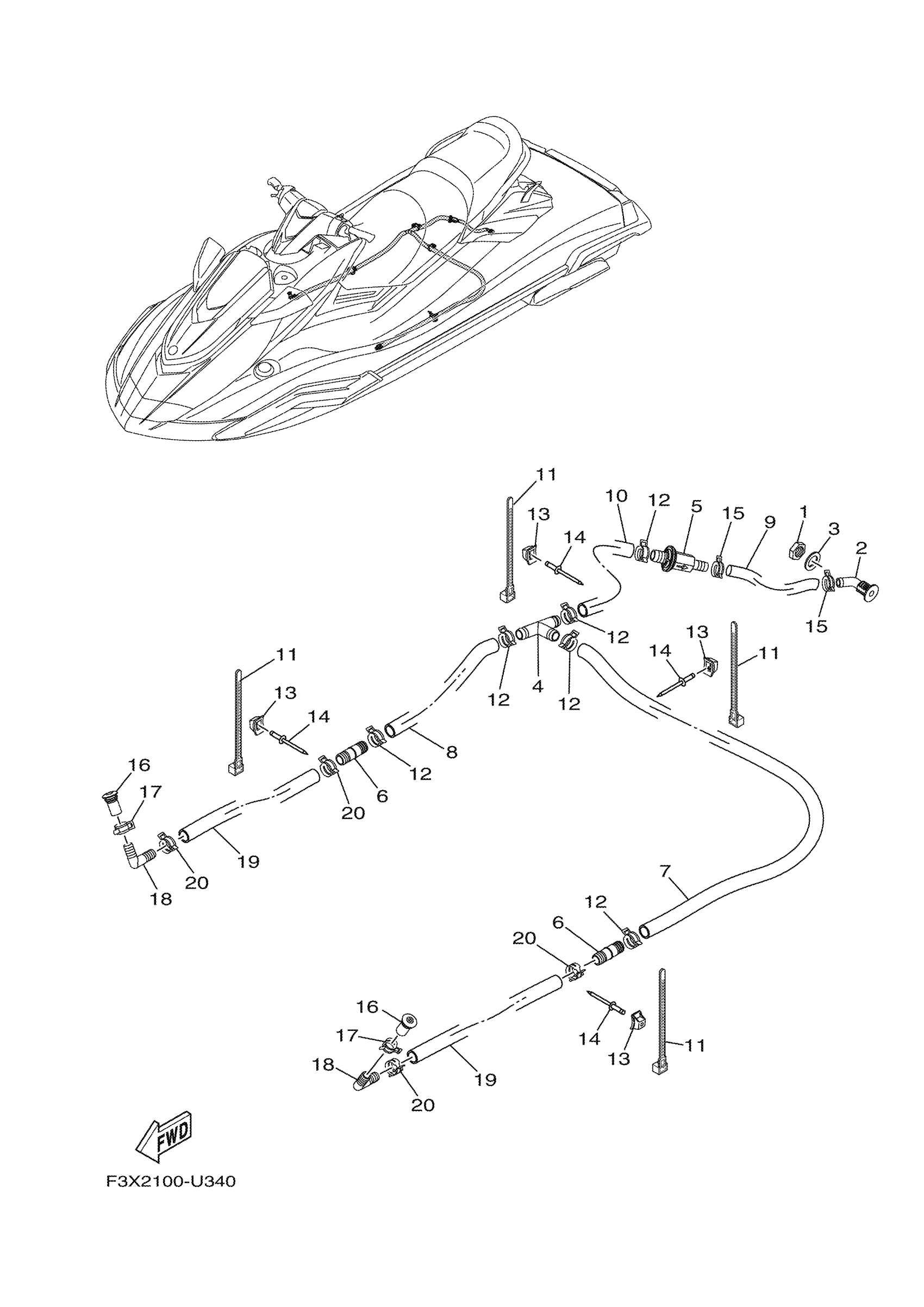

Yamaha FC1800V (FX SVHO) F3X5 2020 BILGE PUMP Diagram

#

Description

Price

1

NUT, DRAIN 1

F3X-U224B-00-00

Unavailable

2

BODY, DRAIN 1

F3X-U224C-00-00

Unavailable

3

GASKET

F3X-U7564-00-00

Unavailable

4

JOINT,HOSE

F3X-U7857-00-00

Unavailable

5

CHECK VALVE

F3X-U7767-00-00

Unavailable

6

JOINT, DRAIN

F3X-U7617-00-00

Unavailable

7

HOSE, DRAIN 2

F3X-U7629-00-00

Unavailable

8

HOSE, DRAIN

F3X-U2249-00-00

Unavailable

9

HOSE, DRAIN 3

F3X-U7628-00-00

Unavailable

10

HOSE 1

F3X-U7626-00-00

Unavailable

11

CLAMP

90464-32801-00

Unavailable

12

CLIP

90467-190A2-00

Unavailable

13

BASE, CLAMP

F1W-U828M-00-00

Unavailable

14

RIVET, BLIND

90267-48802-00

Unavailable

15

CLIP

90467-17802-00

Unavailable

16

PLUG,DRAIN

F3X-U2255-00-00

Unavailable

17

CLIP

90467-150A5-00

Unavailable

18

CONNECTOR

F3X-U8377-00-00

Unavailable

19

HOSE, DRAIN

F3X-U2249-00-00

Unavailable

20

CLIP

90467-190A2-00

Unavailable
