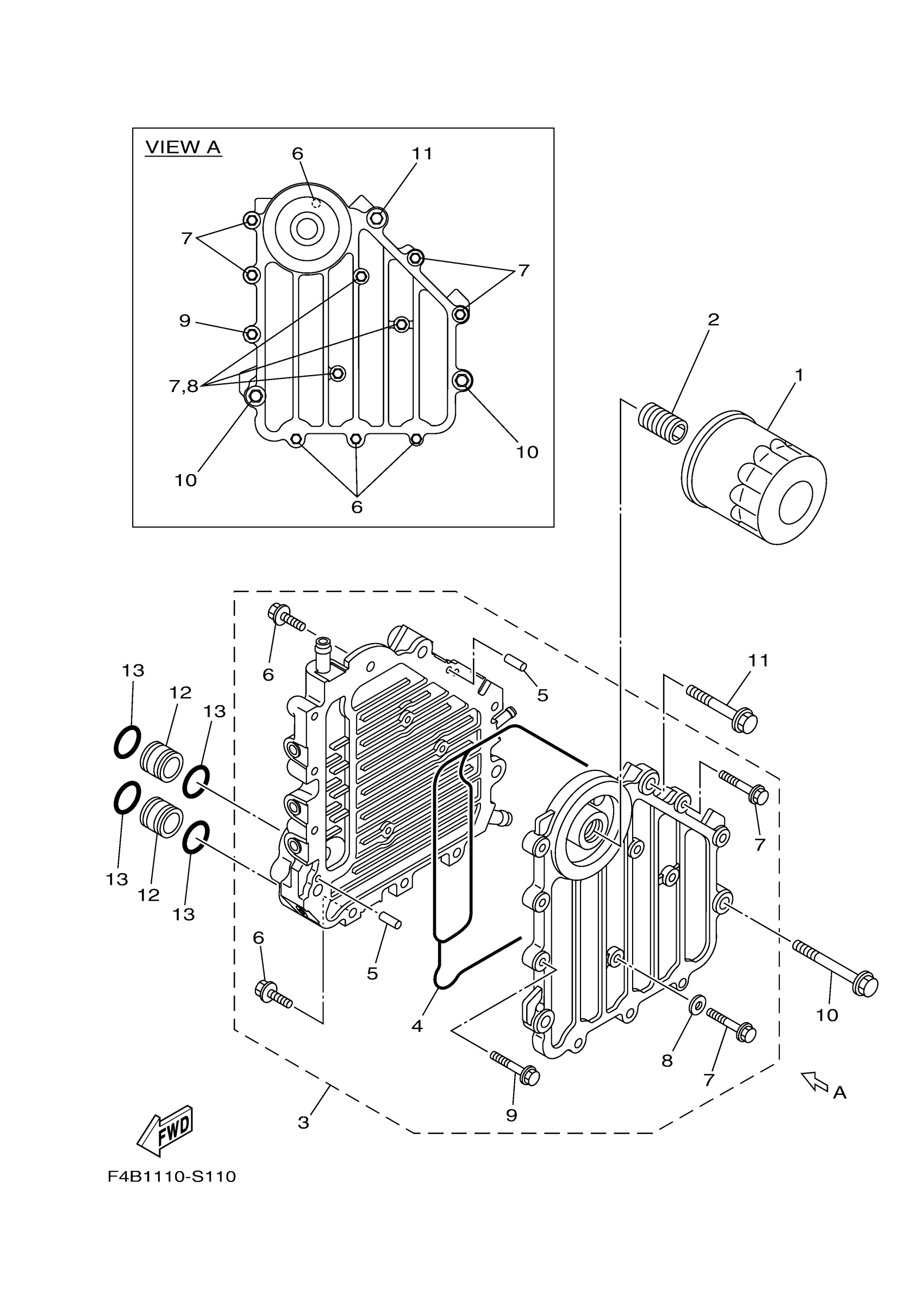

Yamaha FC1800U (FX SVHO) F3X2 2019 OIL COOLER Diagram

#

Description
Price

1

ELEMENT ASSY, OIL CLEANER

69J-13440-05-00

Unavailable

2

BOLT, UNION

6S5-12858-00-00

$19.68

3

OIL COOLER ASSY

6BH-13470-30-00

$956.05

4

. GASKET, MANIFOLD

6BH-13556-00-00

$19.63

5

PIN, DOWEL

93604-10M03-00

$3.86

6

. BOLT, FLANGE

90105-06184-00

$1.74

7

. BOLT, FLANGE

90105-06185-00

$1.82

8

. GASKET

90430-06232-00

$1.35

9

BOLT, FLANGE

90105-08054-00

$6.18

10

BOLT, FLANGE

90105-08169-00

$2.80

11

BOLT, FLANGE

90105-08170-00

$2.72

12

CONNECTOR

60E-13446-00-00

$14.44

13

O-RING (1L9)

93210-18322-00

$4.24
