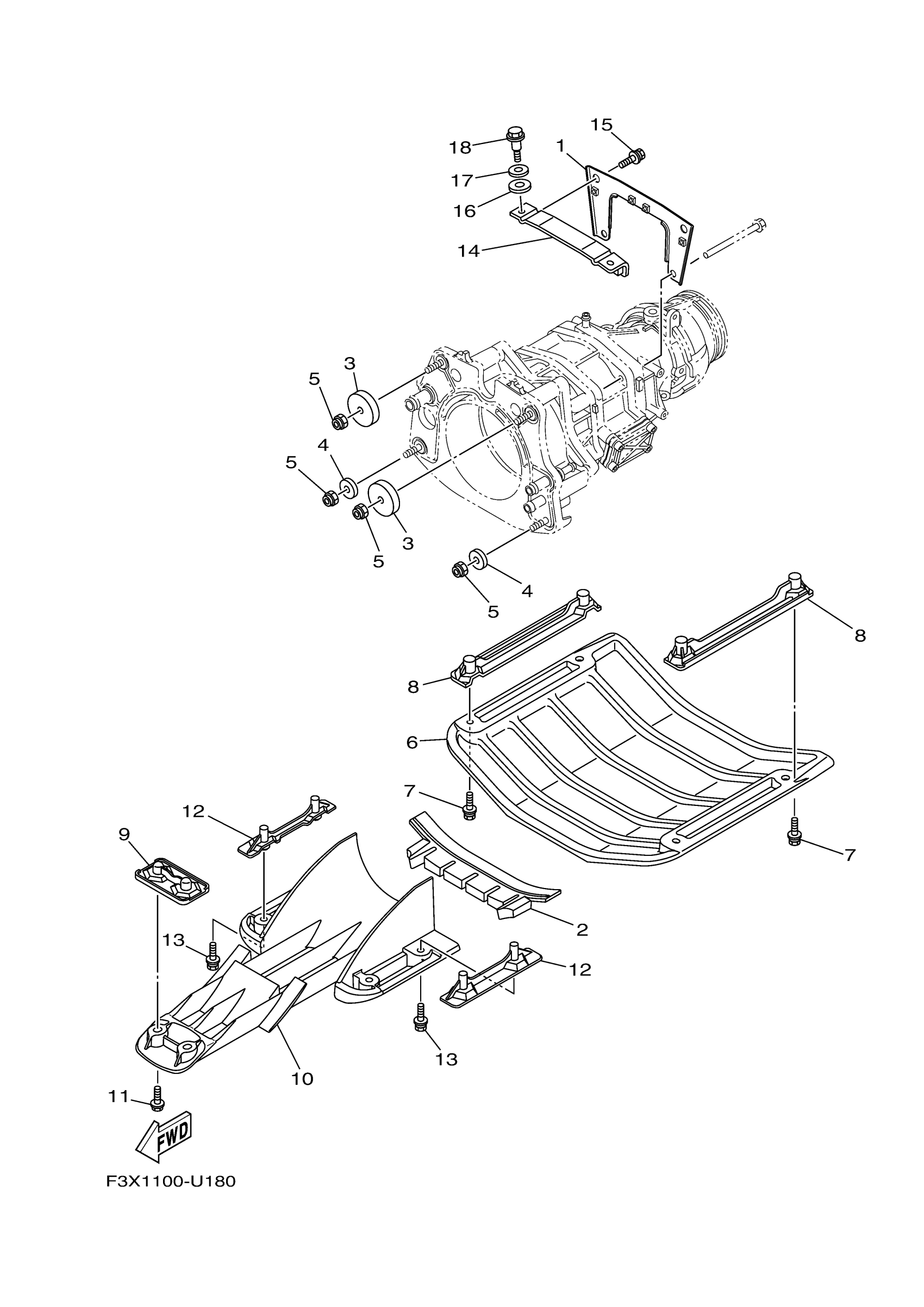

Yamaha FC1800U (FX SVHO) F3X2 2019 JET UNIT 4 Diagram

#

Description
Price

1

BRACKET

6EY-R1959-00-00

$14.35

2

SPACER

F2S-U72C0-01-00

$15.07

3

WASHER

F1S-U725E-01-00

$7.89

4

WASHER, PLATE

90201-10801-00

$3.52

5

NUT, NYLON

9572R-10300-00

$3.37

6

PLATE 2

F3X-U273B-01-00

$121.20

7

BOLT, WITH WASHER

90119-08829-00

$3.88

8

BRACKET 2

F1B-U8572-01-00

$15.14

9

BRACKET, 3

F2S-U8577-00-00

$15.07

10

SCREEN, INTAKE

6ET-R1333-00-00

$113.62

11

BOLT, WITH WASHER

90119-08829-00

$3.88

12

BRACKET 1

F1G-U8571-02-00

$15.07

13

BOLT, WITH WASHER

90119-08829-00

$3.88

14

BRACKET

F2C-U7557-01-00

$30.29

15

BOLT, WITH WASHER

90119-08800-00

$4.09

16

GASKET

90430-12002-00

$1.81

17

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

18

BOLT

90109-08043-00

$4.09
