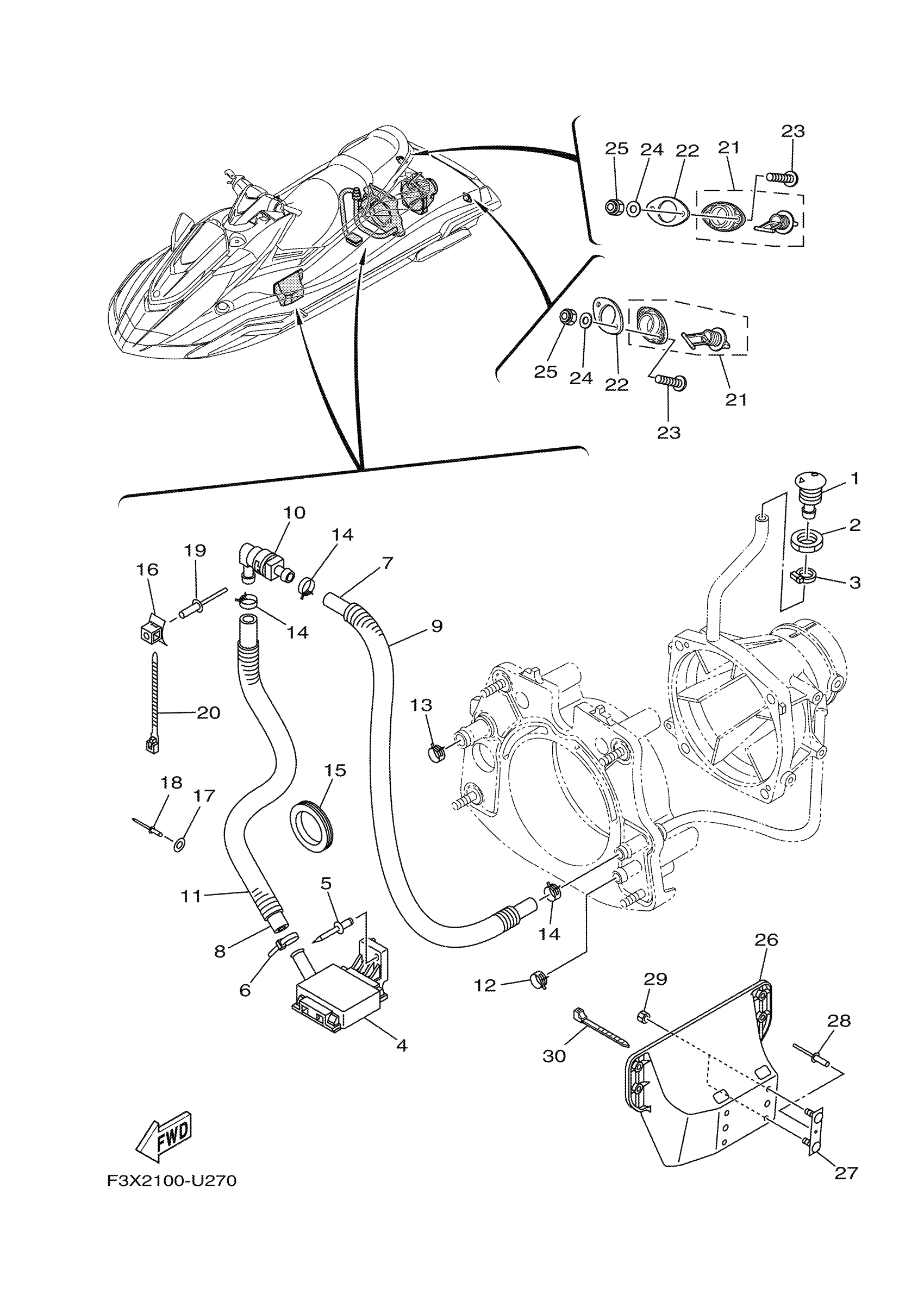

Yamaha FC1800U (FX SVHO) F3X2 2019 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

STRAINER, BILGE

F1B-U761D-02-00

$5.15

5

RIVET, BLIND

90267-489U8-00

$0.99

6

BAND

90601-200U1-00

$2.77

7

HOSE (L860)

90445-20804-00

$12.86

8

HOSE (L500)

90445-20800-00

$12.86

9

HOSE

90446-27M73-00

$18.83

10

JOINT, HOSE

68N-5112T-00-00

$48.96

11

HOSE(63M)

90446-27M55-00

$14.36

12

CLIP

90467-200A3-00

$5.92

13

CLIP

90467-240A3-00

$2.69

14

CLIP

90467-190A2-00

$3.18

15

GROMMET

F4F-U1338-00-00

$3.64

16

BASE, CLAMP

F1W-U828M-00-00

$1.23

17

WASHER

9299R-05200-00

$3.16

18

RIVET, BLIND

90267-489U6-00

$1.37

19

RIVET, BLIND

90267-48802-00

$1.98

20

CLAMP

90464-32801-00

$1.23

21

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

22

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

23

SCREW, PAN HEAD

9788R-05025-00

$2.52

24

WASHER

9299R-05200-00

$3.16

25

NUT, FLANGE

9572R-05300-00

$1.43

26

BRACKET 2

F1W-U8572-01-00

$48.47

27

BRACKET

F1K-U826C-03-00

$12.86

28

RIVET (EU0)

90267-48938-00

$5.00

29

NUT, LOCK

F3Y-U142L-00-00

$2.52

30

CLAMP

90464-32801-00

$1.23
