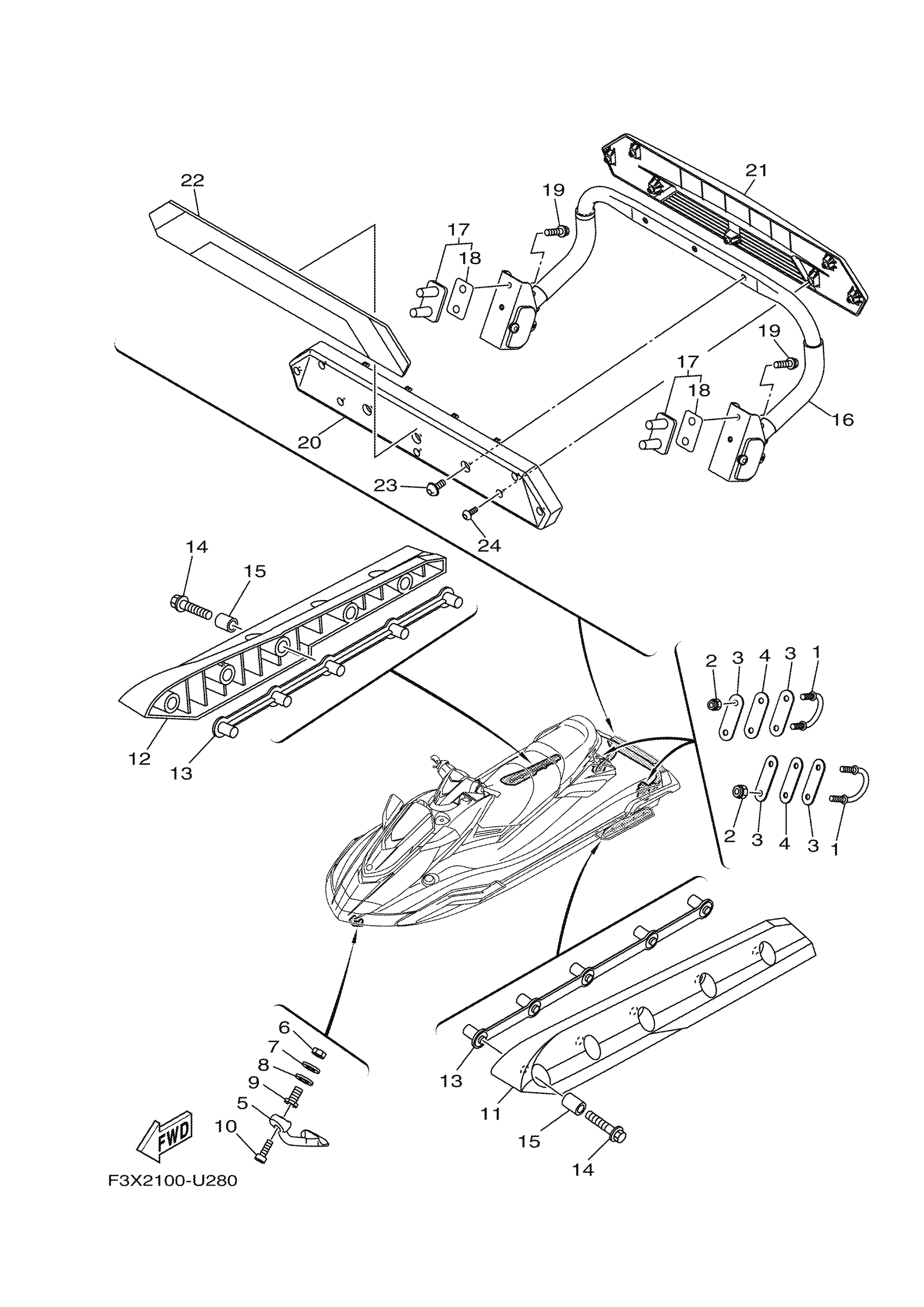

Yamaha FC1800U (FX SVHO) F3X2 2019 HULL & DECK 2 Diagram

#

Description
Price

1

STERN EYE

F2N-U1628-02-00

$5.17

2

NUT, NYLON (6J8)

95780-08300-00

$10.09

3

PLATE A

GP7-U4953-10-00

$3.65

4

PACKING

F1B-U1653-03-00

$2.00

5

BOW EYE 1

F1K-61624-00-00

$43.69

6

NUT.HEX.(COARS)

99780-12600-00

$3.09

7

YBS66-12 WASHER,PLAIN

92990-12200-00

$5.75

8

WASHER

F0X-61637-00-00

$1.32

9

NUT

F0X-61652-01-00

$11.75

10

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.09

11

STABILIZER LH

F1S-U883N-01-00

$32.34

12

STABILIZER RH

F1S-U883P-01-00

$32.34

13

BRACKET,STABILIZER

F1X-U883T-02-00

$42.63

14

BOLT,WASHER BASED

90105-088F9-00

Unavailable

15

SPACER

F2N-U8169-10-00

$1.23

16

LADDER, STEP ASSY

F3X-U278A-00-00

$205.42

17

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

18

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

19

BOLT, WITH WASHER

90119-08844-00

$1.37

20

STEP

F3X-U882F-02-00

Unavailable

21

PLATE, STEP 1

F3X-U884R-01-00

$23.67

22

COVER STEP 1

F3X-U4994-00-00

$24.39

23

BOLT, WITH WASHER

90119-06830-00

Unavailable

24

SCREW

F2S-U13C1-00-00

$2.52
