Partiron

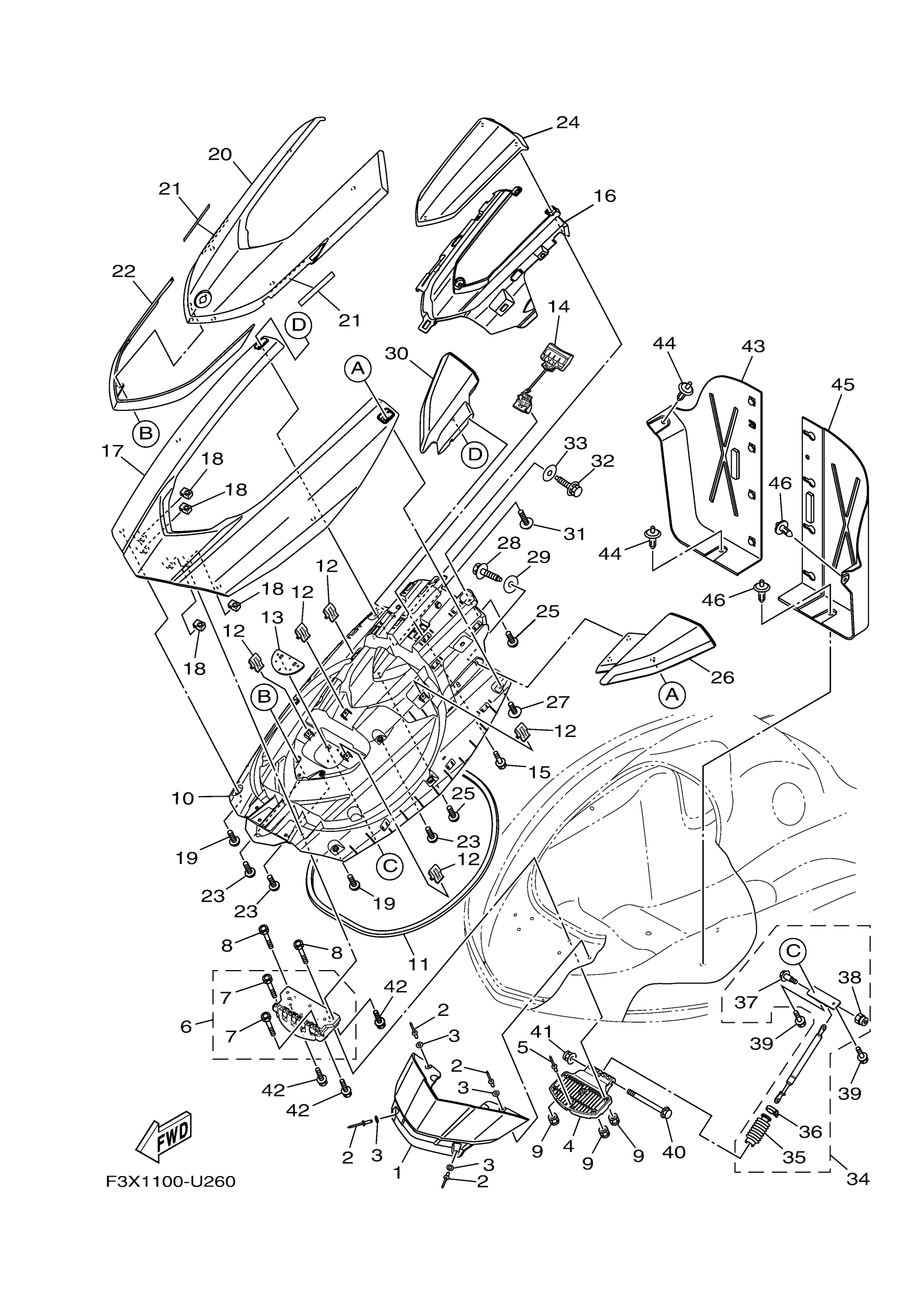

Yamaha FC1800U (FX SVHO) F3X2 2019 ENGINE HATCH 2 Diagram

#

Description
Price

1

COVER, FRONT

F3X-U513M-02-P0

Unavailable

2

RIVET, BLIND

90267-489U6-00

$1.37

3

WASHER

9299R-05200-00

$3.16

4

PLATE, HINGE LID

F3X-U518E-00-00

$21.95

5

RIVET, BLIND

90267-489U6-00

$1.37

6

HINGE, LID

F3X-U517D-01-00

$28.77

7

BOLT

F3X-U3222-00-00

$0.72

8

BOLT

F3X-U3222-00-00

$0.72

9

NUT, LOCK

F2N-U142L-00-00

$1.00

10

INNER, ENGINE HATCH

F3X-U519G-00-00

$76.31

11

PACKING 1

F3X-U2663-10-00

Unavailable

12

CLIP

F3Y-U153K-00-00

$1.29

13

PLATE, HATCH

F3X-U5148-00-00

$7.35

14

LOCK, LID

F3X-U517C-00-00

$27.27

15

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

16

OUTER, ENGINE HATCH

F3X-U519F-00-00

$29.53

17

LID, ENGINE ROOM (PURW)

F3X-U517B-00-P0

$371.20

18

NUT

F3X-U517E-00-00

$1.23

19

SCREW

F2S-U13C1-00-00

$2.36

20

VISOR

F3X-U515N-01-P2

Unavailable

21

DAMPER 2

F0X-U515E-02-00

Unavailable

22

ORNAMENT, CENTER

F3X-U517V-00-00

$26.50

23

SCREW

F2S-U13C1-00-00

$2.36

24

VISOR, 2

F3X-U515P-10-00

$23.47

25

SCREW

F2S-U13C1-00-00

$2.36

26

MIRROR ASSY. 1

F3X-U590D-00-00

$118.17

27

SCREW

F3X-U7823-12-00

$1.25

28

BOLT, WITH WASHER

90119-06880-00

$3.52

29

WASHER, PLATE

90201-068G0-00

$0.93

30

MIRROR ASSY. 2

F3X-U590E-00-00

$118.17

31

SCREW

F3X-U7823-12-00

$1.25

32

BOLT, WITH WASHER

90119-06880-00

$3.52

33

WASHER, PLATE

90201-068G0-00

$0.93

34

DAMPER ASSY

F2S-6514S-00-00

$259.08

35

. COVER, DAMPER

F1W-6514T-00-00

$23.99

36

BAND

1UA-82591-00-00

Unavailable

37

BOLT

90109-06218-00

$10.49

38

NUT, SELF-LOCKING

95720-06300-00

$1.82

39

BOLT, WITH WASHER

90119-06830-00

Unavailable

40

BOLT, SPECIAL

F3X-U491K-00-00

$2.27

41

NUT, LOCK

F3Y-U142L-00-00

$2.52

42

BOLT, WITH WASHER

90119-06896-00

$5.03

43

LOCKER,BOW

F3X-U475B-00-00

$23.47

44

RIVET

90269-08801-00

$0.83

45

PLATE, LOKER BOW

F3X-U475F-00-00

$23.47

46

RIVET

90269-08801-00

$0.83
