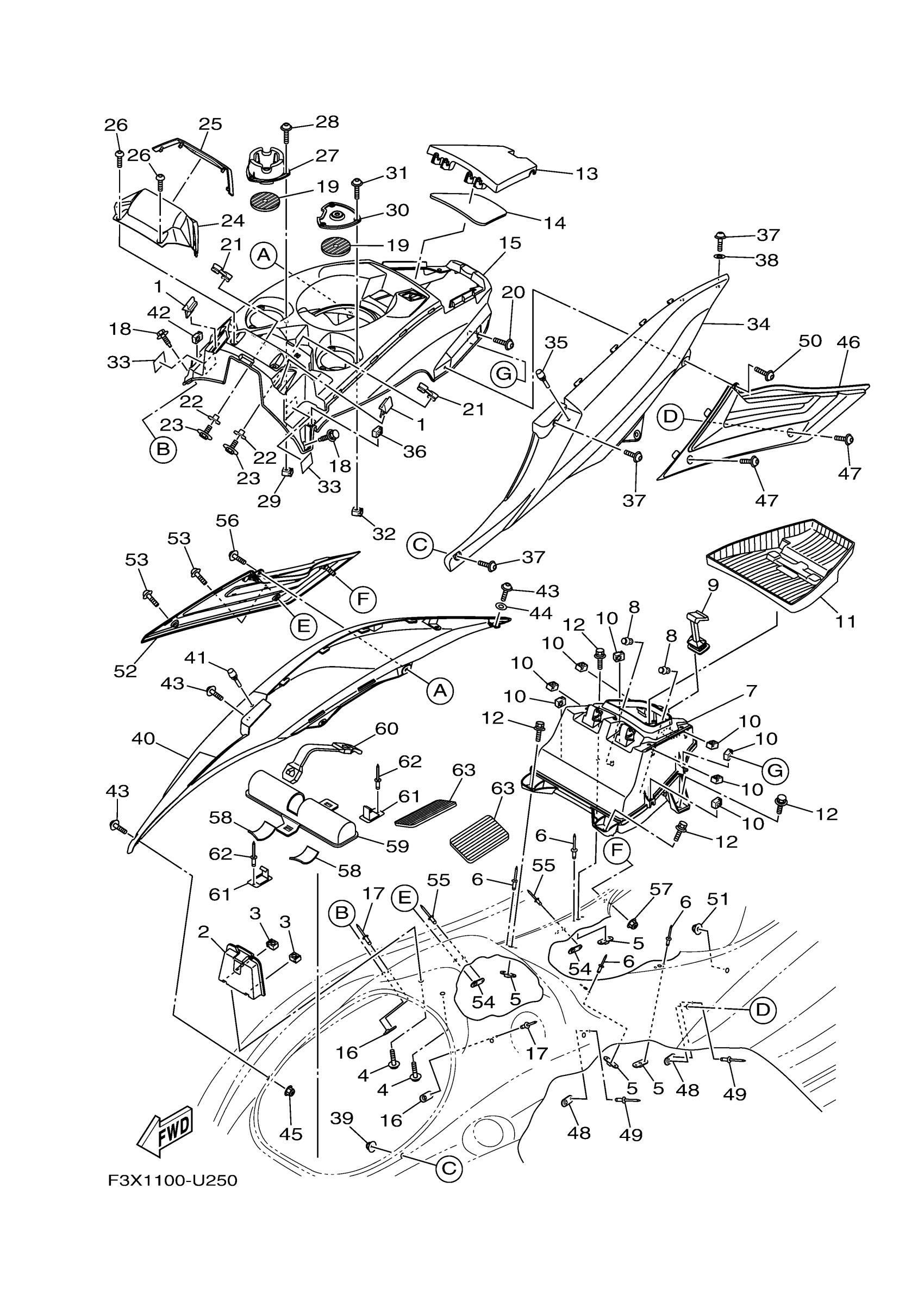

Yamaha FC1800U (FX SVHO) F3X2 2019 ENGINE HATCH 1 Diagram

#

Description
Price

1

PACKING 4

F1K-U266C-10-00

$2.24

2

HOOK,LID LOCK

F3X-U517F-00-00

$12.67

3

NUT

F3X-U517E-00-00

$1.29

4

BOLT, WITH WASHER

90119-06880-00

$3.65

5

BRACKET

F2C-U826C-00-00

$4.01

6

RIVET, BLIND

90267-489U2-00

$1.51

7

BOX GLOVE

F3X-U516P-00-00

$86.55

8

. SEAL

F3X-U2723-00-00

$2.39

9

LOCK

F3X-U2875-01-00

$13.42

10

NUT

F3X-U517E-00-00

$1.29

11

INNER, CASE

F3X-U591L-00-00

$37.30

12

BOLT, WITH WASHER

90119-08828-00

$2.44

13

LID HATCH

F3X-U517H-00-00

$17.90

14

PACKING CASE

F3X-U519D-01-00

$11.18

15

COVER,CENTER

F3X-U5554-01-00

$288.04

16

PLATE, FIX

F2X-U5175-00-00

$1.87

17

RIVET (EU0)

90267-48938-00

$4.72

18

BOLT,WITH WASHER

90119-068B8-00

$30.13

19

MAT

F3X-U3844-00-00

$2.09

20

SCREW

F3X-U7823-12-00

$1.25

21

GROMMET

F3X-U1338-00-00

$1.64

22

COLLAR

F3X-U151R-00-00

$1.12

23

BOLT

F3X-U1355-00-00

$0.82

24

COVER METER

F3X-U8262-00-00

$14.91

25

ORNAMENT, METER

F3X-U826F-00-00

$31.33

26

SCREW

F2S-U13C1-00-00

$2.52

27

HOLDER, DRINK

F3X-U5633-00-00

$4.87

28

SCREW

F3X-U7823-12-00

$1.25

29

NUT

F3X-U517E-00-00

$1.29

30

FIX, PLATE

F3X-UE175-00-00

$10.07

31

SCREW

F3X-U7823-12-00

$1.25

32

NUT

F3X-U517E-00-00

$1.29

33

PACKING

F2C-U1743-00-00

$2.00

34

COVER,SIDE 1 (PURW)

F3X-U377B-00-P0

$146.25

35

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

36

NUT

F3X-U517E-00-00

$1.29

37

SCREW

F3X-U7823-12-00

$1.25

38

WASHER, PLATE

90201-06805-00

$0.60

39

NUT, LOCK

F2N-U142L-00-00

$1.00

40

COVER,SIDE 2 (PURW)

F3X-U377C-00-P0

$146.25

41

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

42

NUT

F3X-U517E-00-00

$1.29

43

SCREW

F3X-U7823-12-00

$1.25

44

WASHER, PLATE

90201-06805-00

$0.60

45

NUT, LOCK

F2N-U142L-00-00

$1.00

46

SIDE ORNAMENT ASSY 1

F3X-U370J-00-00

$61.18

47

SCREW

F3X-U7823-02-00

$1.43

48

PLATE, FIX

F2X-U5175-00-00

$1.87

49

RIVET, BLIND

90267-48802-00

$1.98

50

SCREW

F3X-U7823-12-00

$1.25

51

NUT, LOCK

F2N-U142L-00-00

$1.00

52

SIDE ORNAMENT ASSY 2

F3X-U370K-00-00

$61.18

53

SCREW

F3X-U7823-02-00

$1.43

54

PLATE, FIX

F2X-U5175-00-00

$1.87

55

RIVET, BLIND

90267-48802-00

$1.98

56

SCREW

F3X-U7823-12-00

$1.25

57

NUT, LOCK

F2N-U142L-00-00

$1.00

58

MAT 2

F1K-U759C-00-00

$1.80

59

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$18.66

60

BAND 1

F2P-U828K-00-00

$6.17

61

HOOK A

F1K-U5772-04-00

$6.19

62

RIVET (EU0)

90267-48938-00

$4.72

63

PAD, BATTERY

F1S-U8221-00-00

$2.88
