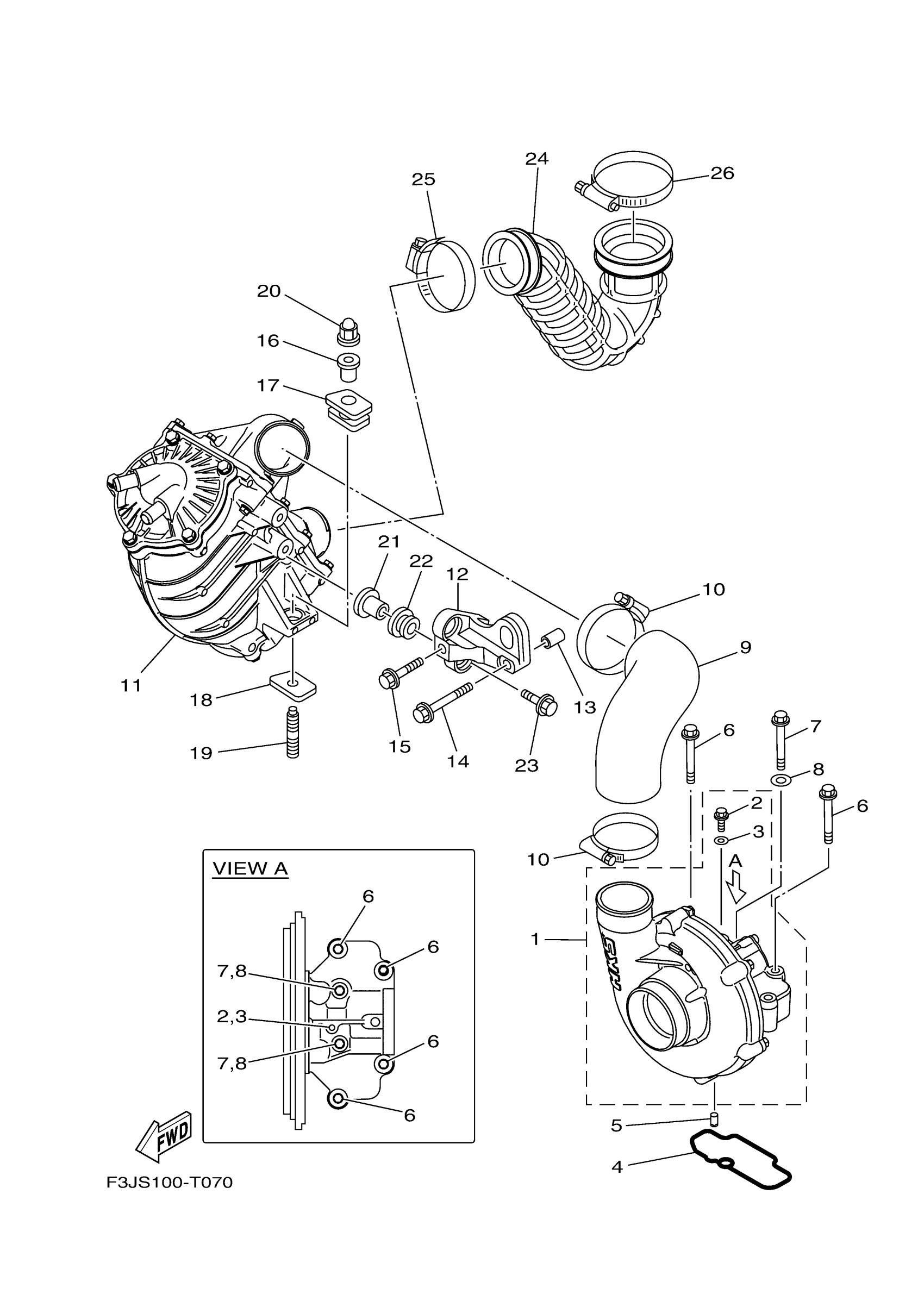

Yamaha FC1800T (FX SVHO) F3JU 2018 INTAKE 2 Diagram

#

Description
Price

1

SUPER CHARGER ASSY

6ET-141A0-13-00

Unavailable

2

. BOLT, FLANGE

90105-05020-00

$1.36

3

. GASKET

6S5-14199-00-00

$1.82

4

. O-RING

6S5-1416A-00-00

$8.51

5

PIN, DOWEL

93604-10M03-00

$3.86

6

BOLT, FLANGE

95814-08055-00

$1.58

7

BOLT, FLANGE

95814-06065-00

$1.82

8

WASHER, PLATE

90201-06028-00

$2.36

9

PIPE

6S5-14349-00-00

$380.29

10

HOSE CLAMP ASSY

90450-75003-00

$29.99

11

AIR COOLER ASSY.

6ET-13670-01-00

$2,625.74

12

BRACKET, AIR COOLE

6S5-13691-12-00

$112.11

13

PIN, DOWEL(4JT)

99590-14016-00

$3.41

14

BOLT, WITH WASHER

90119-10047-00

$5.92

15

BOLT, WITH WASHER

90119-10046-00

$6.36

16

COLLAR

90387-11007-00

$8.32

17

GROMMET

6S5-14435-01-00

$4.55

18

PLATE

6S5-14243-01-00

$8.32

19

BOLT, STUD

90116-10044-00

$11.35

20

NUT, CAP

90176-10001-00

$3.33

21

COLLAR

90387-11008-00

$19.68

22

GROMMET(62L)

90480-21M63-00

Unavailable

23

BOLT, WITH WASHER

90119-10011-00

$5.91

24

PIPE, BOOST

6CS-13651-01-00

Unavailable

25

HOSE CLAMP ASSY

90450-70005-00

$40.89

26

HOSE CLAMP ASSY

90450-90002-00

$16.99
