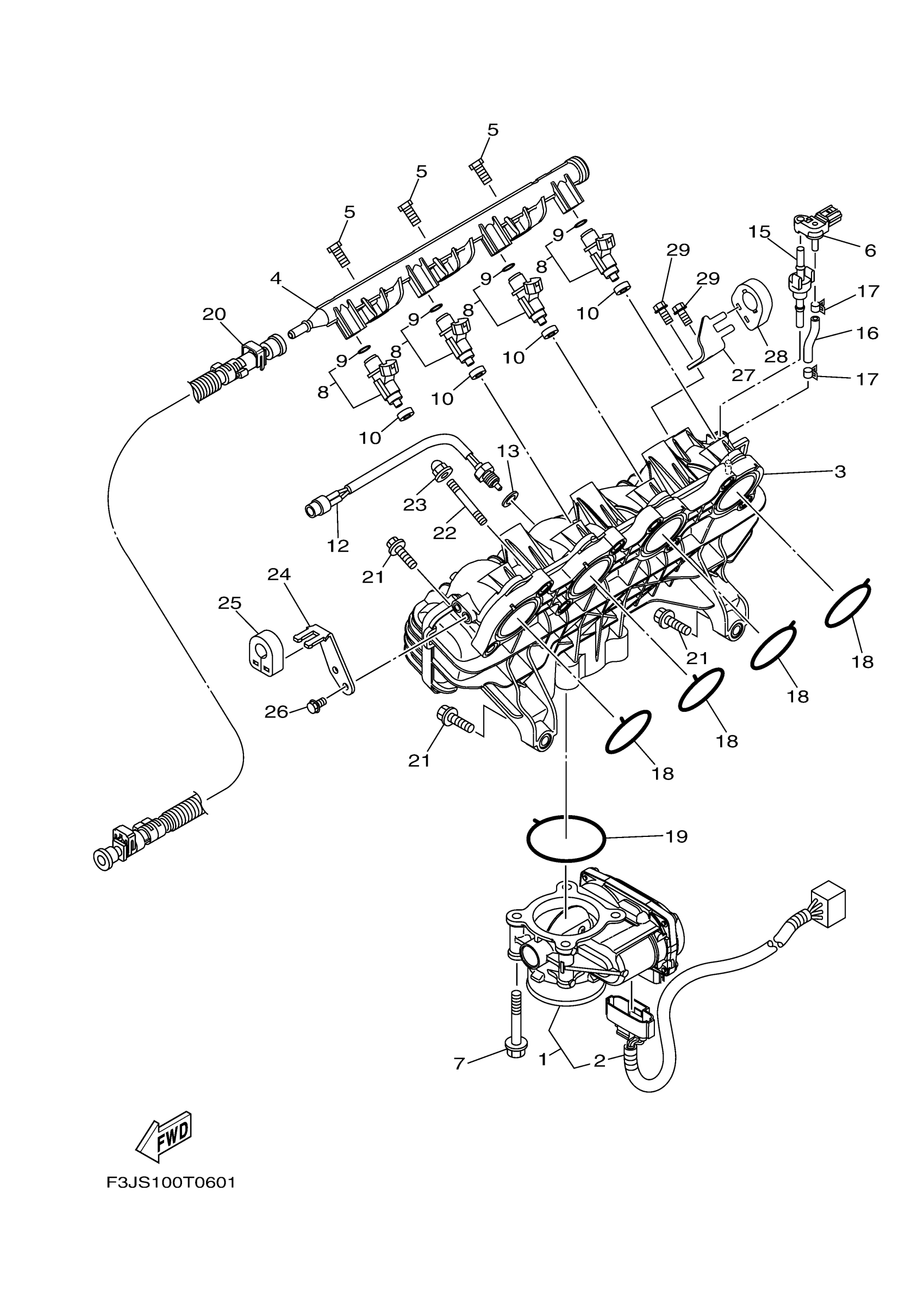

Yamaha FC1800T (FX SVHO) F3JU 2018 INTAKE 1 Diagram
#
Description
Price
1
THROTTLE BODY ASSY
6ET-13750-01-00
Unavailable
2
. WIRE, SUB LEAD
6S5-82509-00-00
Unavailable
3
MANIFOLD, INTAKE 1
6ET-13641-11-00
Unavailable
4
DELIVERY PIPE
6CS-12880-00-00
Unavailable
5
BOLT
6CS-14446-00-00
Unavailable
6
. SENSOR, PRESSURE
6BH-82380-00-00
Unavailable
7
BOLT, FLANGE
90105-08243-00
Unavailable
8
INJECTOR
6ET-13761-00-00
Unavailable
9
. O-RING
68V-1416A-00-00
Unavailable
10
. GASKET, MANIFOLD
8FP-13556-10-00
Unavailable
12
SENSOR, AIR TEMPERATURE
6S5-85886-00-00
Unavailable
13
. WASHER
6S5-14285-00-00
Unavailable
15
GROMMET
6BH-14445-00-00
Unavailable
16
HOSE
5PS-14987-00-00
$5.88
17
CLIP
6S5-14159-01-00
$13.99
18
. GASKET, INSULATING
6ET-14156-00-00
Unavailable
19
. GASKET, INSULATING
6EY-14156-00-00
Unavailable
20
FUEL HOSE ASSY
6AN-2450B-10-00
Unavailable
21
BOLT, WITH WASHER
97513-08535-00
Unavailable
22
BOLT, STUD
90116-08032-00
Unavailable
23
NUT, CROWN(4BR)
90176-08080-00
Unavailable
24
PLATE, STAY
6ET-14572-00-00
Unavailable
25
GROMMET
6CS-14445-01-00
Unavailable
26
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
27
PLATE, STAY
6CS-14572-00-00
Unavailable
28
GROMMET
6ET-14445-01-00
Unavailable
29
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
