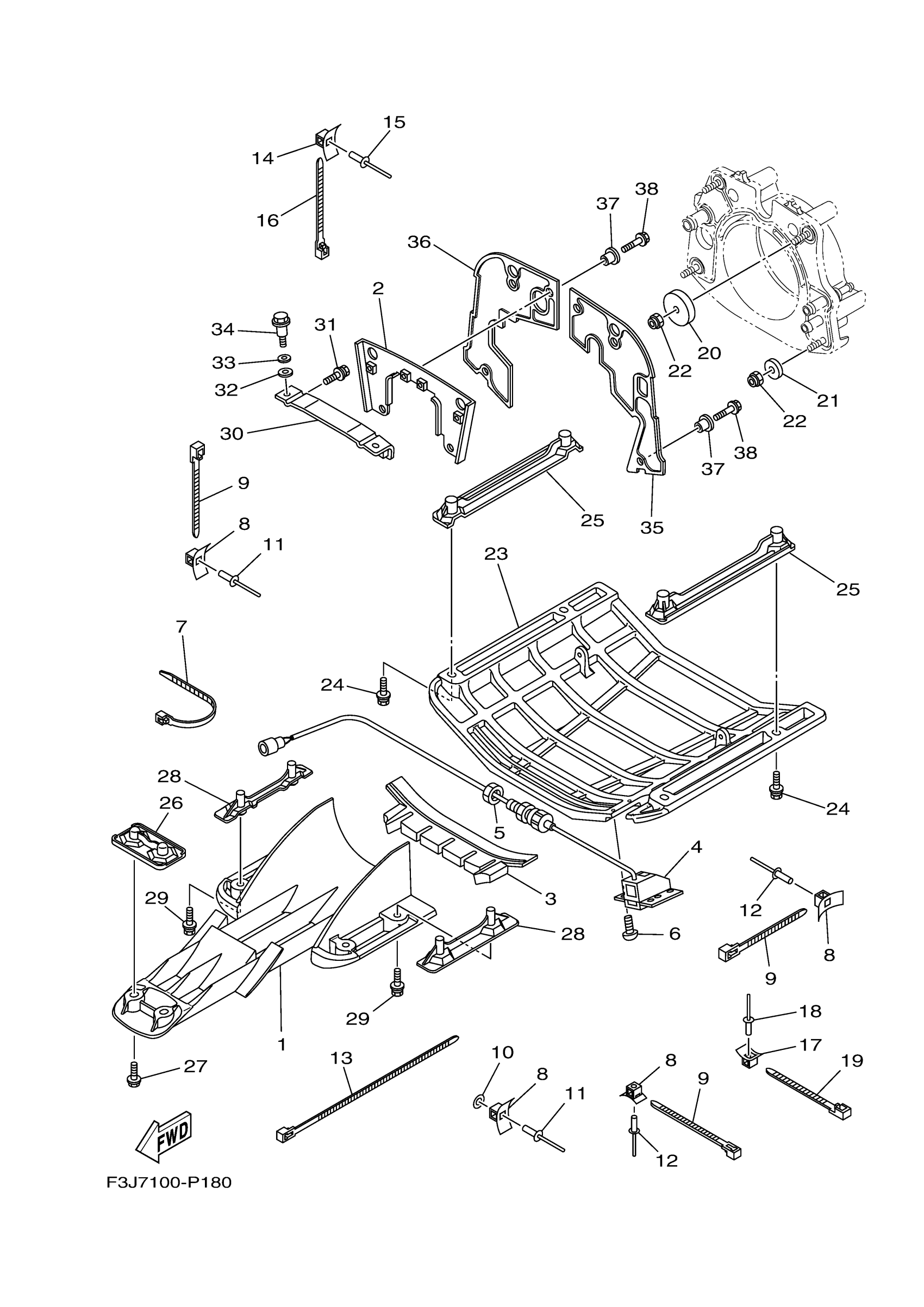

Yamaha FC1800S (FX SVHO) F3JM 2017 JET UNIT 4 Diagram

#

Description
Price

1

SCREEN, INTAKE

6ET-R1333-00-00

$111.93

2

BRACKET

6ET-R1959-00-00

$19.39

3

SPACER

F2S-U72C0-01-00

$15.79

4

SENSOR SPEED

F1S-U8K31-03-00

$147.92

5

NUT

F2C-U151S-00-00

$1.57

6

SCREW, ROUND HEAD

90150-05807-00

$0.86

7

CLAMP

90464-32801-00

$1.29

8

BASE, CLAMP

F1W-U828M-00-00

$1.29

9

CLAMP

90464-32801-00

$1.29

10

WASHER

9299R-05200-00

$4.60

11

RIVET, BLIND

90267-489U6-00

Unavailable

12

RIVET, BLIND

90267-489U6-00

Unavailable

13

CLAMP

90464-99801-00

$2.69

14

BASE, CLAMP

F1W-U828M-00-00

$1.29

15

RIVET, BLIND

90267-489U6-00

Unavailable

16

CLAMP

90464-32801-00

$1.29

17

BASE, CLAMP

F1W-U828M-00-00

$1.29

18

RIVET, BLIND

90267-489U6-00

Unavailable

19

CLAMP

90464-32801-00

$1.29

20

WASHER

F1S-U725E-01-00

$8.61

21

WASHER, PLATE

90201-10801-00

$3.65

22

NUT, NYLON

9572R-10300-00

$3.52

23

PLATE 2

F3J-6273B-00-00

$380.58

24

BOLT, WITH WASHER

90119-08829-00

$4.09

25

BRACKET 2

F1B-U8572-01-00

$14.35

26

BRACKET, 3

F2S-U8577-00-00

$15.79

27

BOLT, WITH WASHER

90119-08829-00

$4.09

28

BRACKET 1

F1G-U8571-02-00

$15.79

29

BOLT, WITH WASHER

90119-08829-00

$4.09

30

BRACKET

F2C-U7557-01-00

$29.84

31

BOLT, WITH WASHER

90119-08800-00

$4.31

32

GASKET

90430-12002-00

$1.72

33

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

34

BOLT

90109-08043-00

$4.03

35

PLATE, RUBBER 1

F3J-U757E-00-00

Unavailable

36

PLATE, RUBBER 2

F3J-U757F-00-00

$12.67

37

COLLAR

90387-06080-00

$6.88

38

BOLT, WITH WASHER

90119-06827-00

Unavailable
