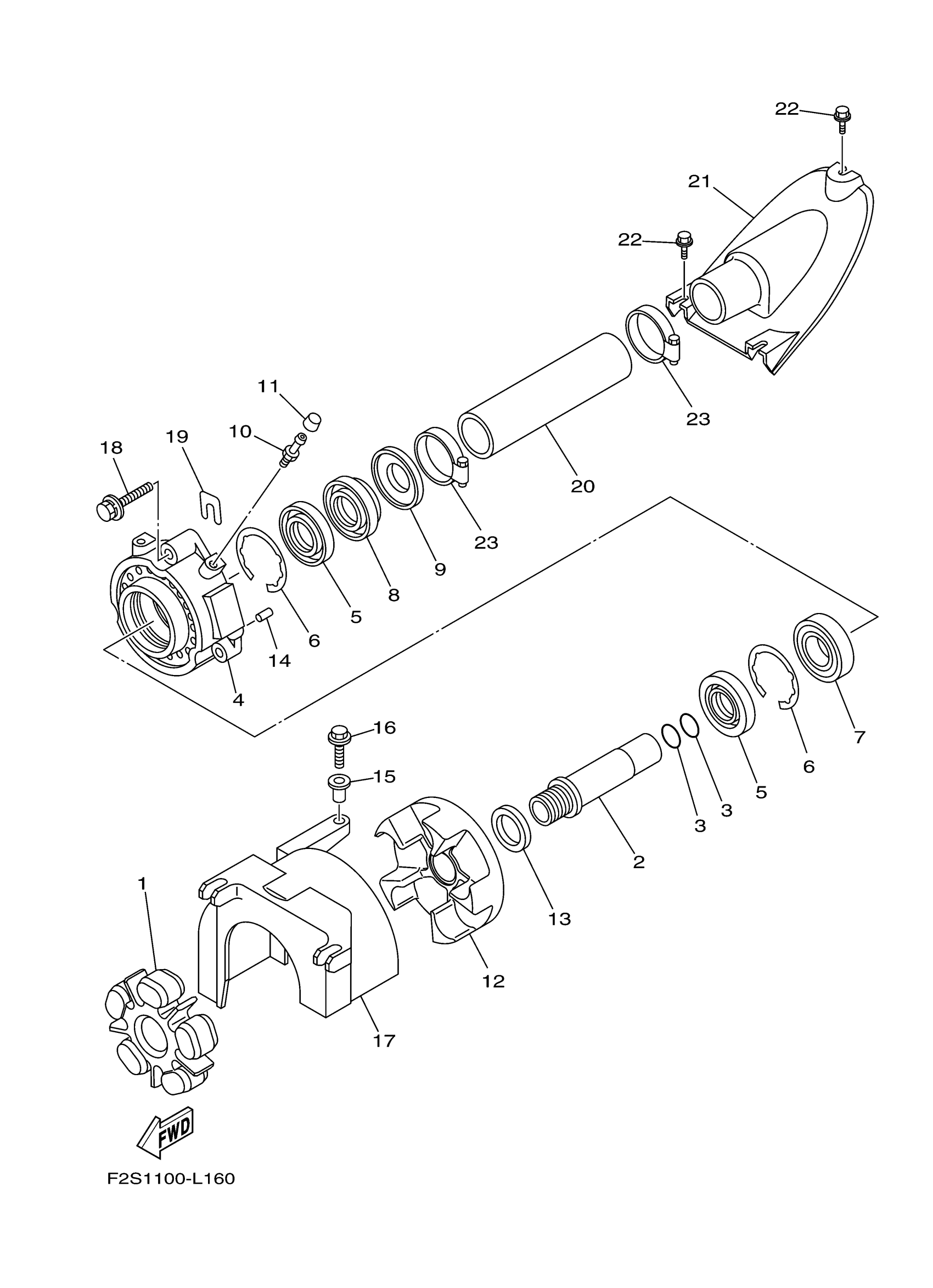

Yamaha FC1800S (FX SVHO) F3JM 2017 JET UNIT 2 Diagram

#

Description
Price

1

RUBBER SHAFT COUPL

6BH-4581J-01-00

$117.55

2

SHAFT, COUPLER

6S5-R1323-00-00

$135.84

3

O-RING(6U1)

93210-22MF1-00

$4.04

4

HOUSING, BEARING

6S5-G5332-00-00

$209.50

5

. OIL SEAL

93102-29008-00

$22.79

6

CIRCLIP

93450-66156-00

$3.03

7

BEARING

93306-206Y8-00

$45.93

8

OIL SEAL

93102-29009-00

$47.02

9

WASHER, THRUST

6ET-45613-00-00

$23.30

10

NIPPLE, GREASE

93700-06M03-00

$6.86

11

CAP, GREASE NIPPLE

663-45119-01-00

$1.78

12

FLANGE, COUPLING 1

6S5-G5593-00-00

$45.93

13

WASHER

6ET-E2289-00-00

$4.51

14

PIN, DOWEL (614)

93606-12019-00

$3.50

15

COLLAR

90387-06289-00

$2.43

16

BOLT, WITH WASHER

90119-06892-00

$4.01

17

COVER

6S5-R1381-01-00

$4.37

18

BOLT, WITH WASHER

90119-089U1-00

$3.37

19

SHIM (0.5)

GD0-U7249-00-05

$20.87

20

PIPE 1

F2S-U883B-00-00

Unavailable

21

JOINT, PIPE

F2S-U883E-00-00

$10.75

22

BOLT

90109-06832-00

$2.58

23

BAND, HOSE 52

90601-152U3-00

$5.96
