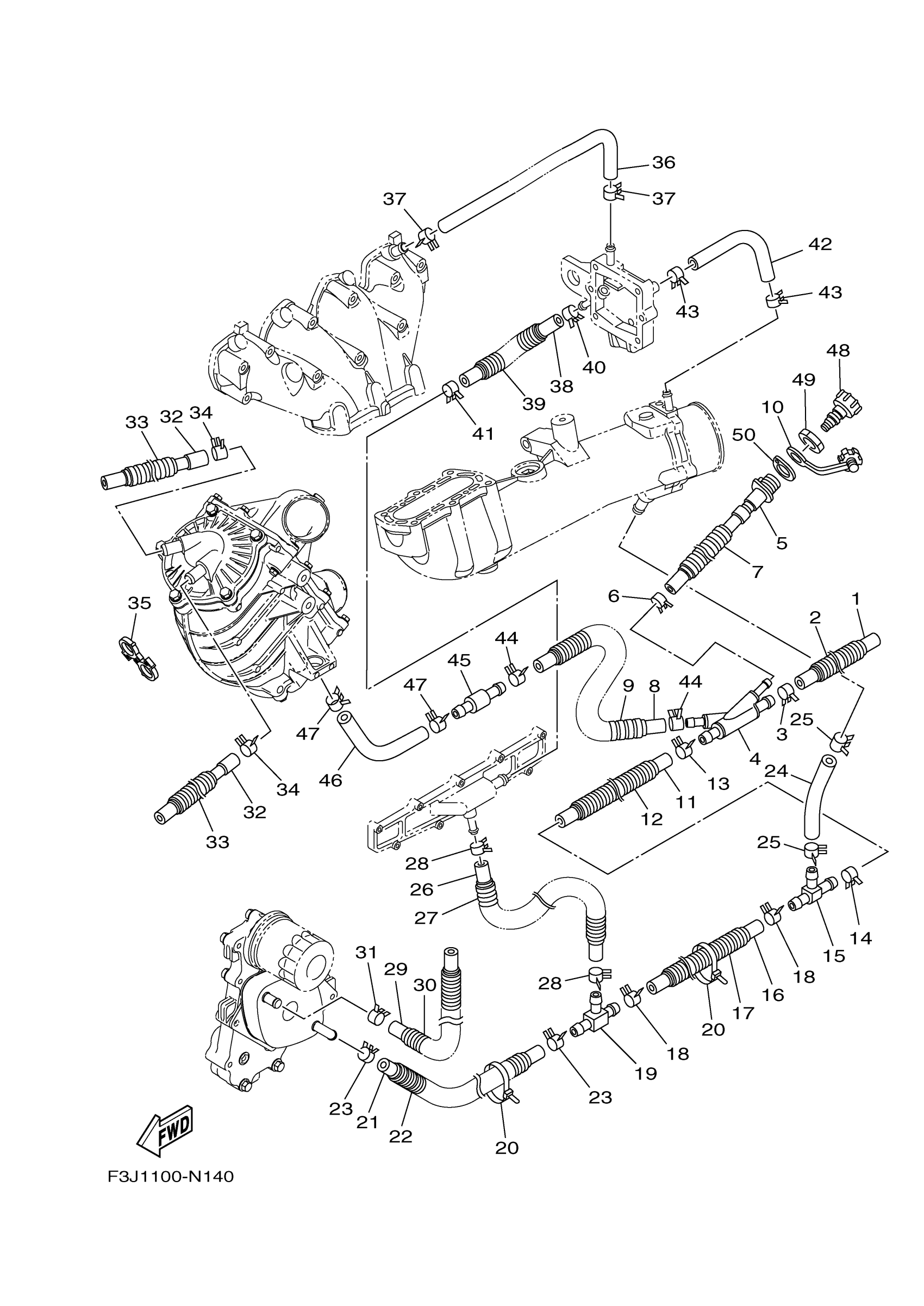

Yamaha FC1800R (FX SVHO) F3JG 2016 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.86

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A3-00

$5.92

4

JOINT, HOSE 1

6ET-12581-10-00

$31.80

5

JOINT ASSY

6CS-12580-00-00

$113.62

6

CLIP

90467-150A5-00

$2.64

7

TUBE (L485)

90447-19801-00

$3.56

8

HOSE (L970)

90445-21807-00

$14.38

9

TUBE (L850)

90447-22802-00

$4.09

10

CAP,1

682-84385-01-00

$9.08

11

HOSE 2

6S5-1243E-01-00

$22.11

12

TUBE

F2T-U773D-00-00

$1.36

13

CLIP

90467-200A3-00

$5.92

14

CLIP

90467-200A3-00

$5.92

15

JOINT, HOSE 3

6BH-12584-00-00

$4.44

16

HOSE (L220)

90445-18017-00

$13.49

17

HOSE, WITH SPRING

90447-19004-00

Unavailable

18

CLIP

90467-160A0-00

$2.95

19

JOINT, HOSE 2

6ET-12582-00-00

$5.00

20

CLAMP(3XW)

90464-35132-00

Unavailable

21

HOSE (L220)

90445-18017-00

$13.49

22

HOSE, WITH SPRING

90447-19004-00

Unavailable

23

CLIP

90467-160A0-00

$2.95

24

HOSE 6

6S5-12589-01-00

Unavailable

25

CLIP

90467-200A3-00

$5.92

26

HOSE 5

6S5-1244H-00-00

$20.99

27

TUBE (L150)

90447-19011-00

$2.73

28

. CLIP

90467-150A1-00

$3.33

29

HOSE 5

6CS-12588-00-00

$27.99

30

TUBE (L760)

90447-19018-00

$9.08

31

CLIP

90467-160A0-00

$2.95

32

HOSE 8

6CS-12552-00-00

$20.99

33

TUBE

F3J-U773D-00-00

$4.77

34

CLIP

90467-170A4-00

$2.04

35

CLAMP

90464-24003-00

$2.73

36

HOSE 2

6BH-12577-00-00

$20.99

37

CLIP

90467-160A0-00

$2.95

38

HOSE 4

6S5-12579-00-00

$14.44

39

TUBE (L150)

90447-19011-00

$2.73

40

CLIP

90467-160A0-00

$2.95

41

CLIP

90467-170A5-00

$4.55

42

HOSE (L220)

90445-16013-00

$11.35

43

CLIP

90467-160A0-00

$2.95

44

CLIP

90467-200A3-00

$5.92

45

JOINT, HOSE 4

6S5-12594-00-00

$4.55

46

HOSE 1

6S5-12576-01-00

$22.49

47

CLIP

90467-200A3-00

$5.92

48

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

49

NUT

EU0-61652-00-00

$11.48

50

PACKING

F2S-U7525-01-00

Unavailable
