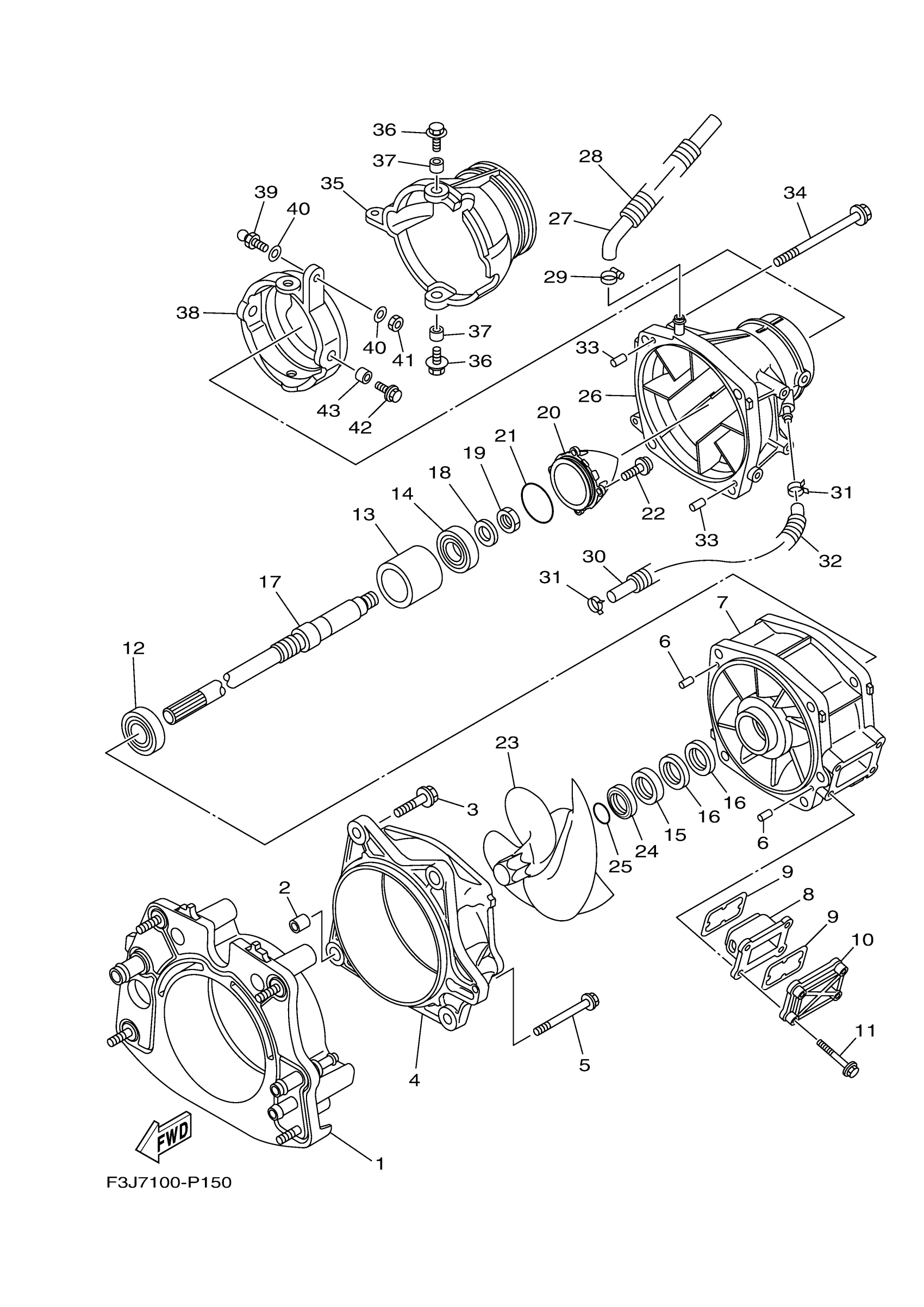

Yamaha FC1800P (FX SVHO) F3JA 2015 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6ET-G5831-00-00

$137.86

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

HOUSING, IMPELLER

99999-04523-00

Unavailable

5

BOLT, WITH WASHER

90119-06894-00

$1.37

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

DUCT, IMPELLER

6ET-51315-00-00

$298.86

8

FILTER

6ET-G6882-00-00

$14.38

9

. O-RING

66V-42414-00-00

$5.18

10

COVER, WATER INLET

6AN-G5214-00-00

$18.17

11

BOLT,WITH WASHER

90119-06898-00

$3.43

12

BEARING

93306-20654-00

$62.23

13

SPACER 1

6CS-G5538-00-00

$33.01

14

BEARING(3RR)

93306-30560-00

Unavailable

15

. OIL SEAL

93102-31009-00

$80.29

16

. OIL SEAL

93101-31001-00

$32.99

17

SHAFT, DRIVE

6ET-G5511-00-00

$337.86

18

WASHER

9290P-20600-00

$0.57

19

NUT

90170-20802-00

$14.35

20

CAP

6ET-R1326-00-00

$16.50

21

O-RING

93210-54010-00

$2.64

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

23

IMPELLER

6ET-R1321-00-00

$238.59

24

SPACER

6BH-51348-01-00

$61.99

25

O-RING (30X)

93210-30611-00

Unavailable

26

NOZZLE

6ET-R1318-00-00

$77.80

27

HOSE 1

6CS-U72M2-00-00

$6.68

28

TUBE

6CN-U773D-01-00

$2.95

29

BAND, HOSE 18

90601-118UF-00

$2.07

30

HOSE

6ET-U215E-00-00

$5.23

31

CLIP

90467-14803-00

$2.58

32

TUBE

6ET-U773D-00-00

$2.50

33

PIN, DOWEL (614)

93606-12019-00

$3.05

34

BOLT, WITH WASHER

90119-10807-00

$5.44

35

NOZZLE, DEFLECTOR

6S5-R1313-01-00

$23.67

36

BOLT, WITH WASHER

90119-08852-00

$3.79

37

COLLAR(6R7)

90387-08M06-00

Unavailable

38

RING,TRIM

6AN-R1190-00-00

$21.53

39

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

40

WASHER,PLATE

90201-068M4-00

Unavailable

41

NUT

9538R-06700-00

$1.01

42

BOLT, WITH WASHER

90119-08852-00

$3.79

43

COLLAR(6R7)

90387-08M06-00

Unavailable
