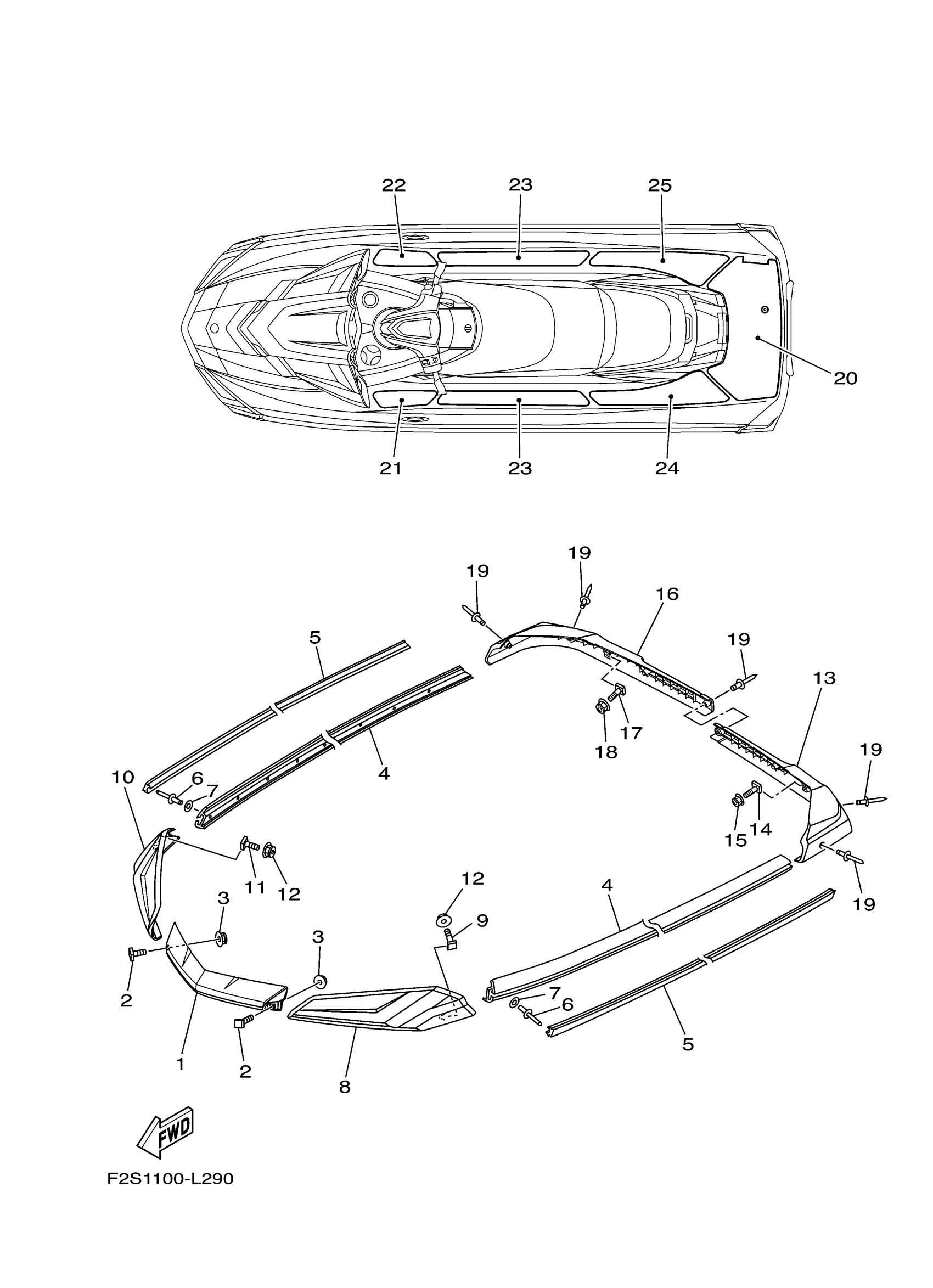

Yamaha FC1800P (FX SVHO) F3JA 2015 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F2S-U2511-10-00

$34.82

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F2S-U2512-10-00

$43.71

5

INNER,GUNWALE (DARK GRAY)

F2S-U2519-20-00

$17.77

6

RIVET, BLIND

90267-489U8-00

$0.99

7

WASHER

9299R-05200-00

$3.16

8

JOINT, GUNWALE LH

F2S-U252E-11-00

$113.62

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

JOINT, GUNWALE RH

F2S-U252F-11-00

$113.62

11

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

12

NUT, LOCK

F2N-U142L-00-00

$1.00

13

GUNWALE, STERN 1 LH

F2S-U251D-10-00

$87.43

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE, STERN 2 RH

F2S-U251E-10-00

$64.46

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

RIVET, BLIND

90267-48825-00

$1.44

20

MAT, UPPER

F2S-U3581-01-00

$75.74

20

MAT, UPPER

F2S-U3581-20-00

$78.77

21

MAT, STEP 1

F2S-U351H-00-00

$12.91

21

MAT, STEP 1

F2S-U351H-20-00

$12.86

22

MAT, STEP 2

F2S-U351J-00-00

$10.75

22

MAT, STEP 2

F2S-U351J-20-00

$12.86

23

MAT, STEP 3

F2S-U351K-00-00

$17.22

23

MAT, STEP 3

F2S-U351K-20-00

$17.22

24

MAT, STEP 4

F2S-U351M-00-00

$21.53

24

MAT, STEP 4

F2S-U351M-20-00

$24.98

25

MAT, STEP 5

F2S-U351N-00-00

$22.25

25

MAT, STEP 5

F2S-U351N-20-00

$24.98
