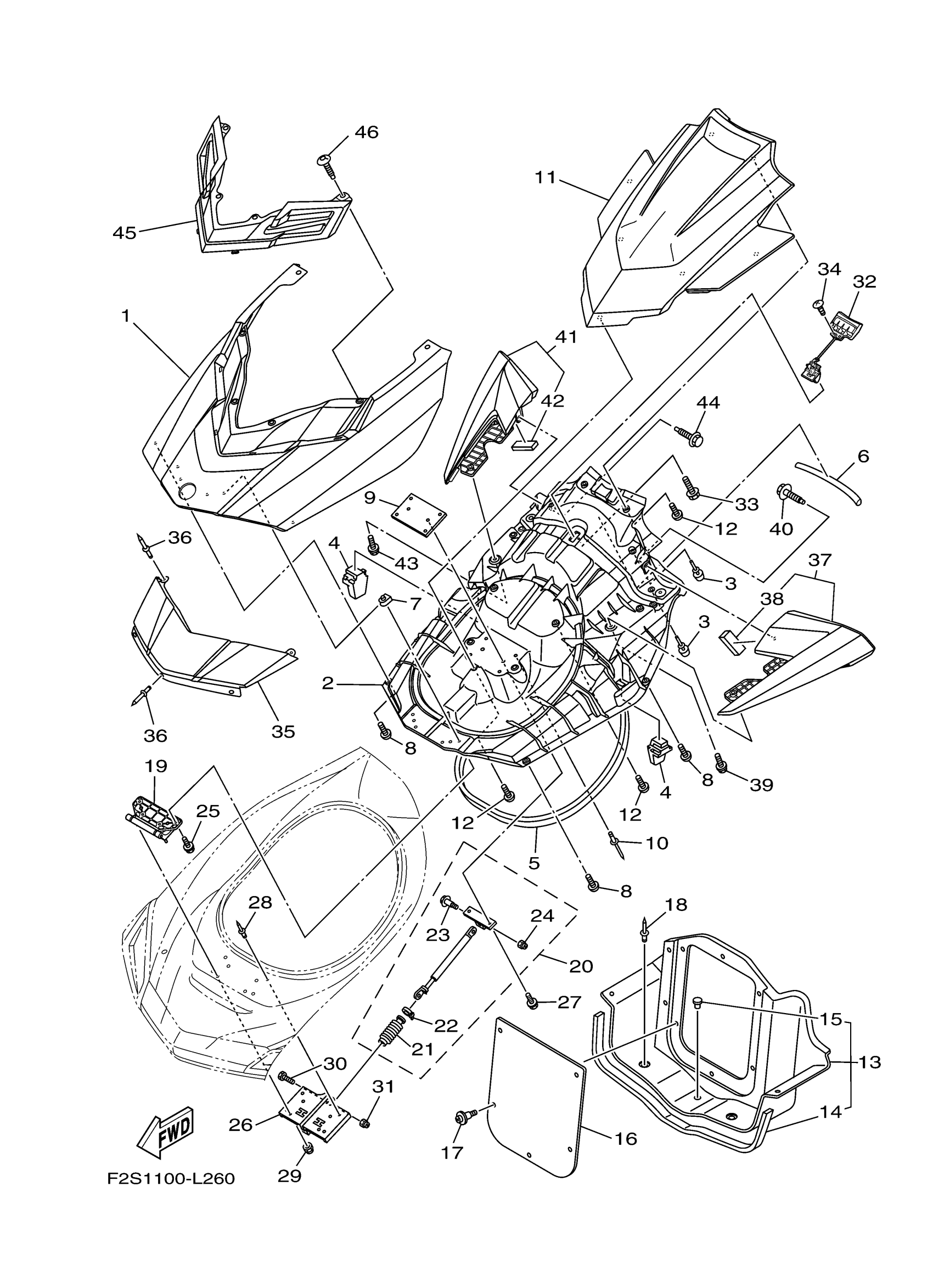

Yamaha FC1800P (FX SVHO) F3JA 2015 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (VPBM6)

F2S-U517B-01-P9

Unavailable

1

LID, ENGINE ROOM (DYMA)

F2S-U517B-01-PA

Unavailable

2

INNER, ENGINE HATCH

F2S-U519G-02-00

Unavailable

3

. CUSHION, RUBBER

F1W-U3768-01-00

Unavailable

4

STOPPER, HATCH 1

F2S-U5135-00-00

Unavailable

5

PACKING 1

F2S-U2663-00-00

Unavailable

6

PACKING 3

F2S-U266B-00-00

Unavailable

7

NUT, SPRING(GJ3)

90183-06902-00

$11.49

8

SCREW

F2S-U13C1-00-00

Unavailable

9

PLATE, HATCH

F1W-U5148-00-00

Unavailable

10

RIVET, BLIND

90267-48807-00

Unavailable

11

VISOR (VPBM6)

F2S-U515N-01-P9

Unavailable

11

VISOR (DYMA)

F2S-U515N-01-PA

Unavailable

12

SCREW

F2S-U13C1-00-00

Unavailable

13

LOCKER,BOW

F2S-U475B-00-00

Unavailable

14

PACKING 4

F2C-U266C-00-00

Unavailable

15

. PLUG, BLIND

90605-502U1-00

Unavailable

16

PLATE, LOKER BOW

F2S-U475F-00-00

Unavailable

17

RIVET

90269-08801-00

Unavailable

18

RIVET

90269-08801-00

Unavailable

19

HINGE, LID

F2S-U517D-00-00

Unavailable

20

DAMPER ASSY

F2S-6514S-00-00

Unavailable

21

. COVER, DAMPER

F1W-6514T-00-00

Unavailable

22

BAND

1UA-82591-00-00

Unavailable

23

BOLT

90109-06218-00

Unavailable

24

NUT, SELF-LOCKING

95720-06300-00

Unavailable

25

BOLT, WITH WASHER

90119-06896-00

Unavailable

26

PLATE, HINGE LID

F2S-U518E-00-00

Unavailable

27

BOLT, WITH WASHER

90119-06830-00

Unavailable

28

RIVET, BLIND

90267-48020-00

Unavailable

29

NUT, NYLON

9572R-06300-00

Unavailable

30

BOLT

90109-06218-00

Unavailable

31

NUT, NYLON

9572R-06300-00

Unavailable

32

LOCK, LID

F2S-U517C-01-00

Unavailable

33

BOLT, WITH WASHER (EW3)

90119-05912-00

Unavailable

34

SCREW, TAPPING

9778R-50010-00

Unavailable

35

COVER, FRONT (VPBM6)

F2S-U513M-01-P9

Unavailable

35

COVER, FRONT (DYMA)

F2S-U513M-01-PA

Unavailable

36

RIVET, BLIND

90267-489U6-00

Unavailable

37

MIRROR ASSY. 1

F2S-U590D-21-00

Unavailable

38

. PACKING 3

F1K-U266B-00-00

Unavailable

39

BOLT, WITH WASHER

90119-08907-00

Unavailable

40

BOLT,WITH WASHER

90119-068B8-00

Unavailable

41

MIRROR ASSY. 2

F2S-U590E-21-00

Unavailable

42

. PACKING 3

F1K-U266B-00-00

Unavailable

43

BOLT, WITH WASHER

90119-08907-00

Unavailable

44

BOLT,WITH WASHER

90119-068B8-00

Unavailable

45

CENTER ORNAMENT ASSY

F2S-U510D-01-00

Unavailable

46

SCREW

F2S-U13C1-00-00

Unavailable
