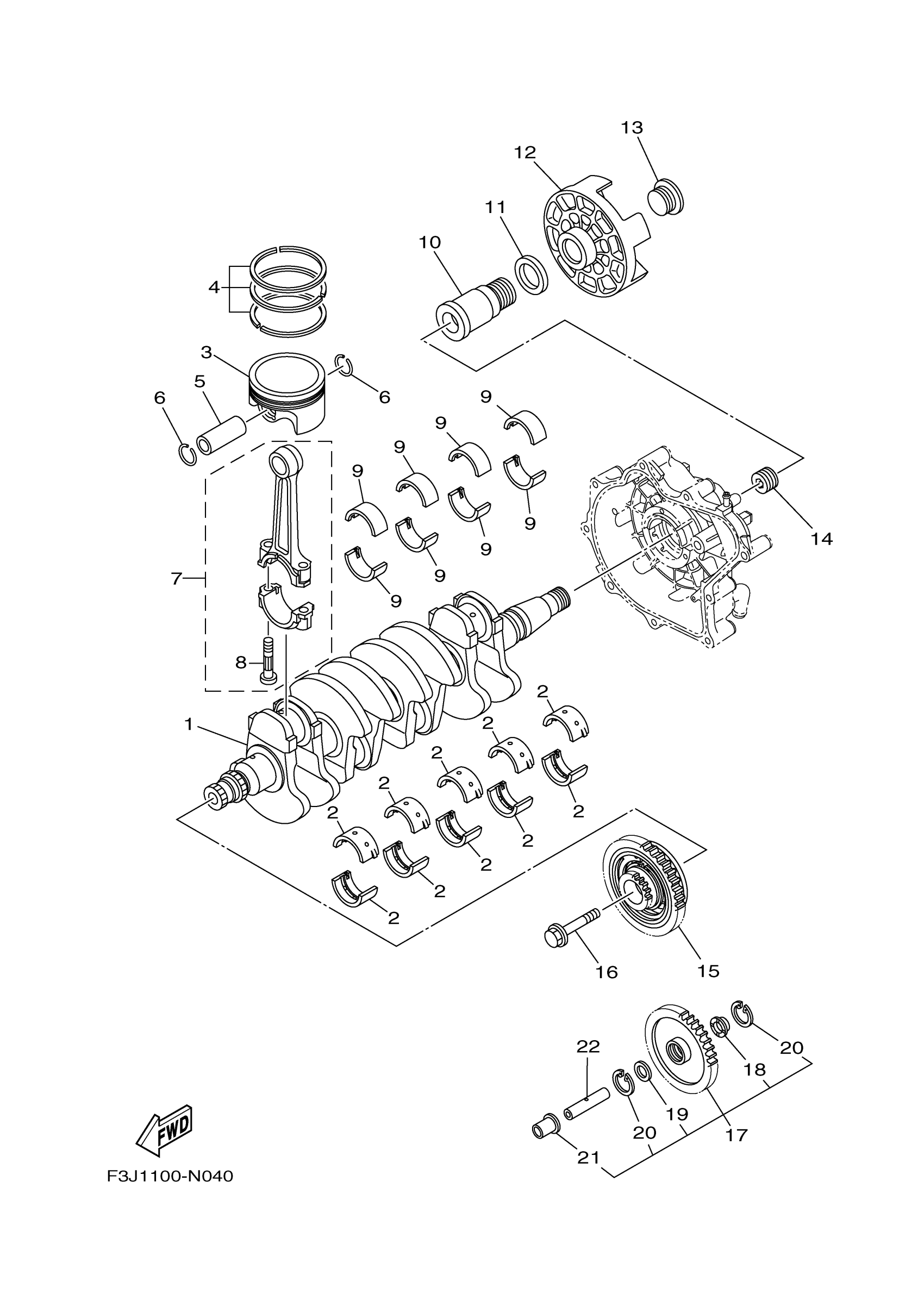

Yamaha FC1800P (FX SVHO) F3JA 2015 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT

6S5-11411-01-00

Unavailable

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-00-00

$14.81

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-10-00

$14.81

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-20-00

$19.68

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-30-00

$13.70

2

PLANE BEARING, CRANKSHAFT 1

6S5-11416-40-00

$13.70

3

PISTON (STD)

6ET-11631-01-B0

$130.25

4

PISTON RING SET (STD)

6S5-11603-01-00

$55.57

5

PIN, PISTON

6ET-11633-00-00

$26.30

6

CIRCLIP 256116340000

93450-24028-00

$3.90

7

CONNECTING ROD ASSY

6S5-11650-10-00

$185.06

8

. BOLT, CONNECTING ROD

6S5-11654-10-00

$5.92

9

PLANE BEARING, CONNECTING ROD

6S5-11656-40-00

$11.85

9

PLANE BEARING, CONNECTING ROD

6S5-11656-50-00

$11.85

9

PLANE BEARING, CONNECTING ROD

6S5-11656-60-00

$11.85

9

PLANE BEARING, CONNECTING ROD

6S5-11656-70-00

$11.85

10

SHAFT, TRANSFER

6S5-17572-01-00

$252.88

11

WASHER

6S5-12289-00-00

$24.13

12

FLANGE, COUPLING

6S5-45813-01-00

Unavailable

13

HOLDER 2

6S5-17525-01-00

$76.99

14

NUT, SPECIAL

6S5-11459-01-00

$37.49

15

GEAR UNIT ASSY

99999-04514-00

Unavailable

16

BOLT

6S5-17031-00-00

$34.75

17

. DRIVE GEAR & COLLAR SET (18T)

6S5-W1783-20-00

$384.20

18

. WASHER, THRUST

6S5-17529-00-00

$14.38

19

WASHER, PLATE

90201-13013-00

Unavailable

20

. CIRCLIP

99009-24700-00

$1.36

21

. COLLAR, GEAR

6S5-17585-10-00

$80.29

22

SHAFT, MIDDLE DRIVEN

6S5-17553-00-00

$31.80
