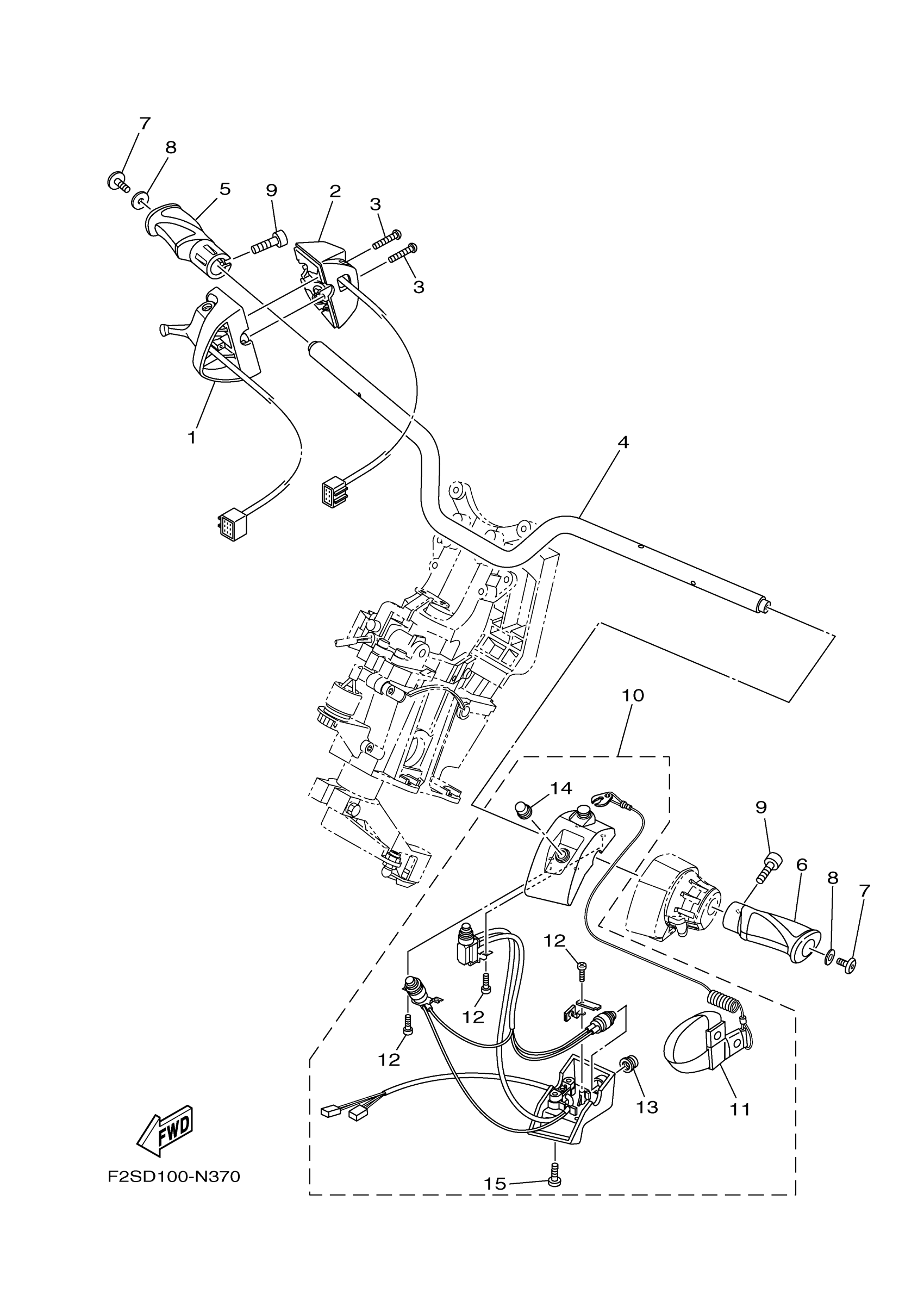

Yamaha FC1800N (FX SVHO) F3J4 2014 STEERING 1 Diagram

#

Description
Price

1

THROTTLE LEVER COMP

6CS-14305-13-00

$654.99

2

SWITCH ASSY

6CS-81860-00-00

$246.25

3

BOLT, THROTTLE

6CS-6725F-00-00

$4.55

4

HANDLE

F2S-U1552-00-00

$280.58

5

GRIP,HANDLE

F2S-U155D-03-00

$34.45

6

GRIP,HANDLE

F2S-U155C-02-00

$67.50

7

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.79

8

WASHER, PLATE

90201-068G0-00

$1.04

9

BOLT

F2S-U1516-00-00

$2.93

10

SWITCH BOX ASSY

F2S-68310-00-00

$222.37

11

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

12

. SCREW, TAPPING

97780-30610-00

$1.29

13

. STOP BUTTON COMP

FK7-68312-02-00

$13.02

14

. START BUTTON COMP

FK7-68313-02-00

$10.96

15

SCREW, PAN HEAD

98517-05030-00

$7.40
