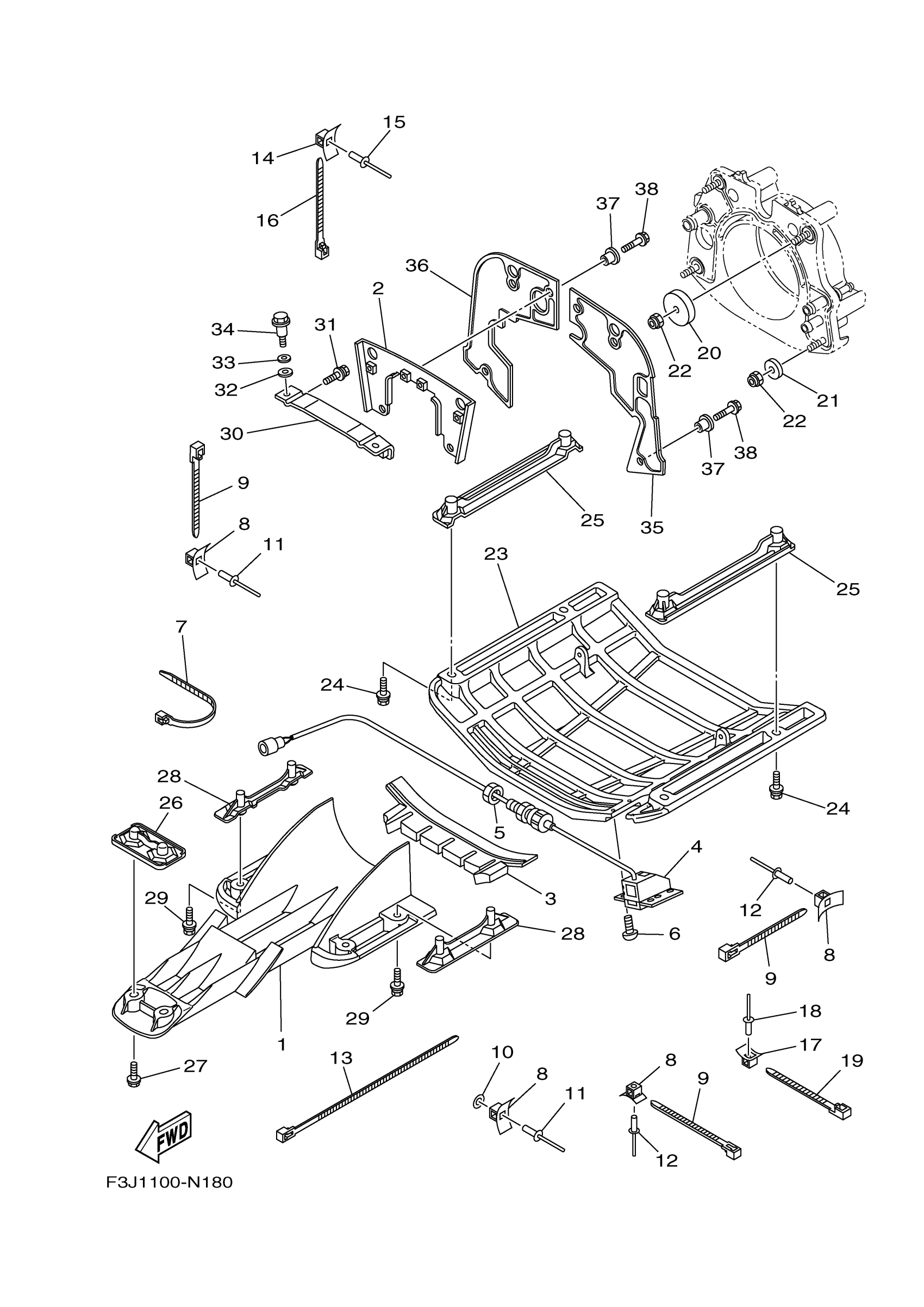

Yamaha FC1800N (FX SVHO) F3J4 2014 JET UNIT 4 Diagram

#

Description
Price

1

SCREEN, INTAKE

6ET-R1333-00-00

$113.62

2

BRACKET

6ET-R1959-00-00

$17.14

3

SPACER

F2S-U72C0-01-00

$15.07

4

SENSOR SPEED

F1S-U8K31-03-00

$142.18

5

NUT

F2C-U151S-00-00

$1.59

6

SCREW, ROUND HEAD

90150-05807-00

$0.79

7

CLAMP

90464-32801-00

$1.23

8

BASE, CLAMP

F1W-U828M-00-00

$1.23

9

CLAMP

90464-32801-00

$1.23

10

WASHER

9299R-05200-00

$3.16

11

RIVET, BLIND

90267-489U6-00

$1.37

12

RIVET, BLIND

90267-489U6-00

$1.37

13

CLAMP

90464-99801-00

$2.73

14

BASE, CLAMP

F1W-U828M-00-00

$1.23

15

RIVET, BLIND

90267-489U6-00

$1.37

16

CLAMP

90464-32801-00

$1.23

17

BASE, CLAMP

F1W-U828M-00-00

$1.23

18

RIVET, BLIND

90267-489U6-00

$1.37

19

CLAMP

90464-32801-00

$1.23

20

WASHER

F1S-U725E-01-00

$7.89

21

WASHER, PLATE

90201-10801-00

$3.52

22

NUT, NYLON

9572R-10300-00

$3.37

23

PLATE 2

F3J-6273B-00-00

$386.35

24

BOLT, WITH WASHER

90119-08829-00

$3.88

25

BRACKET 2

F1B-U8572-01-00

$15.14

26

BRACKET, 3

F2S-U8577-00-00

$15.07

27

BOLT, WITH WASHER

90119-08829-00

$3.88

28

BRACKET 1

F1G-U8571-02-00

$15.07

29

BOLT, WITH WASHER

90119-08829-00

$3.88

30

BRACKET

F2C-U7557-01-00

$30.29

31

BOLT, WITH WASHER

90119-08800-00

$4.09

32

GASKET

90430-12002-00

$1.81

33

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

34

BOLT

90109-08043-00

$4.09

35

PLATE, RUBBER 1

F2S-U757E-02-00

$11.35

36

PLATE, RUBBER 2

F2S-U757F-01-00

Unavailable

37

COLLAR

90387-06080-00

$7.27

38

BOLT, WITH WASHER

90119-06827-00

Unavailable
