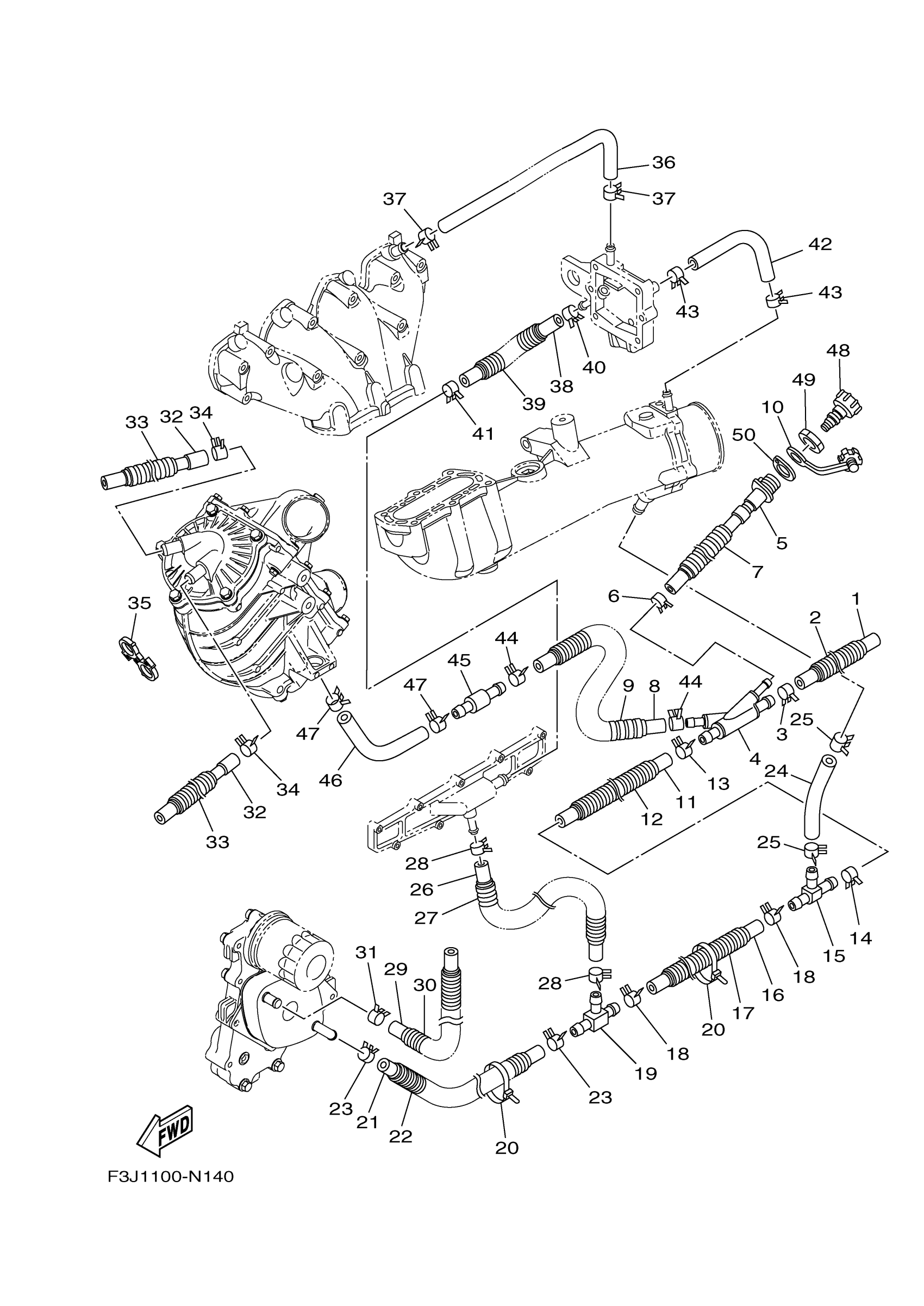

Yamaha FC1800N (FX SVHO) F3J4 2014 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.49

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A3-00

$6.07

4

JOINT, HOSE 1

6ET-12581-10-00

$30.87

5

JOINT ASSY

6CS-12580-00-00

$110.28

6

CLIP

90467-150A5-00

$2.56

7

TUBE (L485)

90447-19801-00

$3.46

8

HOSE (L970)

90445-21807-00

$13.96

9

TUBE (L850)

90447-22802-00

$3.97

10

CAP,1

682-84385-01-00

$7.21

11

HOSE 2

6S5-1243E-01-00

$19.23

12

TUBE

F2T-U773D-00-00

$1.32

13

CLIP

90467-200A3-00

$6.07

14

CLIP

90467-200A3-00

$6.07

15

JOINT, HOSE 3

6BH-12584-00-00

$4.55

16

HOSE (L220)

90445-18017-00

$13.22

17

HOSE, WITH SPRING

90447-19004-00

Unavailable

18

CLIP

90467-160A0-00

$3.03

19

JOINT, HOSE 2

6ET-12582-00-00

$4.85

20

CLAMP(3XW)

90464-35132-00

Unavailable

21

HOSE (L220)

90445-18017-00

$13.22

22

HOSE, WITH SPRING

90447-19004-00

Unavailable

23

CLIP

90467-160A0-00

$3.03

24

HOSE 6

6S5-12589-01-00

Unavailable

25

CLIP

90467-200A3-00

$6.07

26

HOSE 5

6S5-1244H-00-00

$20.57

27

TUBE (L150)

90447-19011-00

$2.65

28

. CLIP

90467-150A1-00

$3.41

29

HOSE 5

6CS-12588-00-00

$27.19

30

TUBE (L760)

90447-19018-00

$8.81

31

CLIP

90467-160A0-00

$3.03

32

HOSE 8

6CS-12552-00-00

$20.57

33

TUBE

F3J-U773D-00-00

$4.63

34

CLIP

90467-170A4-00

$2.13

35

CLAMP

90464-24003-00

$2.65

36

HOSE 2

6BH-12577-00-00

$20.57

37

CLIP

90467-160A0-00

$3.03

38

HOSE 4

6S5-12579-00-00

$19.10

39

TUBE (L150)

90447-19011-00

$2.65

40

CLIP

90467-160A0-00

$3.03

41

CLIP

90467-170A5-00

$3.79

42

HOSE (L220)

90445-16013-00

$11.01

43

CLIP

90467-160A0-00

$3.03

44

CLIP

90467-200A3-00

$6.07

45

JOINT, HOSE 4

6S5-12594-00-00

$4.41

46

HOSE 1

6S5-12576-01-00

$22.04

47

CLIP

90467-200A3-00

$6.07

48

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

49

NUT

EU0-61652-00-00

$11.77

50

PACKING

F2S-U7525-01-00

Unavailable
