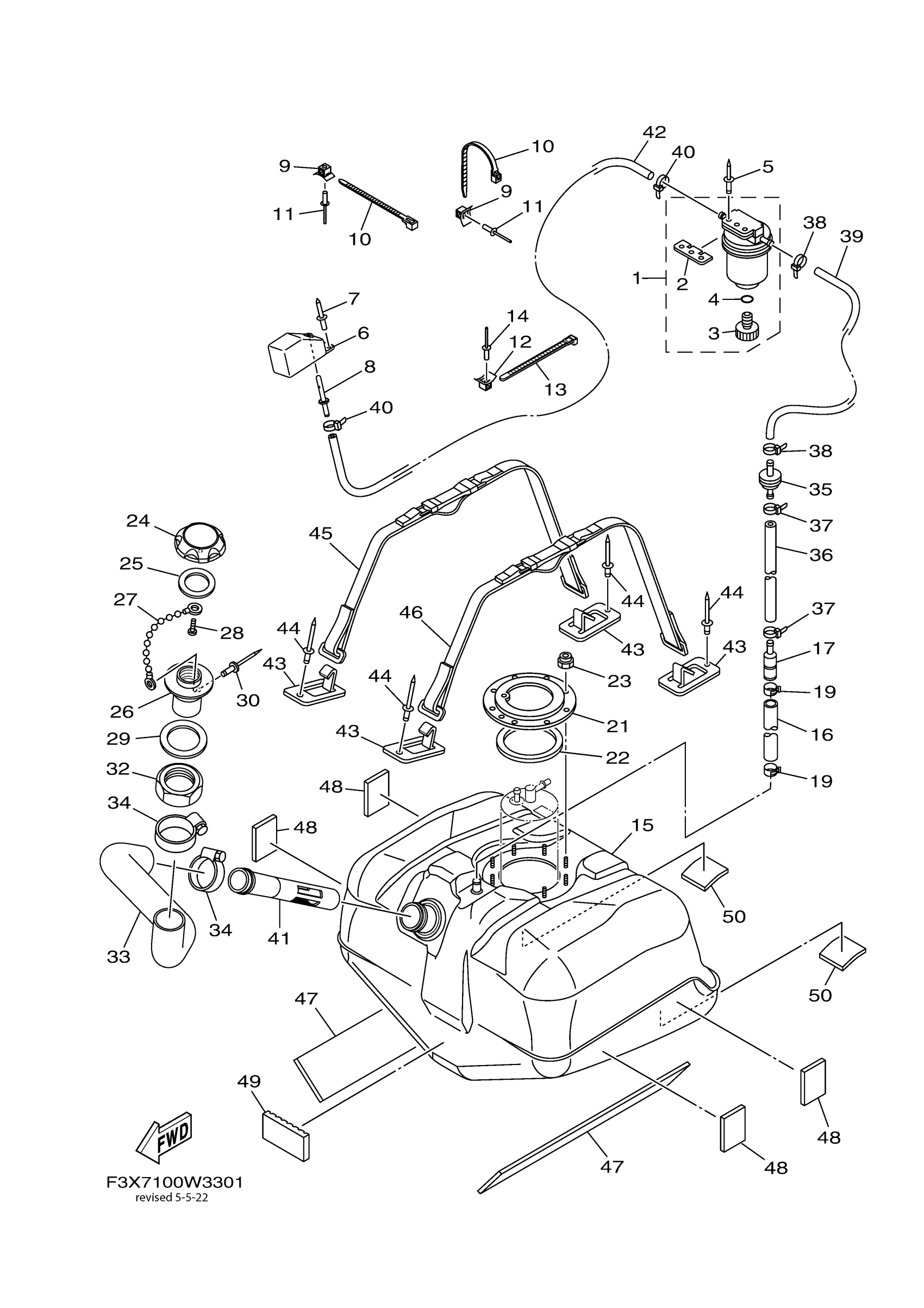

Yamaha FC1800BW (FX LIMITED SVHO) F3X9 2021 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

2

. PLATE, FILTER

EW2-62142-00-00

$44.76

3

. PLUG, DRAIN

70R-24543-00-00

$8.94

4

. O-RING

70R-24489-00-00

$4.93

5

RIVET, BLIND

90267-489U2-00

$1.51

6

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

7

RIVET, BLIND

90267-489U6-00

Unavailable

8

PIPE, VENTILATION

F1G-62149-00-00

$11.18

9

BASE, CLAMP

F1W-U828M-00-00

$1.29

10

CLAMP

90464-32801-00

$1.29

11

RIVET, BLIND

90267-48806-00

$2.16

12

BASE, CLAMP

F1W-U828M-00-00

$1.29

13

CLAMP

90464-32801-00

$1.29

14

RIVET, BLIND

90267-48806-00

$2.16

15

TANK, FUEL

F4P-U7711-00-00

$250.73

16

HOSE, AIR VENT

F4P-U785G-00-00

$2.61

17

CONNECTOR

F4P-U8167-10-00

Unavailable

19

CLIP

90467-190A2-00

$3.02

21

RING

F1B-U7773-00-00

$22.25

22

PACKING, SEAL

F1B-67747-00-00

$17.09

23

NUT, NYLON

9572R-06300-00

$2.93

24

CAP, FUEL FILLER

F2N-U7831-10-00

$22.25

25

PACKING

GP7-U7832-01-00

$5.62

26

SOCKET

GP7-U7833-11-00

$11.48

27

CHAIN BALL

GP7-U7835-00-00

$4.72

28

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.29

29

PACKING FUEL FILLER

GP7-U7834-00-00

$12.34

30

RIVET, BLIND

90267-329UR-00

$1.23

32

NUT, FUEL FILLER

GP7-U783F-00-00

$4.96

33

HOSE

F3X-U7844-01-00

Unavailable

34

BAND, HOSE 55

90601-155U4-00

$6.17

35

CHECK VALVE

F3Y-U7767-00-00

$24.39

36

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.19

37

CLAMP

90465-10098-00

$2.24

38

CLAMP

90465-10098-00

$2.24

39

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

40

CLAMP

90465-10098-00

$2.24

41

TUBE

F4L-U773D-00-00

$26.85

42

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

43

HOOK A

F1K-U5772-04-00

$6.19

44

RIVET (EU0)

90267-48938-00

$4.72

45

BELT, TANK 1

F2S-67743-01-00

$51.70

46

BELT, TANK 1

F2S-67743-01-00

$51.70

47

MAT 1

F2S-U759B-00-00

$3.81

48

MAT 2

F1W-U759C-01-00

$2.46

49

MAT 2

F1K-U759C-00-00

$1.80

50

MAT 2

F1K-U759C-00-00

$1.80
