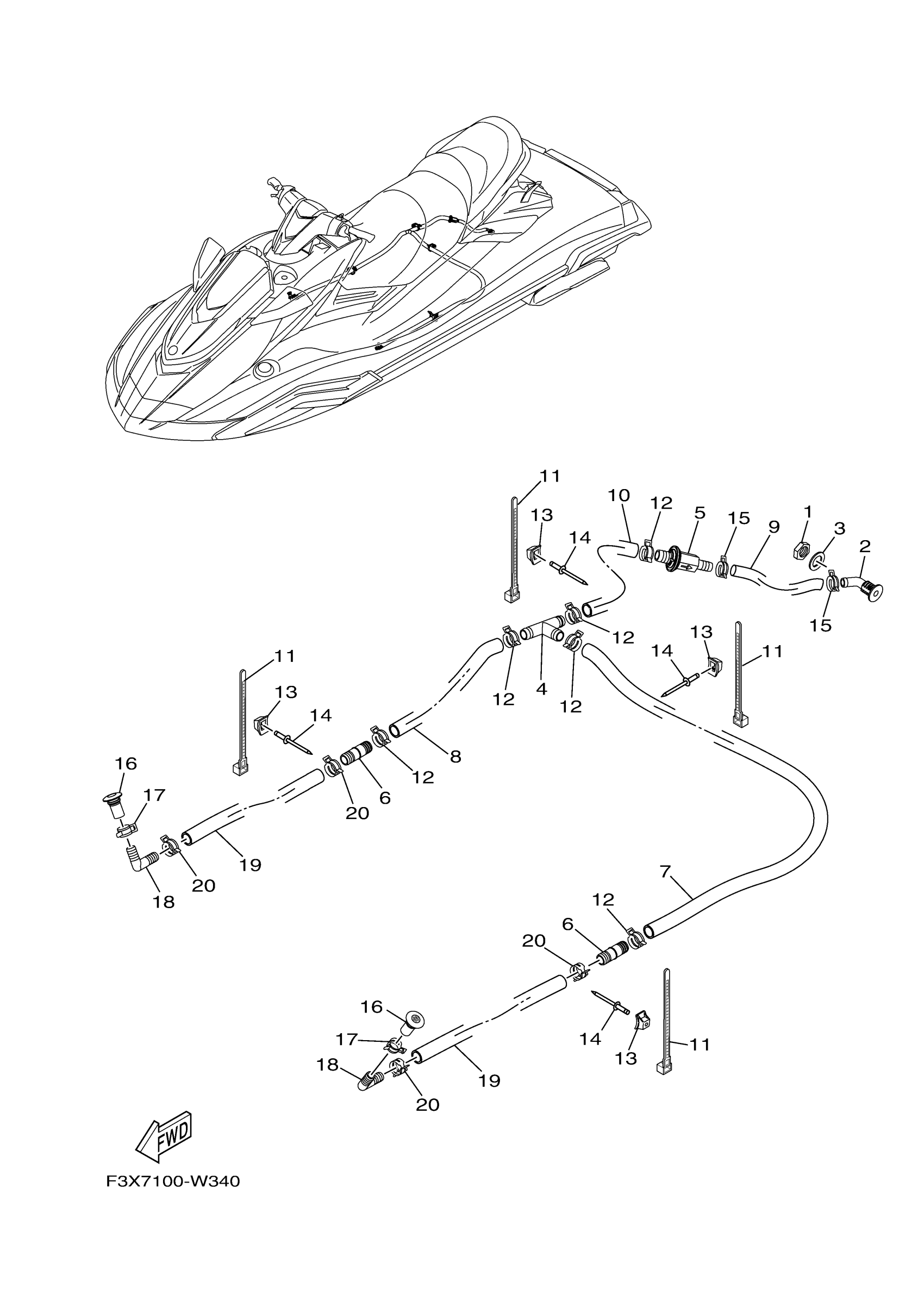

Yamaha FC1800BW (FX LIMITED SVHO) F3X9 2021 BILGE PUMP Diagram

#

Description
Price

1

NUT, DRAIN 1

F3X-U224B-00-00

$0.93

2

BODY, DRAIN 1

F3X-U224C-00-00

$1.58

3

GASKET

F3X-U7564-00-00

$1.23

4

JOINT,HOSE

F3X-U7857-00-00

$2.30

5

CHECK VALVE

F3X-U7767-00-00

$14.35

6

JOINT, DRAIN

F3X-U7617-00-00

$1.58

7

HOSE, DRAIN 2

F3X-U7629-10-00

$11.18

8

HOSE, DRAIN

F3X-U2249-10-00

$12.67

9

HOSE, DRAIN 3

F3X-U7628-10-00

$2.61

10

HOSE 1

F3X-U7626-10-00

$4.93

11

CLAMP

90464-32801-00

$1.29

12

CLIP

90467-190A2-00

$3.02

13

BASE, CLAMP

F1W-U828M-00-00

$1.29

14

RIVET, BLIND

90267-48802-00

$1.98

15

CLIP

90467-17802-00

$3.02

16

PLUG,DRAIN

F4P-U2255-00-00

$1.43

17

CLIP

90467-150A5-00

$2.58

18

CONNECTOR

F3X-U8377-00-00

$1.51

19

HOSE, DRAIN

F3X-U2249-10-00

$12.67

20

CLIP

90467-190A2-00

$3.02
