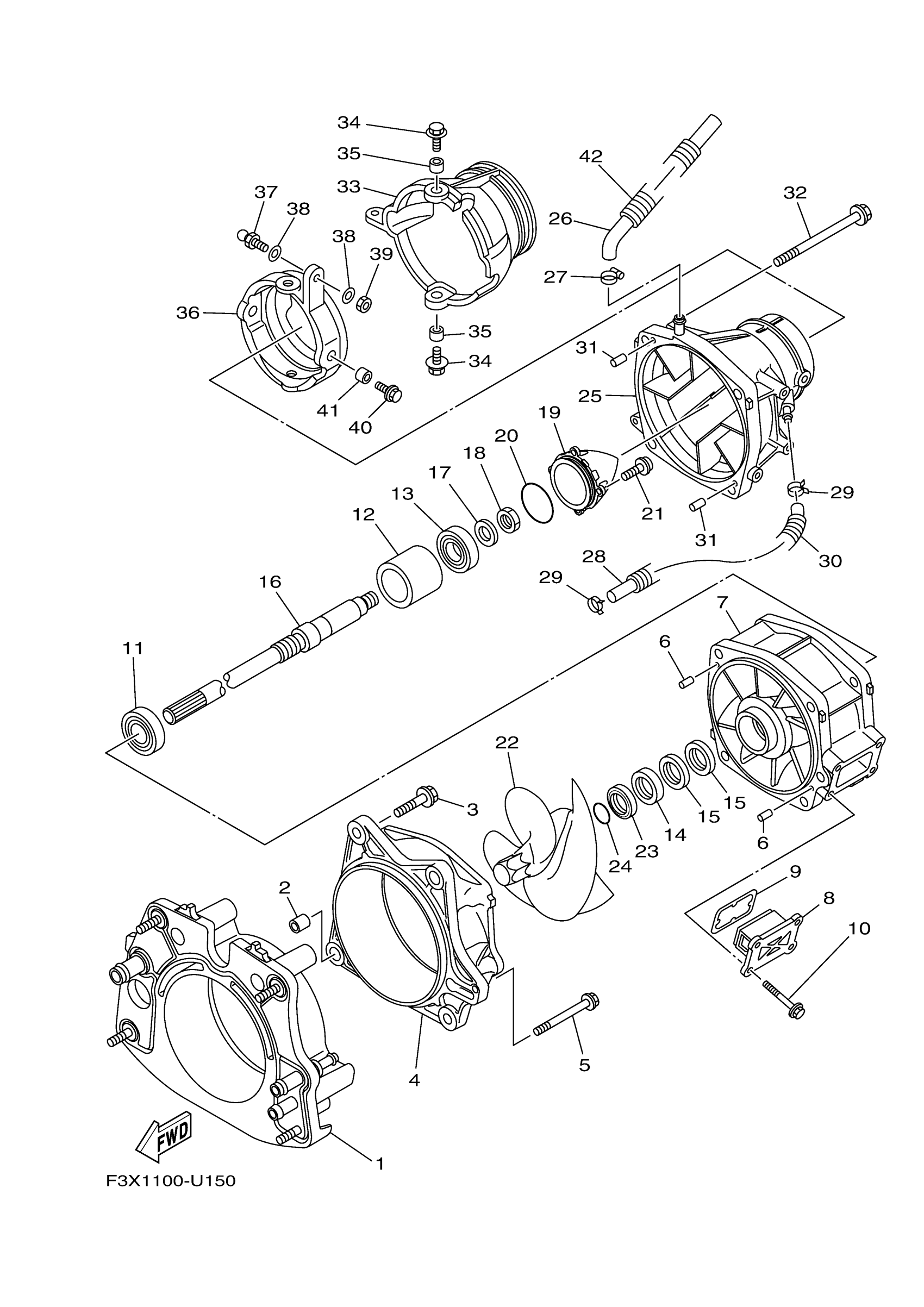

Yamaha FC1800BU (FX LIMITED SVHO) F3X3 2019 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6ET-G5831-20-00

$142.41

2

PIN, DOWEL(4JT)

99590-14016-00

$3.41

3

BOLT, WITH WASHER

90119-10811-00

$1.37

4

HOUSING, IMPELLER

99999-04523-00

Unavailable

5

BOLT, WITH WASHER

90119-06894-00

$1.37

6

PIN, DOWEL (614)

93606-12019-00

$3.05

7

DUCT, IMPELLER

6ET-51315-00-00

$298.86

8

FILTER

6ET-G6882-10-00

$9.08

9

. O-RING

66V-42414-00-00

$5.18

10

BOLT,WITH WASHER

90119-06890-00

$1.07

11

BEARING

93306-20654-00

$62.23

12

SPACER 1

6CS-G5538-00-00

$33.01

13

BEARING(3RR)

93306-30560-00

Unavailable

14

. OIL SEAL

93102-31009-00

$80.29

15

. OIL SEAL

93101-31001-00

$32.99

16

SHAFT, DRIVE

6ET-G5511-00-00

$337.86

17

WASHER

92990-20600-00

$5.00

18

NUT

95312-20700-00

$10.36

19

CAP

6ET-R1326-00-00

$16.50

20

O-RING

93210-54010-00

$2.64

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

22

IMPELLER

6ET-R1321-00-00

$238.59

23

SPACER

6BH-R1348-00-00

$21.26

24

O-RING (30X)

93210-30611-00

Unavailable

25

NOZZLE

6ET-R1318-00-00

$77.80

26

HOSE 1

6CS-U72M2-00-00

$6.68

27

BAND, HOSE 18

90601-118UF-00

$2.07

28

HOSE

6ET-U215E-00-00

$5.23

29

CLAMP

90465-10098-00

$1.68

30

HOSE, WITH SPRING (L205)

90447-15001-00

$3.64

31

PIN, DOWEL (614)

93606-12019-00

$3.05

32

BOLT, WITH WASHER

90119-10807-00

$5.44

33

NOZZLE, DEFLECTOR

6S5-R1313-01-00

$23.67

34

BOLT, WITH WASHER

90119-08852-00

$3.79

35

COLLAR(6R7)

90387-08M06-00

Unavailable

36

RING,TRIM

6AN-R1190-00-00

$21.53

37

STUD, JOINT BALL

6ET-U1461-10-00

$1.94

38

WASHER,PLATE

90201-068M4-00

Unavailable

39

NUT(650)

95380-06700-00

Unavailable

40

BOLT, WITH WASHER

90119-08852-00

$3.79

41

COLLAR(6R7)

90387-08M06-00

Unavailable

42

TUBE

6CN-U773D-01-00

$2.95
