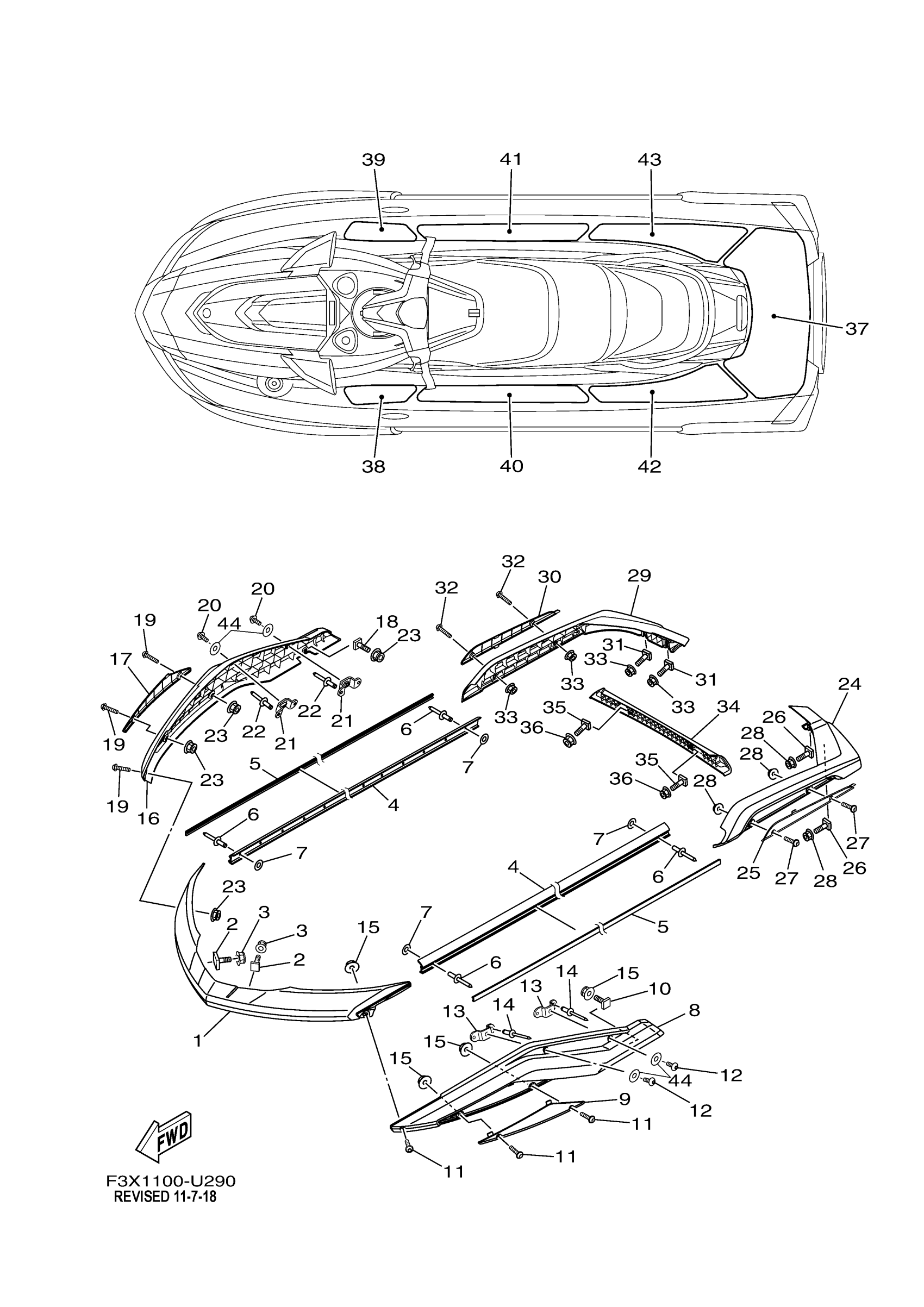

Yamaha FC1800BU (FX LIMITED SVHO) F3X3 2019 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-11-00

$36.30

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F3X-U2512-00-00

$25.74

5

INNER,GUNWALE

F3X-U2519-20-00

$17.77

6

RIVET, BLIND

90267-489U8-00

$0.99

7

WASHER

9299R-05200-00

$3.16

8

JOINT, GUNWALE LH

F3X-U252E-10-00

$37.78

9

GUNWALE INSIDE

F3X-U2514-00-00

$10.75

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

SCREW

F4G-U7823-00-00

Unavailable

13

BRACKET

F3X-U4949-00-00

$2.52

14

RIVET, BLIND

90267-489U6-00

$1.37

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

JOINT, GUNWALE RH

F3X-U252F-10-00

$37.78

17

GUNWALE INSIDE

F3X-U2514-10-00

$10.75

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

SCREW

F3X-U7823-12-00

$1.25

20

SCREW

F4G-U7823-00-00

Unavailable

21

BRACKET

F3X-U4949-00-00

$2.52

22

RIVET, BLIND

90267-489U6-00

$1.37

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

GUNWALE, STERN 1

F3X-U251D-10-00

$31.80

25

INNER GUNWALE, AFT

F3X-U255C-00-00

$5.15

26

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

27

SCREW

F3X-U7823-12-00

$1.25

28

NUT, LOCK

F2N-U142L-00-00

$1.00

29

GUNWALE, STERN 2

F3X-U251E-10-00

$31.80

30

INNER GUNWALE, AFT

F3X-U255C-10-00

$5.15

31

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

32

SCREW

F3X-U7823-12-00

$1.25

33

NUT, LOCK

F2N-U142L-00-00

$1.00

34

COVER, GUNWALE 1

F3X-U252C-01-00

$10.04

35

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

36

NUT, LOCK

F2N-U142L-00-00

$1.00

37

MAT, UPPER

F3X-U3581-01-00

$70.39

38

MAT, STEP 1

F3X-U351H-00-00

$31.80

39

MAT, STEP 2

F3X-U351J-00-00

$31.80

40

MAT, STEP 3

F3X-U351K-00-00

$45.44

41

MAT, STEP 4

F3X-U351M-00-00

$45.44

42

MAT, STEP 5

F3X-U351N-00-00

$46.95

43

MAT, STEP 6

F3X-U351P-00-00

$46.95

44

WASHER, PLATE

90201-06805-00

$0.61
