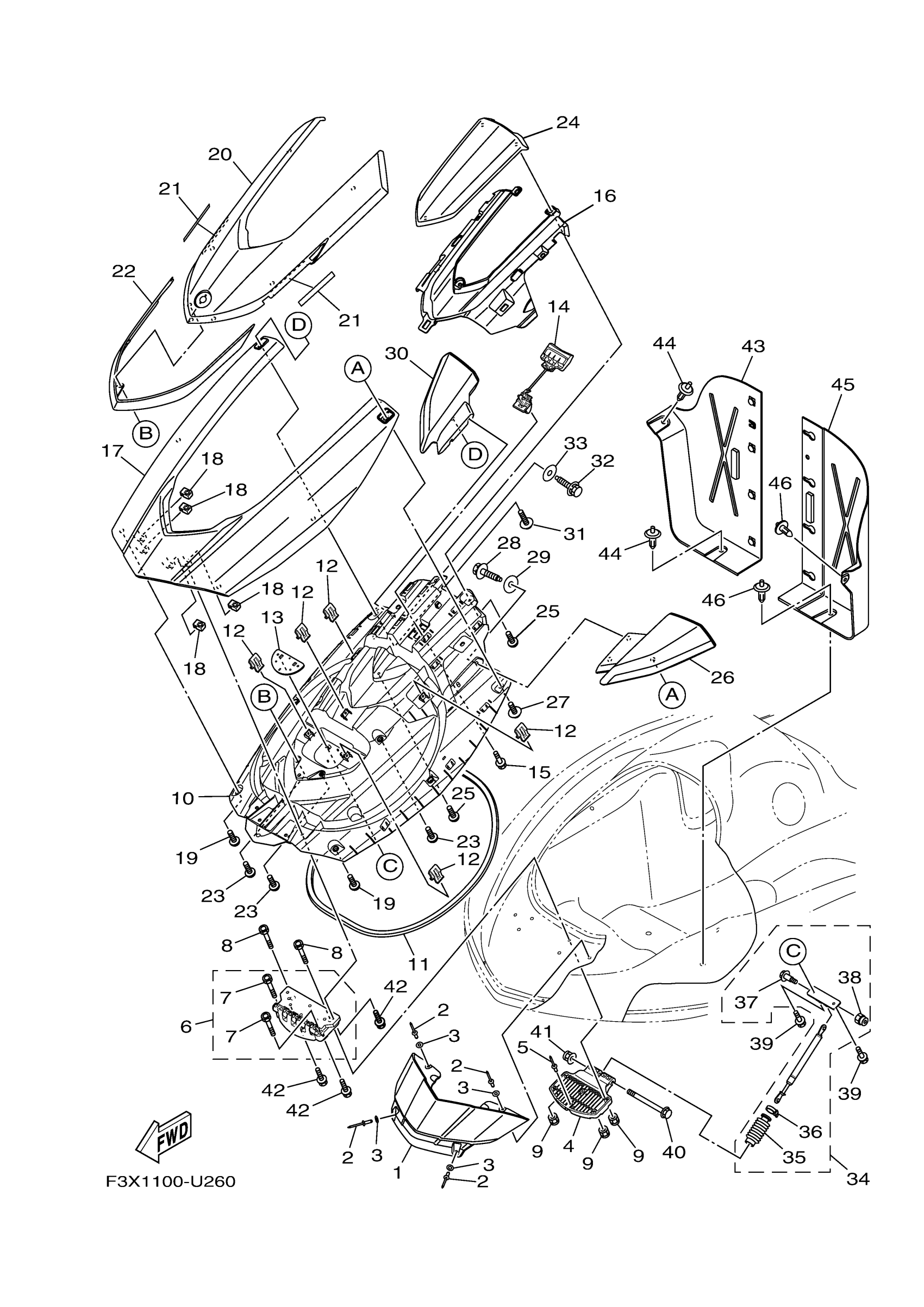

Yamaha FC1800BU (FX LIMITED SVHO) F3X3 2019 ENGINE HATCH 2 Diagram

#

Description
Price

1

COVER, FRONT (DRM13)

F3X-U513M-01-P2

Unavailable

2

RIVET, BLIND

90267-489U6-00

Unavailable

3

WASHER

9299R-05200-00

$4.60

4

PLATE, HINGE LID

F3X-U518E-00-00

$21.31

5

RIVET, BLIND

90267-489U6-00

Unavailable

6

HINGE, LID

F3X-U517D-01-00

$27.93

7

BOLT

F3X-U3222-00-00

$0.79

8

BOLT

F3X-U3222-00-00

$0.79

9

NUT, LOCK

F2N-U142L-00-00

$1.43

10

INNER, ENGINE HATCH

F3X-U519G-00-00

$79.40

11

PACKING 1

F3X-U2663-10-00

Unavailable

12

CLIP

F3Y-U153K-00-00

$1.37

13

PLATE, HATCH

F3X-U5148-00-00

$7.13

14

LOCK, LID

F3X-U517C-00-00

$28.70

15

BOLT, WITH WASHER (EW3)

90119-05912-00

$3.84

16

OUTER, ENGINE HATCH

F3X-U519F-00-00

$28.66

17

LID, ENGINE ROOM (DRM13)

F3X-U517B-00-P2

$360.28

18

NUT

F3X-U517E-00-00

$1.29

19

SCREW

F2S-U13C1-00-00

$2.52

20

VISOR

F3X-U515N-01-P3

Unavailable

21

DAMPER 2

F0X-U515E-02-00

Unavailable

22

ORNAMENT, CENTER

F3X-U517V-00-00

$25.72

23

SCREW

F2S-U13C1-00-00

$2.52

24

VISOR, 2

F3X-U515P-10-00

$22.78

25

SCREW

F2S-U13C1-00-00

$2.52

26

MIRROR ASSY. 1

F3X-U590D-30-00

$114.69

27

SCREW

F3X-U7823-12-00

$1.25

28

BOLT, WITH WASHER

90119-06880-00

$3.65

29

WASHER, PLATE

90201-068G0-00

$0.74

30

MIRROR ASSY. 2

F3X-U590E-30-00

$114.69

31

SCREW

F3X-U7823-12-00

$1.25

32

BOLT, WITH WASHER

90119-06880-00

$3.65

33

WASHER, PLATE

90201-068G0-00

$0.74

34

DAMPER ASSY

F2S-6514S-00-00

$199.11

35

. COVER, DAMPER

F1W-6514T-00-00

$23.51

36

BAND

1UA-82591-00-00

Unavailable

37

BOLT

90109-06218-00

$10.28

38

NUT, SELF-LOCKING

95720-06300-00

$1.76

39

BOLT, WITH WASHER

90119-06830-00

Unavailable

40

BOLT, SPECIAL

F3X-U491K-00-00

$2.21

41

NUT, LOCK

F3Y-U142L-00-00

$2.66

42

BOLT, WITH WASHER

90119-06896-00

$5.23

43

LOCKER,BOW

F3X-U475B-00-00

$22.78

44

RIVET

90269-08801-00

$1.23

45

PLATE, LOKER BOW

F3X-U475F-00-00

$22.78

46

RIVET

90269-08801-00

$1.23
