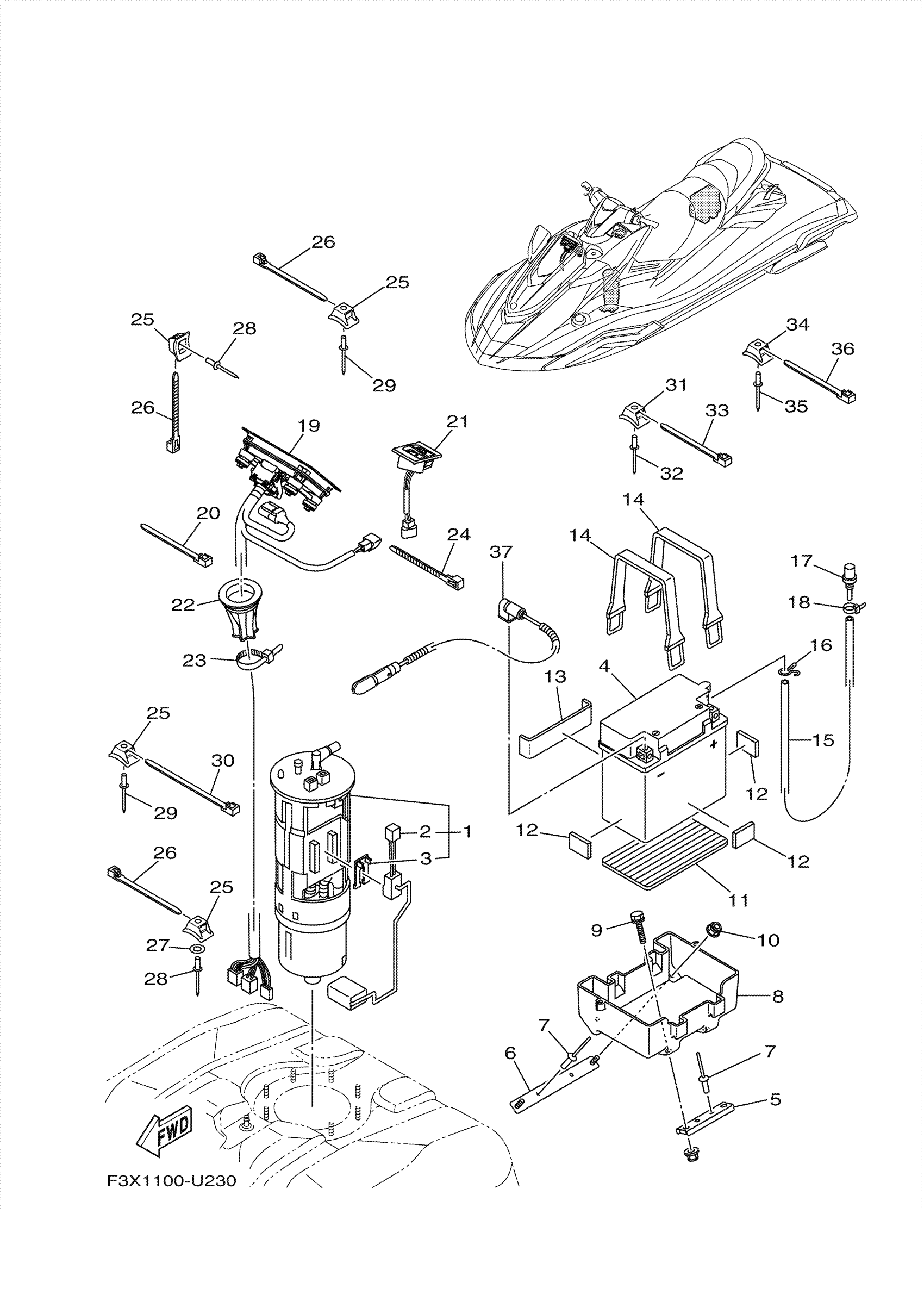

Yamaha FC1800BU (FX LIMITED SVHO) F3X3 2019 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$175.51

5

PLATE, BASE 2

F2S-U8592-00-00

$5.75

6

PLATE, BASE 3

F2S-U8593-00-00

$5.37

7

RIVET (EU0)

90267-48938-00

$4.72

8

CASE, BATTERY

F2S-U8211-00-00

$10.07

9

BOLT, WITH WASHER

90119-06820-00

$3.65

10

NUT, LOCK

F2N-U142L-00-00

$1.00

11

PAD, BATTERY

F1S-U8221-00-00

$2.88

12

PAD, BATTERY

EU0-U8221-31-00

$1.80

13

PAD, BATTERY

F1K-U8221-00-00

$2.80

14

BAND,BATTERY 1

EU0-U821D-00-00

$10.28

15

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

16

CLIP

90467-089U1-00

$1.42

17

NIPPLE

GJ3-6215F-00-00

$8.94

18

CLAMP

90465-10098-00

$2.24

19

METER ASSY

F3X-U822A-09-00

Unavailable

20

CLAMP

90464-32801-00

$1.29

21

SWITCH ASSY.

F3X-68090-00-00

$149.24

22

GROMMET

F3J-U822E-01-00

$5.87

23

CLAMP

90464-32801-00

$1.29

24

CLAMP

90464-32801-00

$1.29

25

BASE, CLAMP

F1W-U828M-00-00

$1.29

26

CLAMP

90464-32801-00

$1.29

27

WASHER

9299R-05200-00

$4.60

28

RIVET, BLIND

90267-489U6-00

Unavailable

29

RIVET, BLIND

90267-489U6-00

Unavailable

30

CLAMP

90464-99804-00

$4.10

31

BASE, CLAMP

F1W-U828M-00-00

$1.29

32

RIVET, BLIND

90267-489U6-00

Unavailable

33

CLAMP

90464-32801-00

$1.29

34

BASE, CLAMP

F1W-U828M-00-00

$1.29

35

RIVET, BLIND

90267-489U6-00

Unavailable

36

CLAMP

90464-32801-00

$1.29

37

WIRE, MINUS LEAD

6JP-82116-00-00

$64.16
