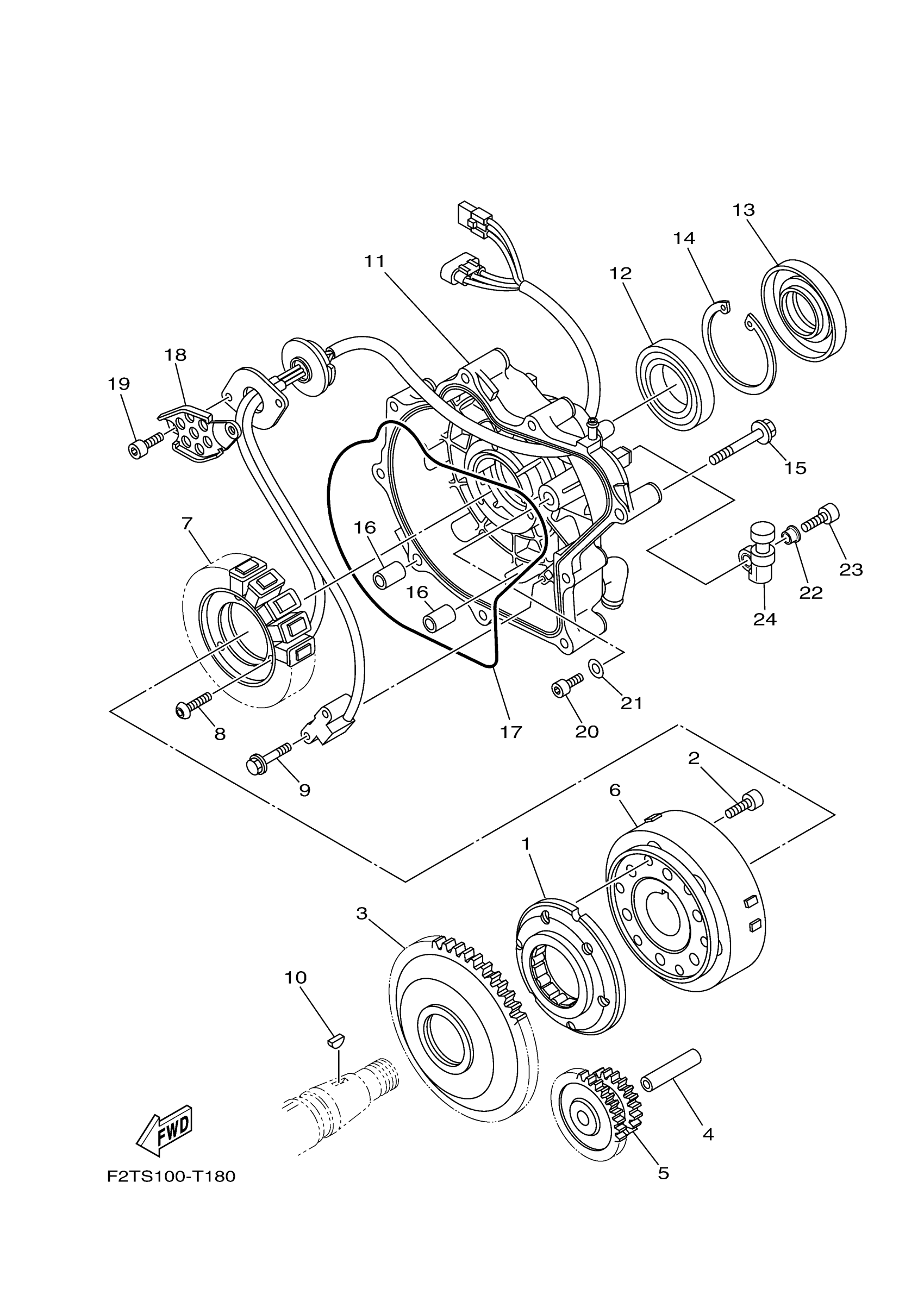

Yamaha FC1800BT (FX LIMITED SVHO) F3JW 2018 GENERATOR Diagram

#

Description
Price

1

STARTER ONE-WAY ASSY

6S5-15590-00-00

$208.23

2

BOLT, SOCKET

91317-08020-00

$2.19

3

GEAR 3

6LE-15515-00-00

$265.99

4

SHAFT 1

6S5-15521-00-00

$10.43

5

GEAR, IDLER 2

6S5-15517-00-00

$150.73

6

ROTOR ASSY

6S5-81450-01-00

$372.01

7

STATOR ASSY

6ET-81410-00-00

$343.99

8

SCREW

90149-06182-00

$6.48

9

BOLT, WITH WASHER

97513-05514-00

$3.58

10

KEY, WOODRUFF(1WG)

90280-03047-00

$4.54

11

COVER, FLYWHEEL

6S5-81337-31-00

$259.69

12

BEARING

93306-00809-00

$57.81

13

OIL SEAL

6LE-81167-00-00

$56.23

14

CIRCLIP (70R)

93420-72065-00

$6.83

15

BOLT, FLANGE

90105-08249-00

$2.16

16

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

17

. O-RING

6S5-81168-00-00

$32.67

18

CLAMP

6S5-81328-00-00

$8.19

19

BOLT,SOCKET

91317-06014-00

Unavailable

20

BOLT, SOCKET

91317-05010-00

Unavailable

21

WASHER, PLATE (7N7)

90201-052E8-00

Unavailable

22

COLLAR

90387-06M05-00

$6.83

23

. BOLT

91380-06020-00

$1.94

24

. GROMMET

6S5-81364-11-00

$4.93
