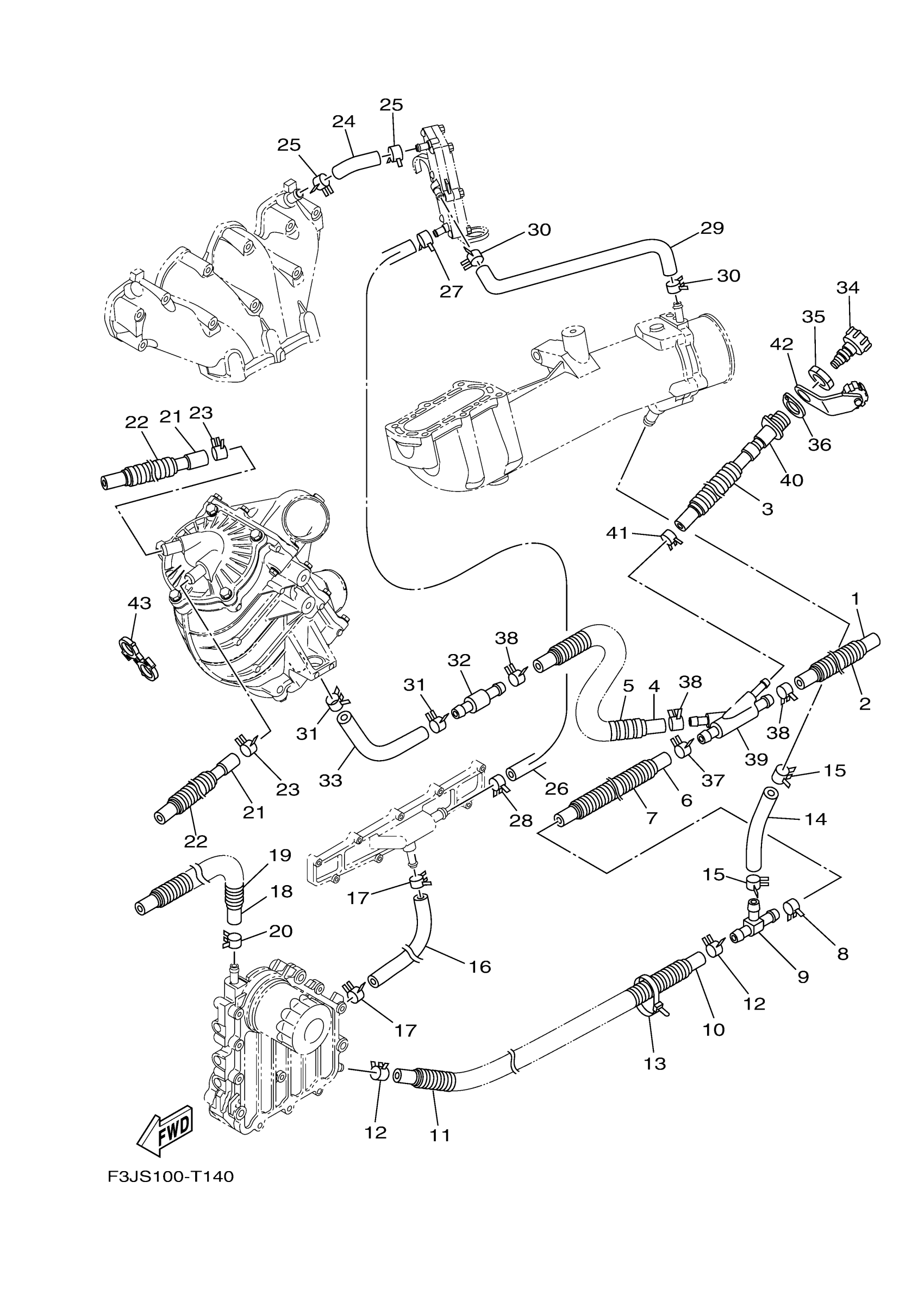

Yamaha FC1800BT (FX LIMITED SVHO) F3JW 2018 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.86

2

TUBE

F2T-U773D-20-00

Unavailable

3

TUBE (L485)

90447-19801-00

$3.56

4

HOSE (L970)

90445-21807-00

$14.38

5

TUBE (L850)

90447-22802-00

$4.09

6

HOSE 2

6S5-1243E-01-00

$22.11

7

TUBE

F2T-U773D-00-00

$1.36

8

CLIP

90467-200A3-00

$5.92

9

JOINT, HOSE 3

6BH-12584-00-00

$4.44

10

HOSE (L400)

90445-18012-00

$24.98

11

TUBE (L260)

90447-19005-00

$3.64

12

CLIP

90467-160A0-00

$2.95

13

CLAMP(3XW)

90464-35132-00

$6.77

14

HOSE 6

6S5-12589-01-00

Unavailable

15

CLIP

90467-200A3-00

$5.92

16

HOSE 5

6BH-1244H-00-00

$20.99

17

. CLIP

90467-150A1-00

$3.33

18

HOSE 5

6CS-12588-00-00

$27.99

19

TUBE (L760)

90447-19018-00

$9.08

20

CLIP

90467-160A0-00

$2.95

21

HOSE 8

6CS-12552-00-00

$20.99

22

TUBE

F3J-U773D-00-00

$4.77

23

CLIP

90467-170A4-00

$2.04

24

HOSE 2

6ET-12577-00-00

$7.27

25

CLIP

90467-160A0-00

$2.95

26

HOSE 4

6ET-12579-00-00

$8.32

27

CLIP

90467-160A0-00

$2.95

28

CLIP

90467-170A5-00

$4.55

29

HOSE 1

6ET-12576-00-00

$13.99

30

CLIP

90467-160A0-00

$2.95

31

CLIP

90467-200A3-00

$5.92

32

JOINT, HOSE 4

6S5-12594-00-00

$4.55

33

HOSE 1

6S5-12576-01-00

$22.49

34

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

35

NUT

EU0-61652-00-00

$11.48

36

PACKING

F2S-U7525-01-00

Unavailable

37

CLIP

90467-200A3-00

$5.92

38

CLIP

90467-200A3-00

$5.92

39

JOINT, HOSE 1

6ET-12581-10-00

$31.80

40

JOINT ASSY

6CS-12580-00-00

$113.62

41

CLIP

90467-150A5-00

$2.64

42

CAP,1

6EY-84385-00-00

$10.36

43

CLAMP

90464-24003-00

$2.73
