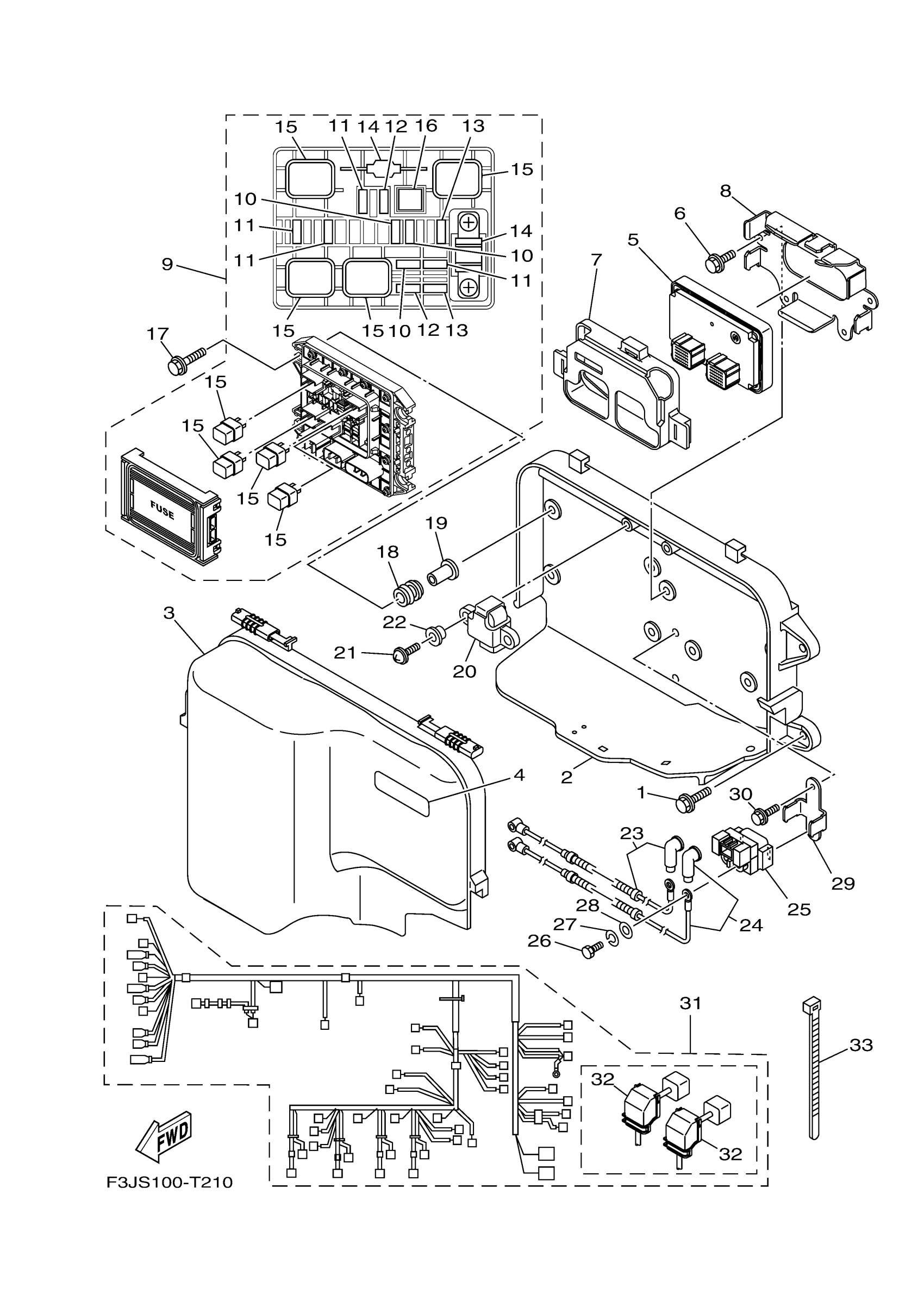

Yamaha FC1800BT (FX LIMITED SVHO) F3JW 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.16

2

PLATE

6CS-81845-11-00

$87.86

3

COVER

6S5-81942-21-00

$87.47

4

LABEL, CAUTION 7

60E-83627-00-00

$4.55

5

ENGINE CONTROL UNIT ASSY

6ET-8591A-40-00

$1,849.98

6

BOLT, FLANGE

95814-06012-00

$2.13

7

GROMMET, ECU

6EY-8591S-00-00

$18.52

8

BRACKET

6ET-81948-00-00

$27.26

9

FUSE BOX ASSY

6EX-82170-02-00

$195.31

10

. FUSE (3A)

67F-82151-30-00

$4.69

11

. FUSE (10A)

67F-82151-40-00

$6.07

12

FUSE

5JJ-82151-20-00

$5.98

13

FUSE

5JJ-82151-60-00

$5.98

14

. FUSE (50A)

6EX-82151-00-00

$3.64

15

. RELAY ASSY

6EX-8195A-00-00

$15.55

16

. PULLER, FUSE

6EX-2812A-00-00

$1.36

17

BOLT, WITH WASHER

90119-06311-00

$1.58

18

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

19

. COLLAR

90387-06119-00

$4.37

20

SENSOR, LEAN ANGLE

6ET-82576-00-00

$50.01

21

SCREW, TAPPING

97780-60025-00

$5.45

22

COLLAR

90387-06M05-00

$6.45

23

WIRE, PLUS LEAD

6JP-82115-00-00

$47.99

24

WIRE, LEAD

6CS-82117-00-00

$63.65

25

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

26

BOLT(GH1)

97080-06012-00

$2.56

27

WASHER, SPRING

92995-06100-00

$2.95

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

STAY, RELAY

6CS-81953-00-00

$5.45

30

BOLT, FLANGE

95814-06012-00

$2.13

31

WIRE HARNESS ASSY 1

6ET-8259L-10-00

$1,260.59

32

. COVER, CONNECTOR

6EM-82599-00-00

$6.36

33

CLAMP

90465-14M66-00

Unavailable
