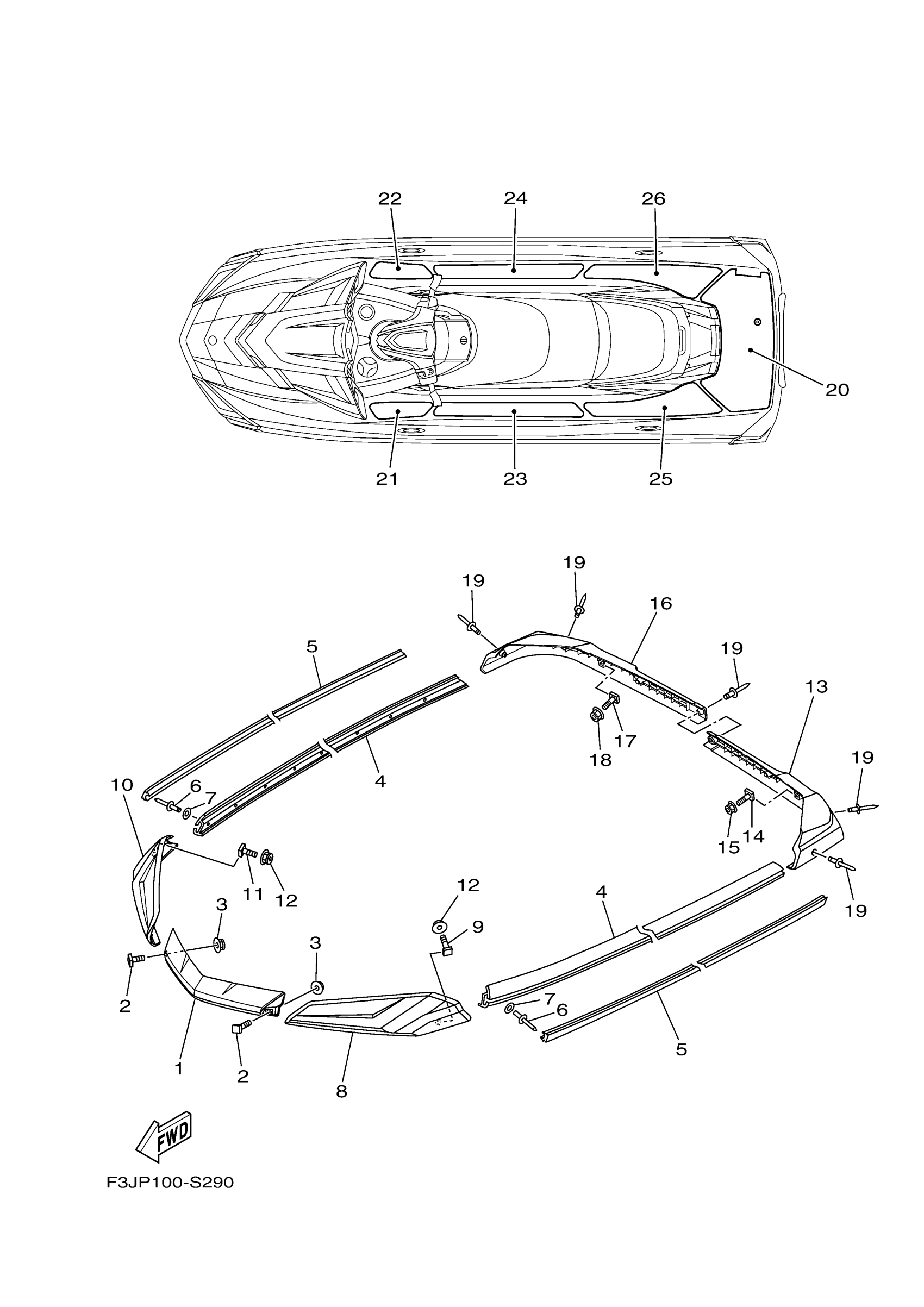

Yamaha FC1800BS (FX LIMITED SVHO) F3JP 2017 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F2S-U2511-30-00

$221.20

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F2S-U2512-30-00

$54.53

5

INNER,GUNWALE

F2S-U2519-01-00

$20.00

6

RIVET, BLIND

90267-489U8-00

$0.99

7

WASHER

9299R-05200-00

$3.16

8

JOINT, GUNWALE LH

F2S-U252E-30-00

$124.23

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

JOINT, GUNWALE RH

F2S-U252F-30-00

$124.23

11

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

12

NUT, LOCK

F2N-U142L-00-00

$1.00

13

GUNWALE, STERN 1

F2S-U251D-30-00

$149.98

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE, STERN 2

F2S-U251E-30-00

$21.20

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

RIVET, BLIND

90267-48825-00

$1.44

20

MAT, UPPER

F3J-U3581-00-00

$84.83

21

MAT, STEP 1

F3J-U351H-00-00

$36.35

22

MAT, STEP 2

F3J-U351J-00-00

$36.35

23

MAT, STEP 3

F3J-U351K-00-00

$44.45

24

MAT, STEP 4

F3J-U351M-00-00

$44.45

25

MAT, STEP 5

F3J-U351N-00-00

$59.08

26

MAT, STEP 6

F3J-U351P-00-00

$59.08
