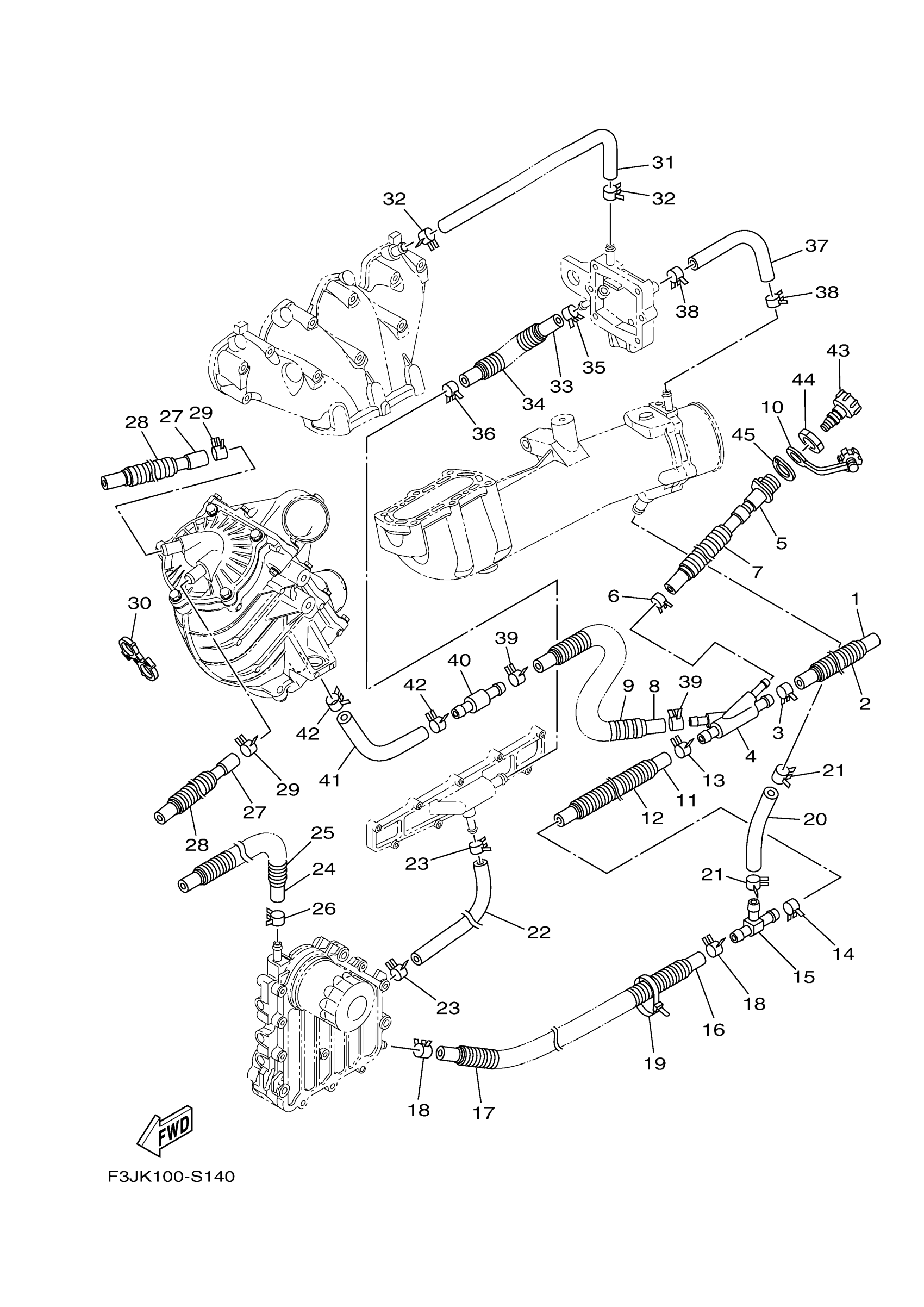

Yamaha FC1800BS (FX LIMITED SVHO) F3JP 2017 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.86

2

TUBE

F2T-U773D-20-00

Unavailable

3

CLIP

90467-200A3-00

$5.92

4

JOINT, HOSE 1

6ET-12581-10-00

$31.80

5

JOINT ASSY

6CS-12580-00-00

$113.62

6

CLIP

90467-150A5-00

$2.64

7

TUBE (L485)

90447-19801-00

$3.56

8

HOSE (L970)

90445-21807-00

$14.38

9

TUBE (L850)

90447-22802-00

$4.09

10

CAP,1

682-84385-01-00

$9.08

11

HOSE 2

6S5-1243E-01-00

$22.11

12

TUBE

F2T-U773D-00-00

$1.36

13

CLIP

90467-200A3-00

$5.92

14

CLIP

90467-200A3-00

$5.92

15

JOINT, HOSE 3

6BH-12584-00-00

$4.44

16

HOSE (L400)

90445-18012-00

$24.98

17

TUBE (L260)

90447-19005-00

$3.64

18

CLIP

90467-160A0-00

$2.95

19

CLAMP(3XW)

90464-35132-00

Unavailable

20

HOSE 6

6S5-12589-01-00

Unavailable

21

CLIP

90467-200A3-00

$5.92

22

HOSE 5

6BH-1244H-00-00

$20.99

23

. CLIP

90467-150A1-00

$3.33

24

HOSE 5

6CS-12588-00-00

$27.99

25

TUBE (L760)

90447-19018-00

$9.08

26

CLIP

90467-160A0-00

$2.95

27

HOSE 8

6CS-12552-00-00

$20.99

28

TUBE

F3J-U773D-00-00

$4.77

29

CLIP

90467-170A4-00

$2.04

30

CLAMP

90464-24003-00

$2.73

31

HOSE 2

6BH-12577-00-00

$20.99

32

CLIP

90467-160A0-00

$2.95

33

HOSE 4

6S5-12579-00-00

$14.44

34

TUBE (L150)

90447-19011-00

$2.73

35

CLIP

90467-160A0-00

$2.95

36

CLIP

90467-170A5-00

$4.55

37

HOSE (L220)

90445-16013-00

$11.35

38

CLIP

90467-160A0-00

$2.95

39

CLIP

90467-200A3-00

$5.92

40

JOINT, HOSE 4

6S5-12594-00-00

$4.55

41

HOSE 1

6S5-12576-01-00

$22.49

42

CLIP

90467-200A3-00

$5.92

43

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

44

NUT

EU0-61652-00-00

$11.48

45

PACKING

F2S-U7525-01-00

Unavailable
