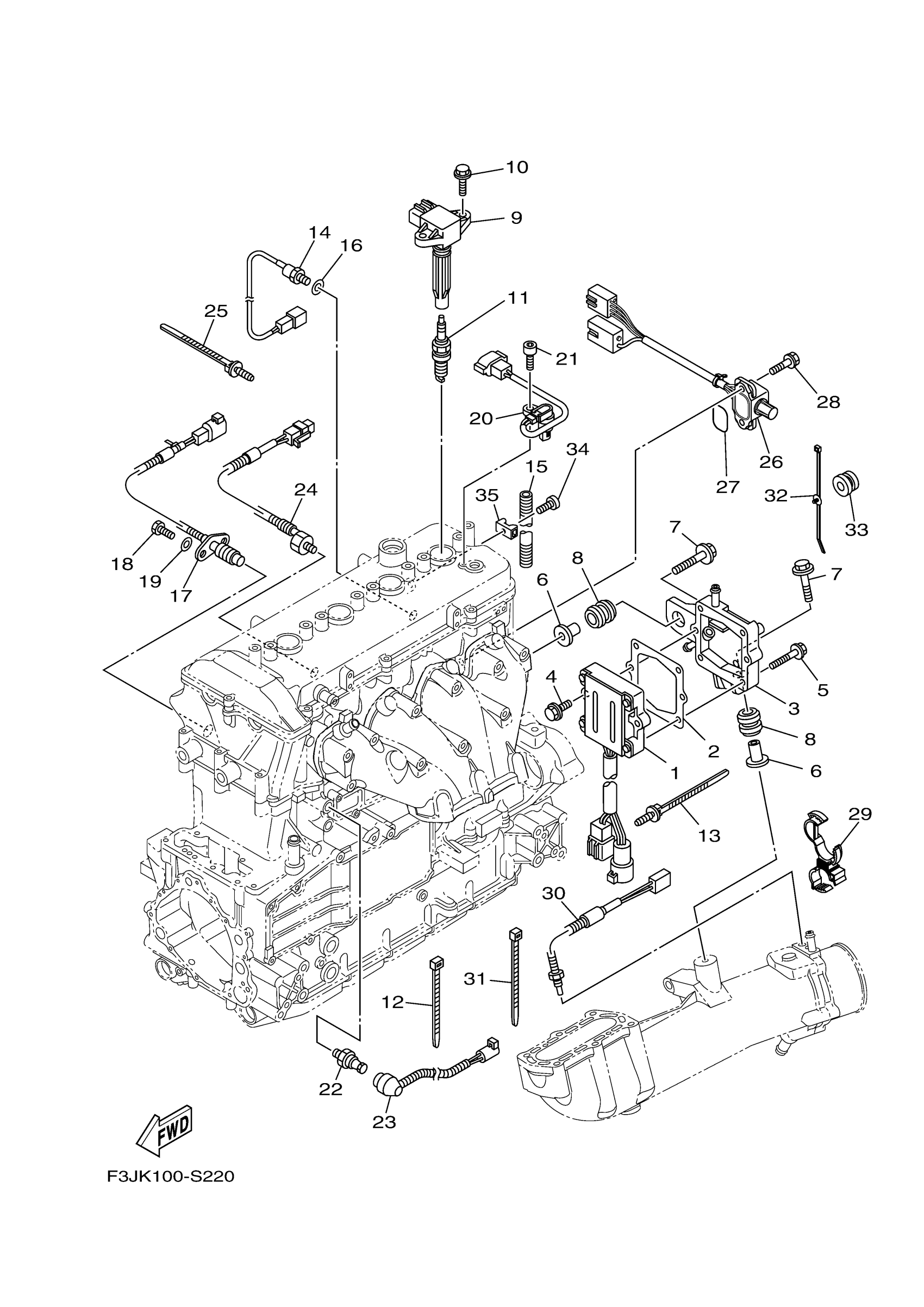

Yamaha FC1800BS (FX LIMITED SVHO) F3JP 2017 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

6S5-81960-11-00

$403.02

2

PLATE, RECTIFIER FITTING

6S5-81975-00-00

$11.99

3

COVER, RECTIFIER

6S5-81972-01-94

$148.47

4

BOLT, WITH WASHER

90119-06MA3-00

$2.80

5

BOLT, WITH WASHER

90119-06048-00

$2.27

6

COLLAR

90387-08M37-00

$9.81

7

BOLT, WITH WASHER

90119-08187-00

$3.17

8

GROMMET

90480-22M15-00

$10.18

9

IGNITION COIL ASSY

6S5-82310-10-00

$263.06

10

BOLT,FLANGE (EW2)

90105-06903-00

$5.00

11

PLUG, SPARK (NGK LFR7A)

LFR-7A000-00-00

$11.89

12

CLAMP

90465-13M18-00

$1.71

13

CLAMP

90464-20005-00

$2.11

14

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

15

HOSE (L350)

90446-10MH3-00

$5.79

16

WASHER, PLATE

92990-10600-00

$2.57

17

THERMO SWITCH ASSY

60E-82560-01-00

$104.53

18

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

SENSOR, CAM POSITION

60E-85896-02-00

$159.08

21

BOLT,SOCKET

91380-06016-00

Unavailable

22

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

23

LEAD WIRE ASSY

6S5-81315-01-00

$51.50

24

SENSOR, KNOCK

6AN-85780-01-00

$255.95

25

CLAMP

90464-20005-00

$2.11

26

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

27

O-RING (341)

93210-32172-00

Unavailable

28

BOLT, WITH WASHER

90119-06MA3-00

$2.80

29

CLAMP

90464-20008-00

Unavailable

30

THERMOSENSOR ASSY

6AA-85790-00-00

$104.60

31

CLAMP

90464-20005-00

$2.11

32

CLAMP

90464-31002-00

Unavailable

33

GROMMET 437147470000

90480-20132-00

Unavailable

34

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

35

BRACKET 1

60E-1244E-00-00

$7.27
