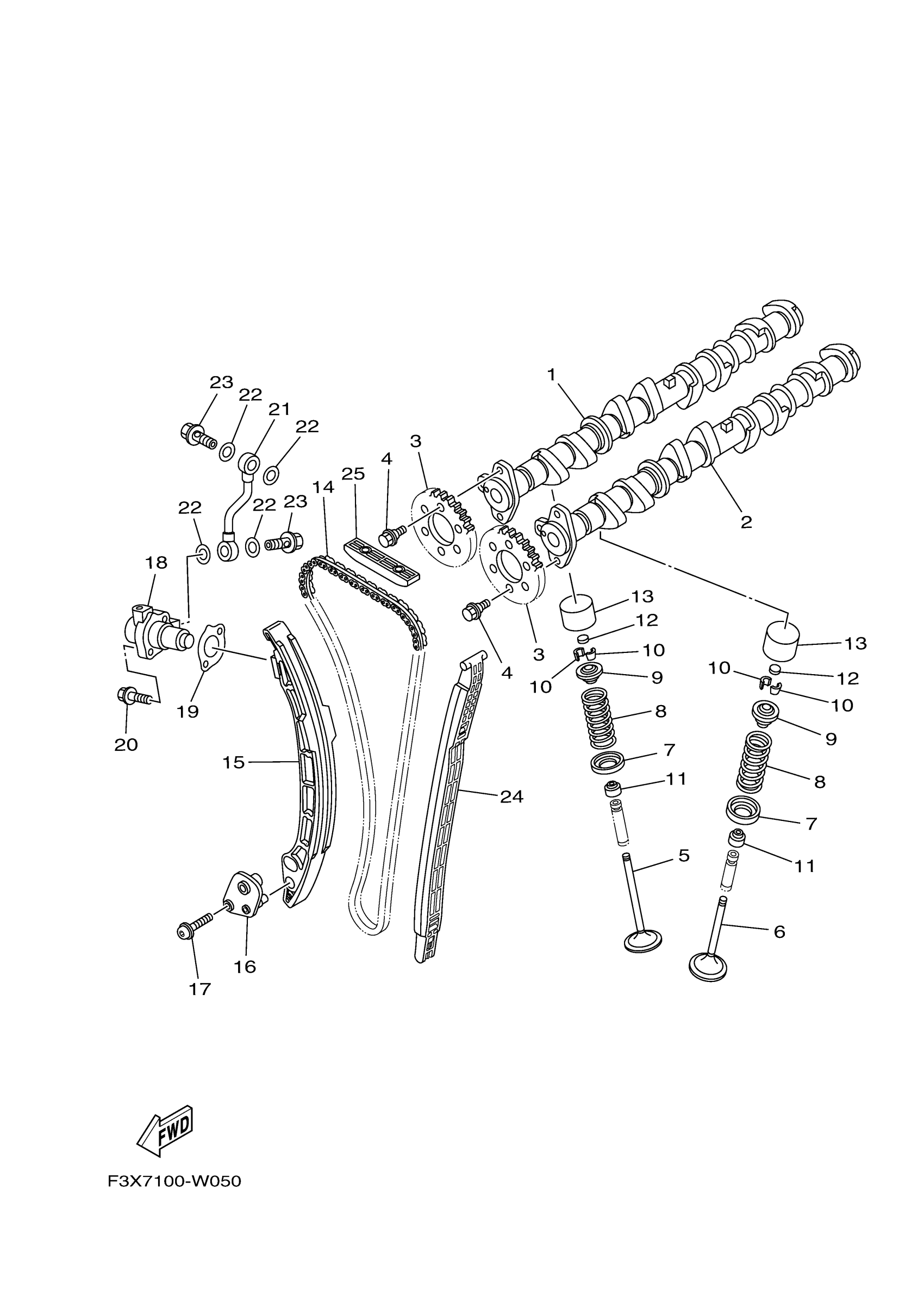

Yamaha FC1800AW (FX CRUISER SVHO) F3X7 2021 VALVE Diagram
#
1
CAMSHAFT 1
6S5-12171-10-00
Unavailable
2
CAMSHAFT 2
6ET-12181-00-00
Unavailable
3
SPROCKET, CAM CHAIN
6ET-12176-00-00
Unavailable
4
BOLT, FLANGE
90105-07006-00
$8.49
5
VALVE, INTAKE
6S5-12111-01-00
Unavailable
6
VALVE, EXHAUST
6S5-12121-00-00
Unavailable
7
SEAT, VALVE SPRING
6S5-12116-00-00
Unavailable
8
SPRING, VALVE INNER
6S5-12113-00-00
Unavailable
9
RETAINER, VALVE SPRING
6S5-12117-00-00
Unavailable
10
COTTER, VALVE
3LD-12118-00-00
$2.70
11
SEAL, VALVE STEM
51Y-12119-00-00
$6.99
12
PAD, ADJUSTING
3LD-12168-00-00
$16.49
12
PAD, ADJUSTING
3LD-12168-20-00
$17.49
12
PAD, ADJUSTING
3LD-12168-40-00
$17.49
12
PAD, ADJUSTING (1.35)
3LD-12168-60-00
Unavailable
12
PAD, ADJUSTING (1.40)
3LD-12168-80-00
Unavailable
12
PAD, ADJUSTING (1.45)
3LD-12168-A0-00
Unavailable
12
PAD, ADJUSTING (1.50)
3LD-12168-F0-00
Unavailable
12
PAD, ADJUSTING (1.55)
3LD-12168-H1-00
Unavailable
12
PAD, ADJUSTING (1.60)
3LD-12168-K1-00
Unavailable
12
PAD, ADJUSTING (1.65)
3LD-12168-M1-00
Unavailable
12
PAD, ADJUSTING
3LD-12168-R1-00
Unavailable
12
PAD, ADJUSTING
3LD-12168-U1-00
Unavailable
12
PAD, ADJUSTING
3LD-12168-W1-00
Unavailable
12
PAD, ADJUSTING
3LD-12168-Y1-00
Unavailable
12
PAD, ADJUSTING
3LD-12169-11-00
Unavailable
12
PAD, ADJUSTING
3LD-12169-31-00
Unavailable
12
PAD, ADJUSTING
3LD-12169-50-00
Unavailable
12
PAD, ADJUSTING
3LD-12169-70-00
Unavailable
12
PAD, ADJUSTING (2.10)
3LD-12169-90-00
Unavailable
12
PAD, ADJUSTING (2.15)
3LD-12169-E0-00
Unavailable
12
PAD, ADJUSTING
3LD-12169-G0-00
Unavailable
12
PAD, ADJUSTING (2.25)
3LD-12169-J0-00
Unavailable
12
PAD, ADJUSTING
3LD-12169-L0-00
Unavailable
13
LIFTER, VALVE
6S5-12153-00-00
Unavailable
14
CHAIN
94591-74152-00
Unavailable
15
DAMPER, CHAIN 2
6ET-12252-00-00
Unavailable
16
PLATE
6BH-12279-00-00
Unavailable
17
BOLT, BUTTON HEAD(4NK)
92014-06030-00
Unavailable
18
TENSIONER ASSY, CA
6S5-12210-02-00
Unavailable
19
. GASKET
6S5-121E2-00-00
Unavailable
20
BOLT,SOCKET
91380-06025-00
Unavailable
21
PIPE, OIL 2
6S5-13418-00-00
Unavailable
22
. GASKET
90430-10007-00
Unavailable
23
BOLT, UNION
90401-10040-00
Unavailable
24
DAMPER, CHAIN 1
6ET-12251-00-00
Unavailable
25
GUIDE, STOPPER 2
6BH-12241-00-00
Unavailable
