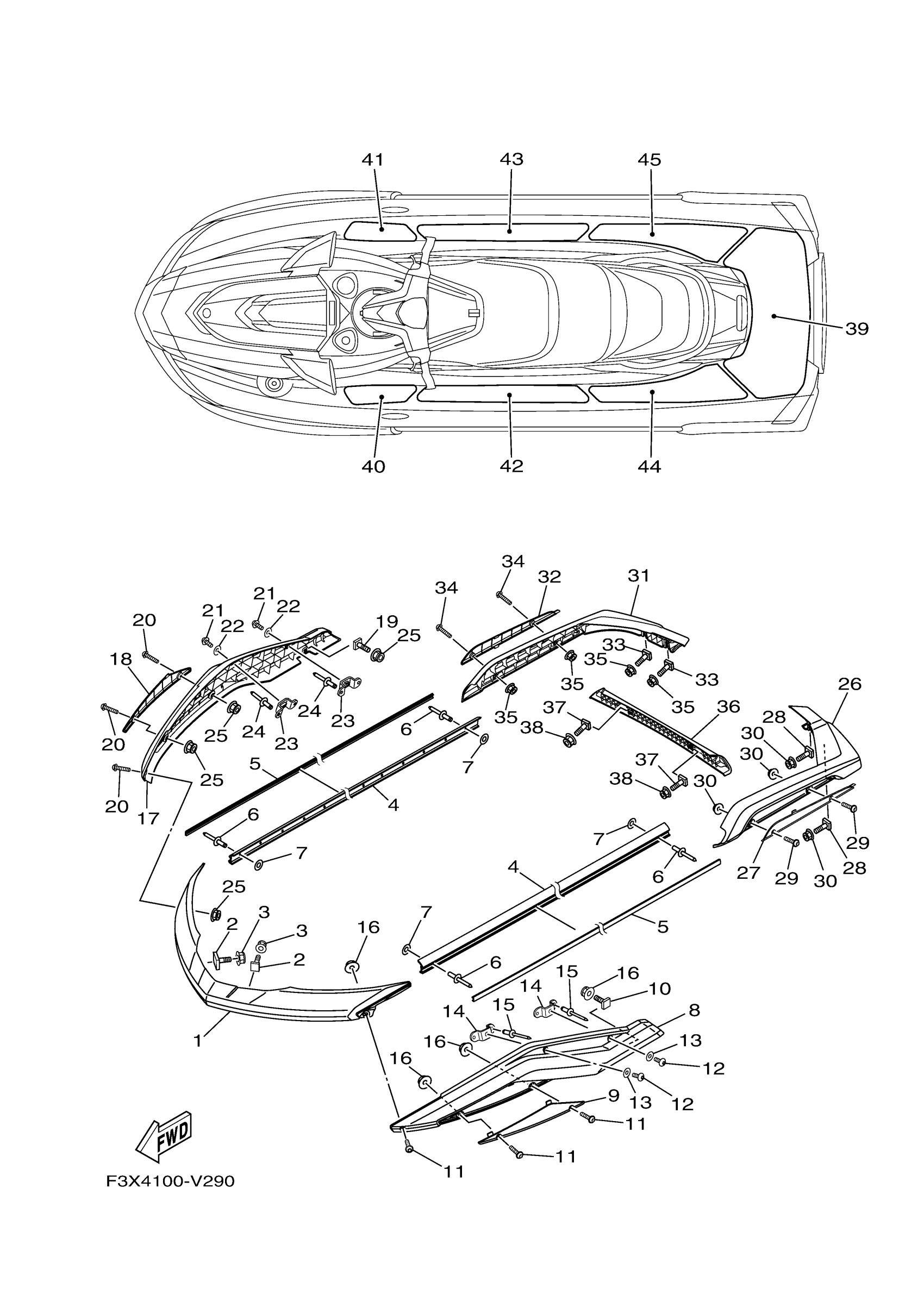

Yamaha FC1800AW (FX CRUISER SVHO) F3X7 2021 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-01-00

$28.77

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F3X-U2512-00-00

$25.74

5

INNER,GUNWALE

F3X-U2519-00-00

$18.17

5

INNER,GUNWALE

F3X-U2519-40-00

$16.65

6

RIVET, BLIND

90267-489U8-00

$0.99

7

WASHER

9299R-05200-00

$3.16

8

JOINT, GUNWALE LH

F3X-U252E-00-00

$28.02

9

GUNWALL INSIDE

F3X-U2514-40-00

$12.11

9

GUNWALL INSIDE

F3X-U2514-A0-00

$12.11

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

13

WASHER, PLATE

90201-06805-00

$0.61

14

BRACKET

F3X-U4949-00-00

$2.52

15

RIVET, BLIND

90267-489U6-00

$1.37

16

NUT, LOCK

F2N-U142L-00-00

$1.00

17

JOINT, GUNWALE RH

F3X-U252F-00-00

$28.02

18

GUNWALL INSIDE

F3X-U2514-50-00

$10.75

18

GUNWALL INSIDE

F3X-U2514-B0-00

$12.11

19

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

20

SCREW

F3X-U7823-12-00

$1.25

21

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

22

WASHER, PLATE

90201-06805-00

$0.61

23

BRACKET

F3X-U4949-00-00

$2.52

24

RIVET, BLIND

90267-489U6-00

$1.37

25

NUT, LOCK

F2N-U142L-00-00

$1.00

26

GUNWALE, STERN 1

F3X-U251D-00-00

$24.98

27

INNER GUNWALE, AFT

F3X-U255C-40-00

$5.23

27

INNER GUNWALE, AFT

F3X-U255C-A0-00

$74.23

28

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

29

SCREW

F3X-U7823-12-00

$1.25

30

NUT, LOCK

F2N-U142L-00-00

$1.00

31

GUNWALE, STERN 2

F3X-U251E-00-00

$24.98

32

INNER GUNWALE, AFT

F3X-U255C-50-00

$5.23

32

INNER GUNWALE, AFT

F3X-U255C-B0-00

$74.23

33

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

34

SCREW

F3X-U7823-12-00

$1.25

35

NUT, LOCK

F2N-U142L-00-00

$1.00

36

COVER, GUNWALE 1

F3X-U252C-01-00

$10.04

37

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

38

NUT, LOCK

F2N-U142L-00-00

$1.00

39

MAT, UPPER

F3X-U3581-01-00

$70.39

40

MAT, STEP 1

F3X-U351H-00-00

$31.80

41

MAT, STEP 2

F3X-U351J-00-00

$31.80

42

MAT, STEP 3

F3X-U351K-00-00

$45.44

43

MAT, STEP 4

F3X-U351M-00-00

$45.44

44

MAT, STEP 5

F3X-U351N-00-00

$46.95

45

MAT, STEP 6

F3X-U351P-00-00

$46.95
