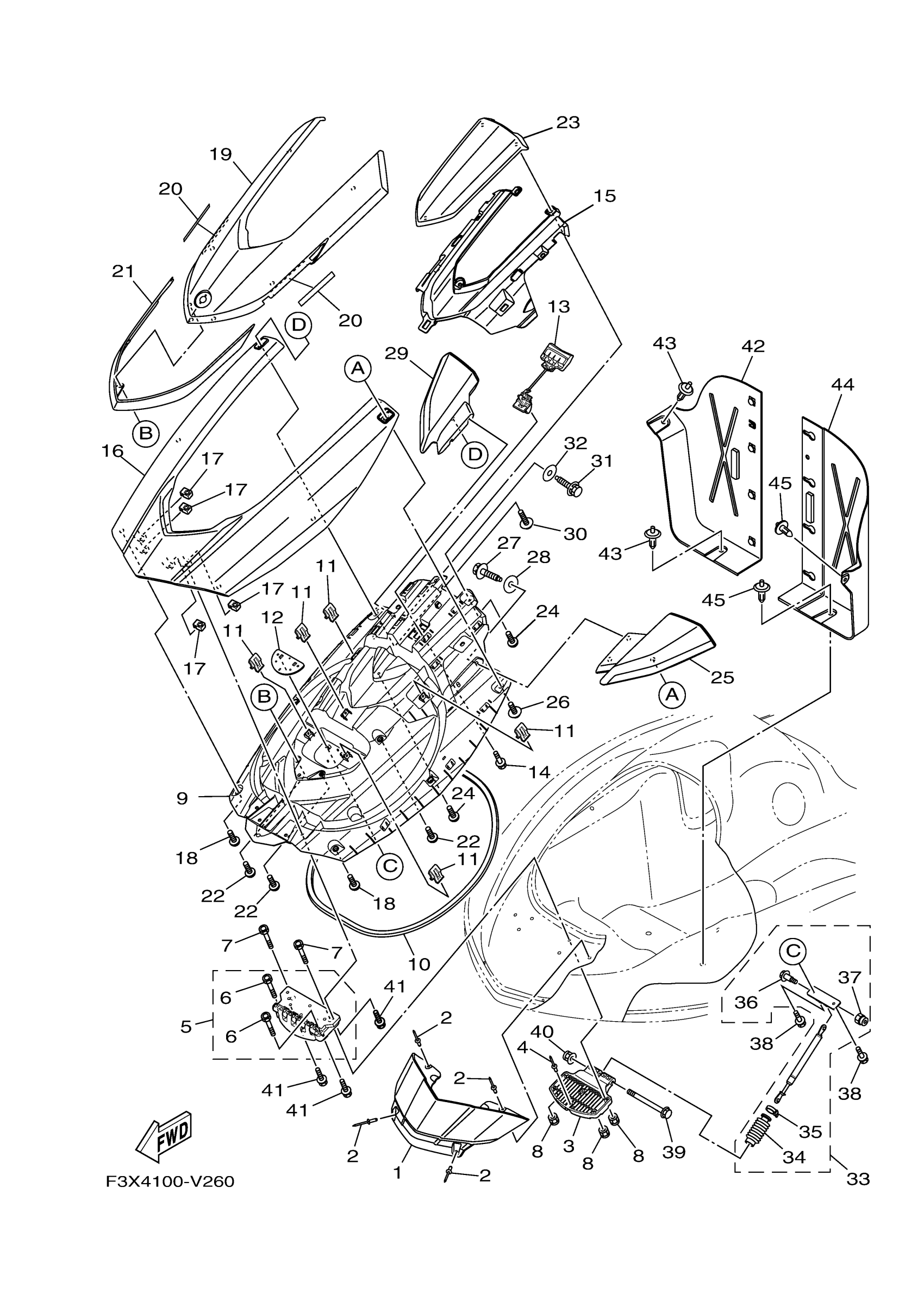

Yamaha FC1800AW (FX CRUISER SVHO) F3X7 2021 ENGINE HATCH 2 Diagram

#

Description
Price

1

COVER, FRONT

F3X-U513M-02-P0

$128.99

1

COVER, FRONT

F3X-U513M-02-P5

$95.99

2

RIVET, BLIND

90267-489U6-00

Unavailable

3

PLATE, HINGE LID

F3X-U518E-00-00

Unavailable

4

RIVET, BLIND

90267-489U6-00

Unavailable

5

HINGE, LID

F3X-U517D-01-00

Unavailable

6

BOLT

F3X-U3222-00-00

Unavailable

7

BOLT

F3X-U3222-00-00

Unavailable

8

NUT, LOCK

F2N-U142L-00-00

Unavailable

9

INNER, ENGINE HATCH

F3X-U519G-00-00

Unavailable

10

PACKING 1

F3X-U2663-10-00

Unavailable

11

CLIP

F3Y-U153K-00-00

Unavailable

12

PLATE, HATCH

F3X-U5148-00-00

Unavailable

13

LOCK, LID

F3X-U517C-00-00

Unavailable

14

BOLT, WITH WASHER (EW3)

90119-05912-00

Unavailable

15

OUTER, ENGINE HATCH

F3X-U519F-00-00

Unavailable

16

LID, ENGINE ROOM (PURW)

F3X-U517B-00-P0

Unavailable

16

LID, ENGINE ROOM (MDNM7)

F3X-U517B-00-P5

Unavailable

17

NUT

F3X-U517E-00-00

Unavailable

18

SCREW

F2S-U13C1-00-00

Unavailable

19

VISOR

F3X-U515N-01-P2

Unavailable

19

VISOR

F3X-U515N-01-P7

Unavailable

20

DAMPER 2

F0X-U515E-02-00

Unavailable

21

ORNAMENT, CENTER

F3X-U517V-00-00

Unavailable

21

ORNAMENT, CENTER

F3X-U517V-40-00

Unavailable

22

SCREW

F2S-U13C1-00-00

Unavailable

23

VISOR, 2

F3X-U515P-00-00

Unavailable

24

SCREW

F2S-U13C1-00-00

Unavailable

25

MIRROR ASSY. 1

F3X-U590D-F0-00

Unavailable

25

MIRROR ASSY. 1

F3X-U590D-H0-00

Unavailable

26

SCREW

F3X-U7823-12-00

Unavailable

27

BOLT, WITH WASHER

90119-06880-00

Unavailable

28

WASHER, PLATE

90201-068G0-00

Unavailable

29

MIRROR ASSY. 2

F3X-U590E-F0-00

Unavailable

29

MIRROR ASSY. 2

F3X-U590E-H0-00

Unavailable

30

SCREW

F3X-U7823-12-00

Unavailable

31

BOLT, WITH WASHER

90119-06880-00

Unavailable

32

WASHER, PLATE

90201-068G0-00

Unavailable

33

DAMPER ASSY

F2S-6514S-00-00

Unavailable

34

. COVER, DAMPER

F1W-6514T-00-00

Unavailable

35

BAND

1UA-82591-00-00

Unavailable

36

BOLT

90109-06218-00

Unavailable

37

NUT, SELF-LOCKING

95720-06300-00

Unavailable

38

BOLT, WITH WASHER

90119-06830-00

Unavailable

39

BOLT, SPECIAL

F3X-U491K-00-00

Unavailable

40

NUT, LOCK

F3Y-U142L-00-00

Unavailable

41

BOLT, WITH WASHER

90119-06896-00

Unavailable

42

LOCKER,BOW

F3X-U475B-00-00

Unavailable

43

RIVET

F4P-U1454-00-00

Unavailable

44

PLATE, LOKER BOW

F3X-U475F-00-00

Unavailable

45

RIVET

F4P-U1454-00-00

Unavailable
