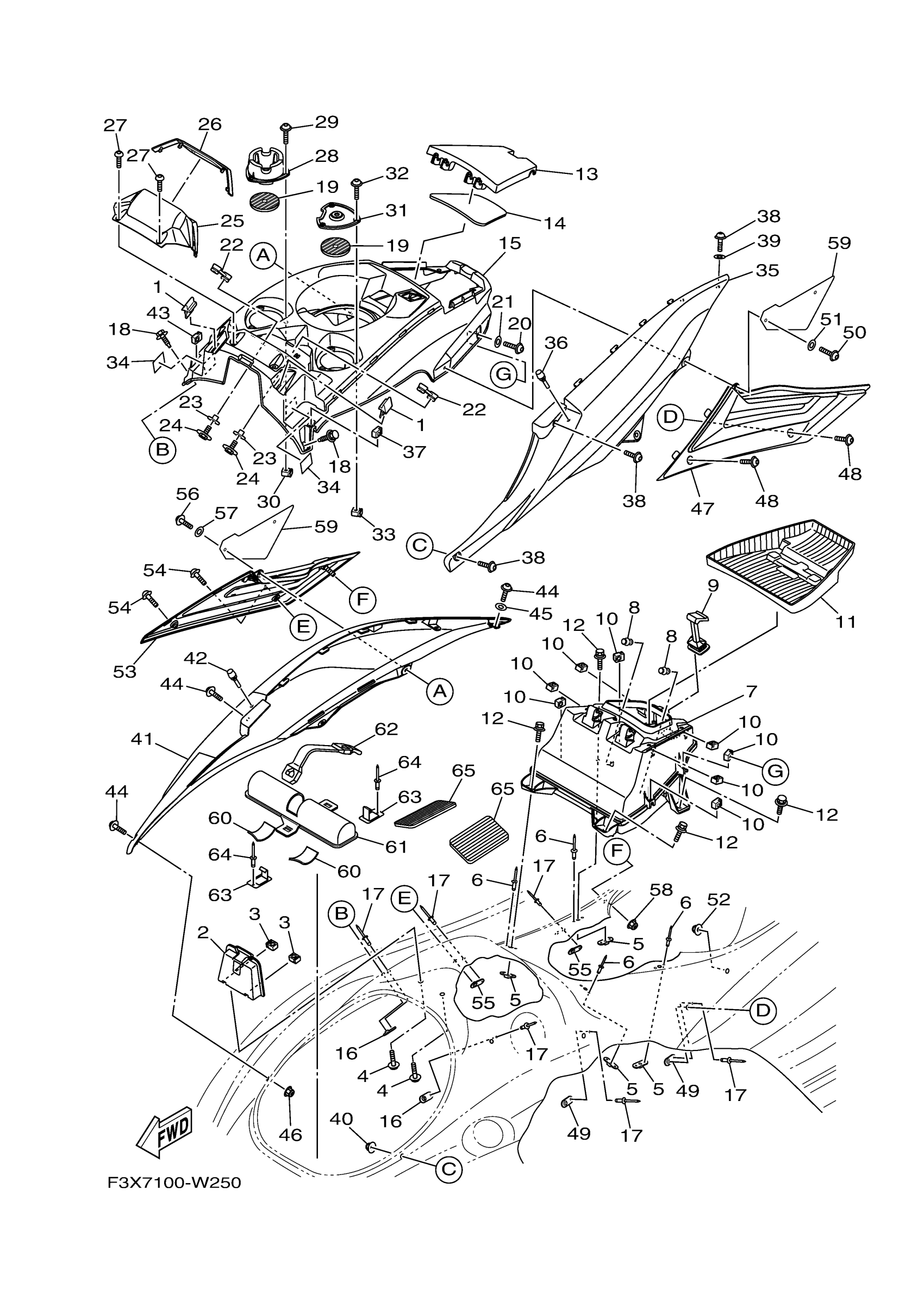

Yamaha FC1800AW (FX CRUISER SVHO) F3X7 2021 ENGINE HATCH 1 Diagram

#

Description

Price

1

PACKING 4

F1K-U266C-10-00

$4.99

2

HOOK,LID LOCK

F3X-U517F-00-00

Unavailable

3

NUT

F3X-U517E-00-00

Unavailable

4

BOLT, WITH WASHER

90119-06880-00

Unavailable

5

BRACKET

F2C-U826C-00-00

Unavailable

6

RIVET, BLIND

90267-489U2-00

Unavailable

7

BOX GLOVE

F3X-U516P-00-00

Unavailable

8

. SEAL

F3X-U2723-00-00

Unavailable

9

LOCK

F3X-U2875-01-00

Unavailable

10

NUT

F3X-U517E-00-00

Unavailable

11

INNER, CASE

F3X-U591L-00-00

Unavailable

12

BOLT, WITH WASHER

90119-08828-00

Unavailable

13

LID HATCH

F3X-U517H-00-00

Unavailable

14

PACKING CASE

F3X-U519D-01-00

Unavailable

15

COVER,CENTER

F3X-U5554-01-00

Unavailable

16

PLATE, FIX

F2X-U5175-00-00

Unavailable

17

RIVET (EU0)

90267-48938-00

Unavailable

18

BOLT,WITH WASHER

90119-068B8-00

Unavailable

19

MAT

F3X-U3844-00-00

Unavailable

20

SCREW

F3X-U7823-12-00

Unavailable

21

WASHER, PLATE

90201-06805-00

Unavailable

22

GROMMET

F3X-U1338-00-00

Unavailable

23

COLLAR

F3X-U151R-00-00

Unavailable

24

BOLT

F3X-U1355-00-00

Unavailable

25

COVER METER

F3X-U8262-00-00

Unavailable

26

ORNAMENT, METER

F3X-U826F-00-00

Unavailable

27

SCREW

F2S-U13C1-00-00

Unavailable

28

HOLDER, DRINK

F3X-U5633-00-00

Unavailable

29

SCREW

F3X-U7823-12-00

Unavailable

30

NUT

F3X-U517E-00-00

Unavailable

31

FIX, PLATE

F3X-UE175-00-00

Unavailable

32

SCREW

F3X-U7823-12-00

Unavailable

33

NUT

F3X-U517E-00-00

Unavailable

34

PACKING

F2C-U1743-00-00

Unavailable

35

COVER,SIDE 1 (PURW)

F3X-U377B-00-P0

Unavailable

35

COVER,SIDE 1 (MDNM7)

F3X-U377B-00-P5

Unavailable

36

. CUSHION, RUBBER

F1W-U3768-01-00

Unavailable

37

NUT

F3X-U517E-00-00

Unavailable

38

SCREW

F3X-U7823-12-00

Unavailable

39

WASHER, PLATE

90201-06805-00

Unavailable

40

NUT, LOCK

F2N-U142L-00-00

Unavailable

41

COVER,SIDE 2 (PURW)

F3X-U377C-00-P0

Unavailable

41

COVER,SIDE 2 (MDNM7)

F3X-U377C-00-P5

Unavailable

42

. CUSHION, RUBBER

F1W-U3768-01-00

Unavailable

43

NUT

F3X-U517E-00-00

Unavailable

44

SCREW

F3X-U7823-12-00

Unavailable

45

WASHER, PLATE

90201-06805-00

Unavailable

46

NUT, LOCK

F2N-U142L-00-00

Unavailable

47

SIDE ORNAMENT ASSY 1

F3X-U370J-20-00

Unavailable

47

SIDE ORNAMENT ASSY 1

F3X-U370J-50-00

Unavailable

48

SCREW

F3X-U7823-02-00

Unavailable

49

PLATE, FIX

F2X-U5175-00-00

Unavailable

50

SCREW

F3X-U7823-12-00

Unavailable

51

WASHER, PLATE

90201-06805-00

Unavailable

52

NUT, LOCK

F2N-U142L-00-00

Unavailable

53

SIDE ORNAMENT ASSY 2

F3X-U370K-20-00

Unavailable

53

SIDE ORNAMENT ASSY 2

F3X-U370K-50-00

Unavailable

54

SCREW

F3X-U7823-02-00

Unavailable

55

PLATE, FIX

F2X-U5175-00-00

Unavailable

56

SCREW

F3X-U7823-12-00

Unavailable

57

WASHER, PLATE

90201-06805-00

Unavailable

58

NUT, LOCK

F2N-U142L-00-00

Unavailable

59

PROTECTOR

F3X-U895D-00-00

Unavailable

60

MAT 2

F1K-U759C-00-00

Unavailable

61

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

Unavailable

62

BAND 1

F2P-U828K-00-00

Unavailable

63

HOOK A

F1K-U5772-04-00

Unavailable

64

RIVET (EU0)

90267-48938-00

Unavailable

65

PAD, BATTERY

F1S-U8221-00-00

Unavailable
