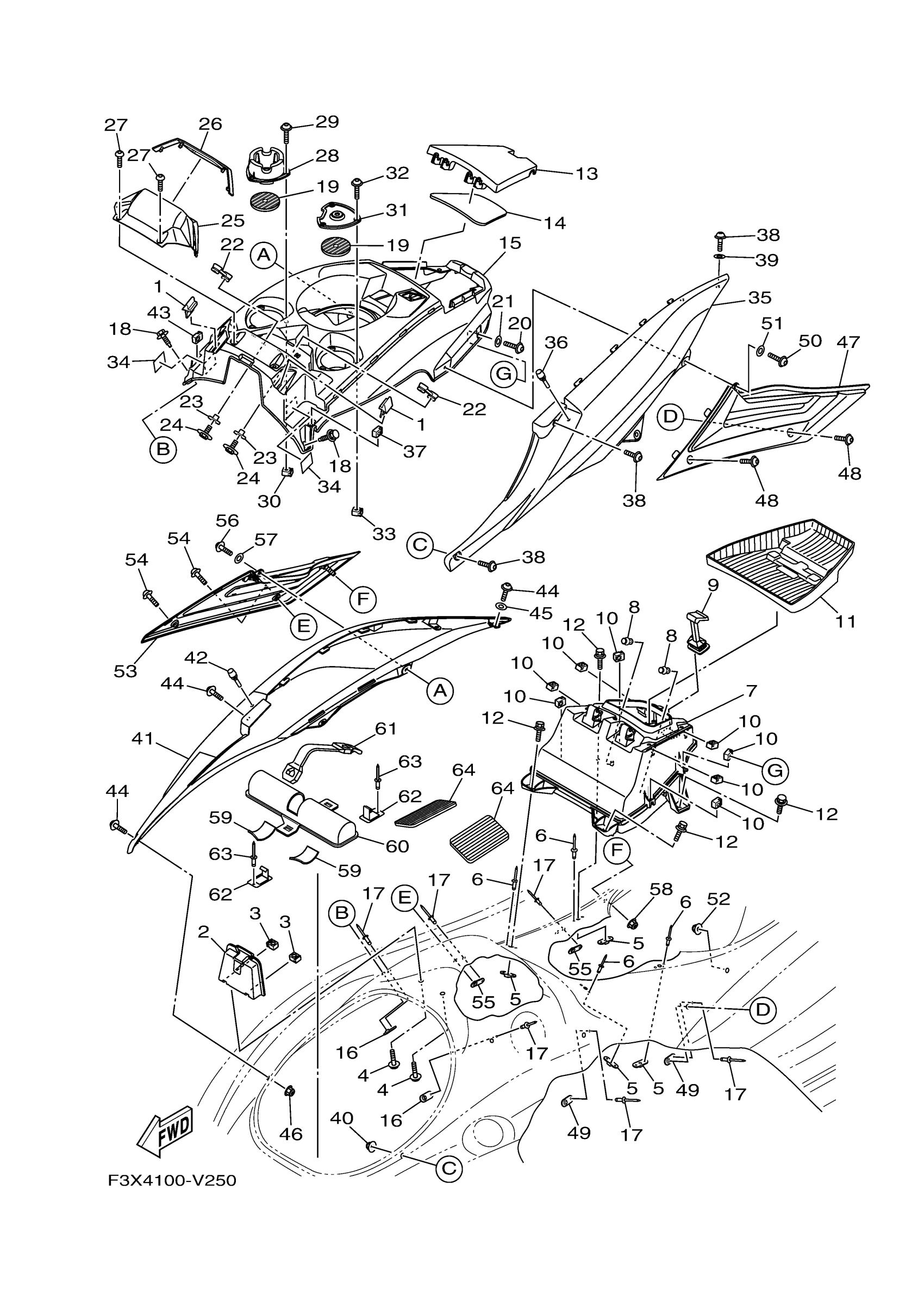

Yamaha FC1800AV (FX CRUISER SVHO) F3X4 2020 ENGINE HATCH 1 Diagram

#

Description
Price

1

PACKING 4

F1K-U266C-10-00

$2.27

2

HOOK,LID LOCK

F3X-U517F-00-00

$12.86

3

NUT

F3X-U517E-00-00

$1.23

4

BOLT, WITH WASHER

90119-06880-00

$3.52

5

BRACKET

F2C-U826C-00-00

$3.79

6

RIVET, BLIND

90267-489U2-00

$1.43

7

BOX GLOVE

F3X-U516P-00-00

$87.86

8

. SEAL

F3X-U2723-00-00

$2.16

9

LOCK

F3X-U2875-01-00

$13.62

10

NUT

F3X-U517E-00-00

$1.23

11

INNER, CASE

F3X-U591L-00-00

$37.86

12

BOLT, WITH WASHER

90119-08828-00

$2.30

13

LID HATCH

F3X-U517H-00-00

$17.77

14

PACKING CASE

F3X-U519D-01-00

$11.35

15

COVER,CENTER

F3X-U5554-01-00

$292.41

16

PLATE, FIX

F2X-U5175-00-00

$1.80

17

RIVET (EU0)

90267-48938-00

$5.00

18

BOLT,WITH WASHER

90119-068B8-00

$28.70

19

MAT

F3X-U3844-00-00

$2.12

20

SCREW

F3X-U7823-12-00

$1.25

21

WASHER, PLATE

90201-06805-00

$0.61

22

GROMMET

F3X-U1338-00-00

$1.67

23

COLLAR

F3X-U151R-00-00

$1.14

24

BOLT

F3X-U1355-00-00

$0.83

25

COVER METER

F3X-U8262-00-00

$15.14

26

ORNAMENT, METER

F3X-U826F-00-00

$31.80

27

SCREW

F2S-U13C1-00-00

$2.36

28

HOLDER, DRINK

F3X-U5633-00-00

$4.66

29

SCREW

F3X-U7823-12-00

$1.25

30

NUT

F3X-U517E-00-00

$1.23

31

FIX, PLATE

F3X-UE175-00-00

$9.62

32

SCREW

F3X-U7823-12-00

$1.25

33

NUT

F3X-U517E-00-00

$1.23

34

PACKING

F2C-U1743-00-00

$1.87

35

COVER,SIDE 1 (VPBM6)

F3X-U377B-00-P3

$162.11

35

COVER,SIDE 1 (RM9)

F3X-U377B-00-P4

$162.11

36

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

37

NUT

F3X-U517E-00-00

$1.23

38

SCREW

F3X-U7823-12-00

$1.25

39

WASHER, PLATE

90201-06805-00

$0.61

40

NUT, LOCK

F2N-U142L-00-00

$1.00

41

COVER,SIDE 2 (VPBM6)

F3X-U377C-00-P3

$162.11

41

COVER,SIDE 2 (RM9)

F3X-U377C-00-P4

$162.11

42

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

43

NUT

F3X-U517E-00-00

$1.23

44

SCREW

F3X-U7823-12-00

$1.25

45

WASHER, PLATE

90201-06805-00

$0.61

46

NUT, LOCK

F2N-U142L-00-00

$1.00

47

SIDE ORNAMENT ASSY 1

F3X-U370J-00-00

$62.11

47

SIDE ORNAMENT ASSY 1

F3X-U370J-40-00

$71.20

48

SCREW

F3X-U7823-02-00

$1.37

49

PLATE, FIX

F2X-U5175-00-00

$1.80

50

SCREW

F3X-U7823-12-00

$1.25

51

WASHER, PLATE

90201-06805-00

$0.61

52

NUT, LOCK

F2N-U142L-00-00

$1.00

53

SIDE ORNAMENT ASSY 2

F3X-U370K-00-00

$62.11

53

SIDE ORNAMENT ASSY 2

F3X-U370K-40-00

$218.17

54

SCREW

F3X-U7823-02-00

$1.37

55

PLATE, FIX

F2X-U5175-00-00

$1.80

56

SCREW

F3X-U7823-12-00

$1.25

57

WASHER, PLATE

90201-06805-00

$0.61

58

NUT, LOCK

F2N-U142L-00-00

$1.00

59

MAT 2

F1K-U759C-00-00

$1.72

60

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

61

BAND 1

F2P-U828K-00-00

$5.87

62

HOOK A

F1K-U5772-04-00

$6.29

63

RIVET (EU0)

90267-48938-00

$5.00

64

PAD, BATTERY

F1S-U8221-00-00

$2.75
