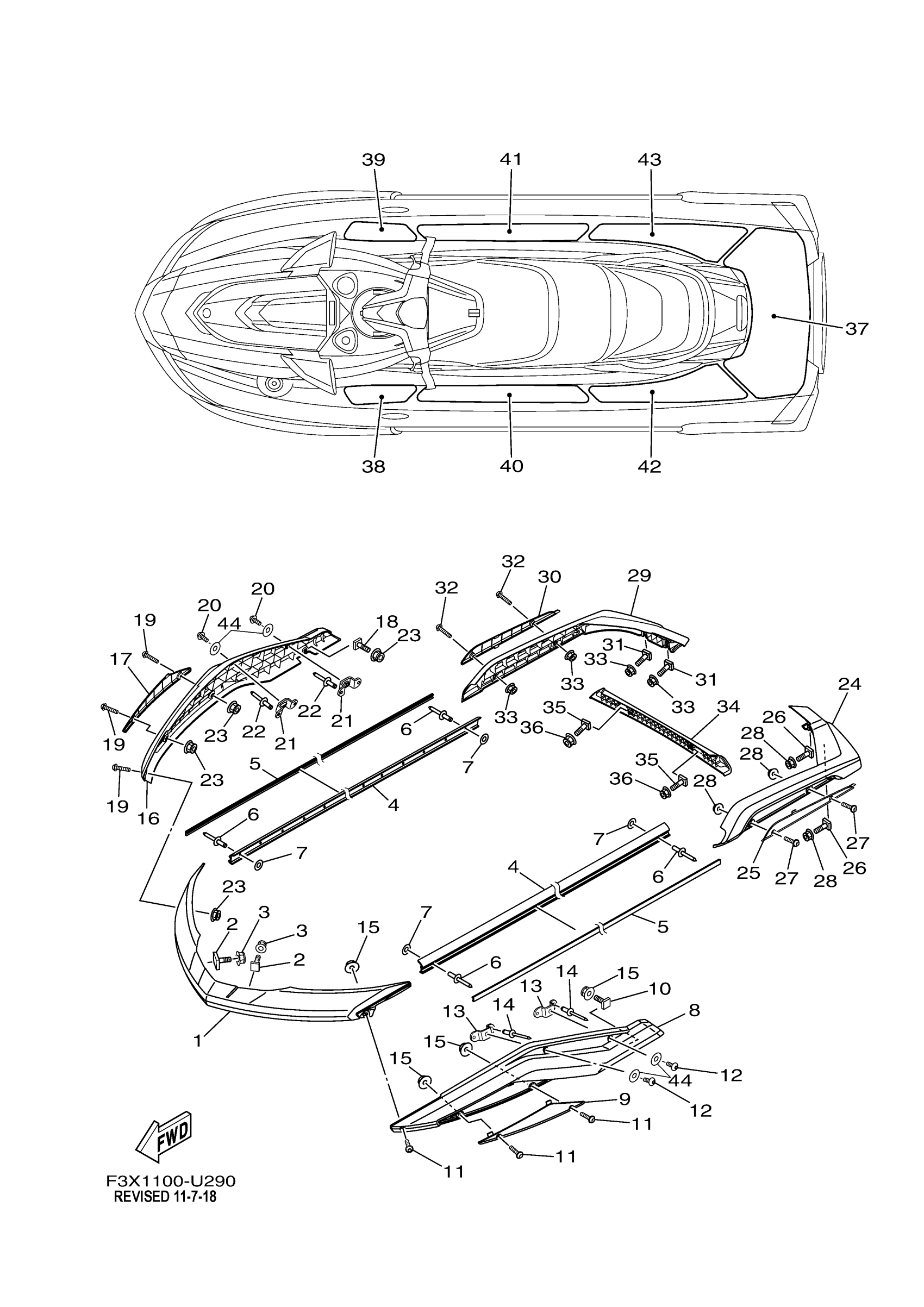

Yamaha FC1800AU (FX CRUISER SVHO) F3X1 2019 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F3X-U2511-01-00

$27.93

1

GUNWALE, BOW

F3X-U2511-11-00

$37.98

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.43

4

GUNWALE, SIDE

F3X-U2512-00-00

$24.99

4

GUNWALE, SIDE

F3X-U2512-10-00

$25.72

5

INNER,GUNWALE

F3X-U2519-00-00

$17.63

5

INNER,GUNWALE

F3X-U2519-10-00

$17.63

6

RIVET, BLIND

90267-489U8-00

$1.37

7

WASHER

9299R-05200-00

$4.60

8

JOINT, GUNWALE LH

F3X-U252E-00-00

$27.19

8

JOINT, GUNWALE LH

F3X-U252E-10-00

$39.53

9

GUNWALL INSIDE

F3X-U2514-40-00

$11.75

9

GUNWALL INSIDE

F3X-U2514-60-00

$85.28

10

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

11

SCREW

F3X-U7823-12-00

$1.25

12

SCREW

F4G-U7823-00-00

Unavailable

13

BRACKET

F3X-U4949-00-00

$2.66

14

RIVET, BLIND

90267-489U6-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.43

16

JOINT, GUNWALE RH

F3X-U252F-00-00

$27.19

16

JOINT, GUNWALE RH

F3X-U252F-10-00

$39.53

17

GUNWALL INSIDE

F3X-U2514-50-00

$11.48

17

GUNWALL INSIDE

F3X-U2514-70-00

$11.75

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

SCREW

F3X-U7823-12-00

$1.25

20

SCREW

F4G-U7823-00-00

Unavailable

21

BRACKET

F3X-U4949-00-00

$2.66

22

RIVET, BLIND

90267-489U6-00

Unavailable

23

NUT, LOCK

F2N-U142L-00-00

$1.43

24

GUNWALE, STERN 1

F3X-U251D-00-00

$24.25

24

GUNWALE, STERN 1

F3X-U251D-10-00

$30.87

25

INNER GUNWALE, AFT

F3X-U255C-40-00

$5.07

25

INNER GUNWALE, AFT

F3X-U255C-60-00

$32.34

26

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

27

SCREW

F3X-U7823-12-00

$1.25

28

NUT, LOCK

F2N-U142L-00-00

$1.43

29

GUNWALE, STERN 2

F3X-U251E-00-00

$24.25

29

GUNWALE, STERN 2

F3X-U251E-10-00

$30.87

30

INNER GUNWALE, AFT

F3X-U255C-50-00

$5.07

30

INNER GUNWALE, AFT

F3X-U255C-70-00

$4.49

31

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

32

SCREW

F3X-U7823-12-00

$1.25

33

NUT, LOCK

F2N-U142L-00-00

$1.43

34

COVER, GUNWALE 1

F3X-U252C-01-00

$10.75

34

COVER, GUNWALE 1

F3X-U252C-10-00

$15.43

35

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

36

NUT, LOCK

F2N-U142L-00-00

$1.43

37

MAT, UPPER

F3X-U3581-01-00

$70.57

37

MAT, UPPER

F3X-U3581-11-00

$72.04

38

MAT, STEP 1

F3X-U351H-00-00

$30.87

38

MAT, STEP 1

F3X-U351H-10-00

$30.87

39

MAT, STEP 2

F3X-U351J-00-00

$30.87

39

MAT, STEP 2

F3X-U351J-10-00

$30.87

40

MAT, STEP 3

F3X-U351K-00-00

$44.10

40

MAT, STEP 3

F3X-U351K-10-00

$44.10

41

MAT, STEP 4

F3X-U351M-00-00

$44.10

41

MAT, STEP 4

F3X-U351M-10-00

$44.10

42

MAT, STEP 5

F3X-U351N-00-00

$45.57

42

MAT, STEP 5

F3X-U351N-10-00

$48.51

43

MAT, STEP 6

F3X-U351P-00-00

$45.57

43

MAT, STEP 6

F3X-U351P-10-00

$48.51

44

WASHER, PLATE

90201-06805-00

$0.59
