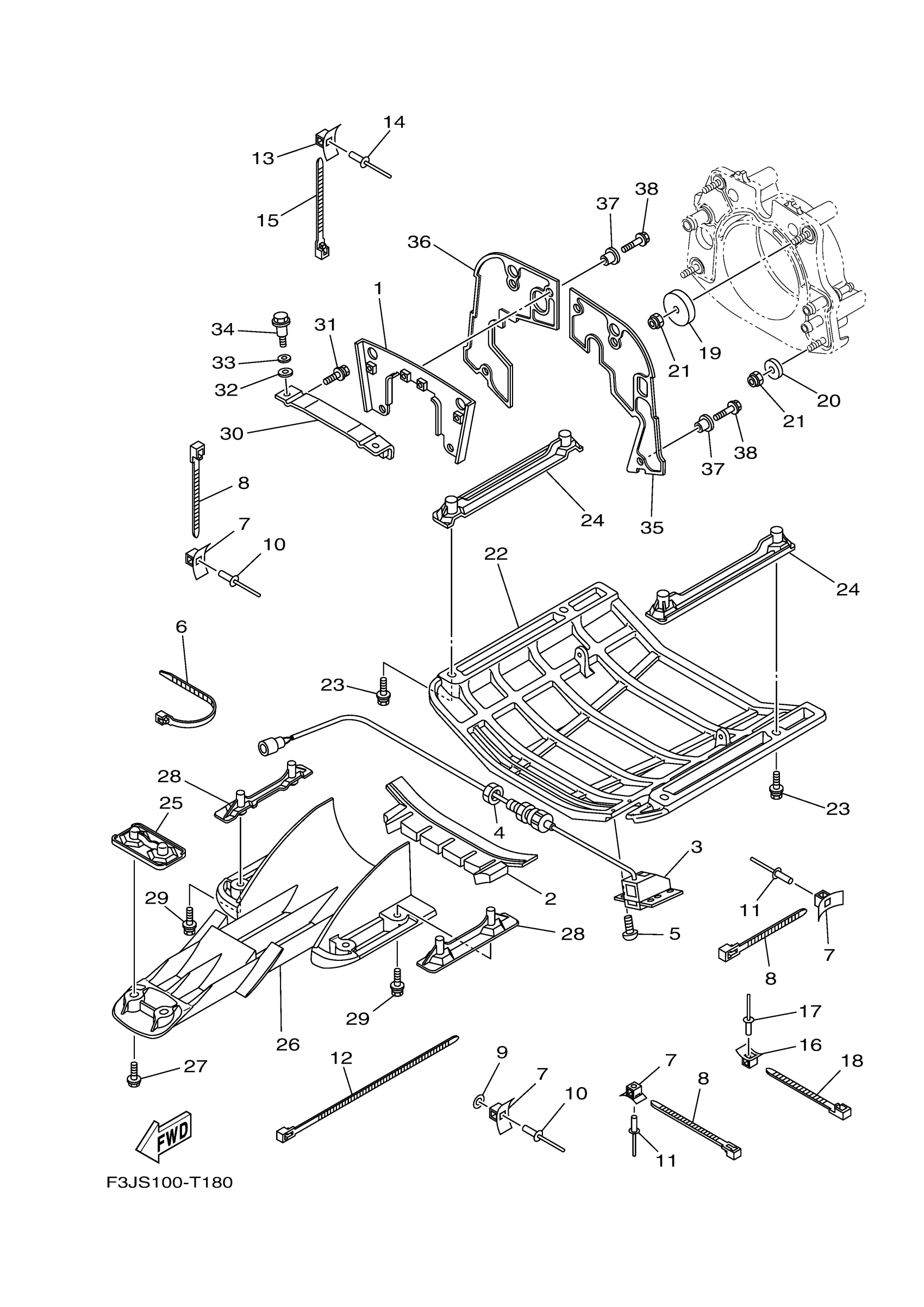

Yamaha FC1800AT (FX CRUISER SVHO) F3JS 2018 JET UNIT 4 Diagram

#

Description
Price

1

BRACKET

6ET-R1959-00-00

$19.10

2

SPACER

F2S-U72C0-01-00

$15.79

3

SENSOR SPEED

F1X-U8K31-02-00

Unavailable

4

NUT

F2C-U151S-00-00

$1.54

5

SCREW, ROUND HEAD

90150-05807-00

$0.86

6

CLAMP

90464-32801-00

$1.29

7

BASE, CLAMP

F1W-U828M-00-00

$1.29

8

CLAMP

90464-32801-00

$1.29

9

WASHER

9299R-05200-00

$4.60

10

RIVET, BLIND

90267-489U6-00

Unavailable

11

RIVET, BLIND

90267-48806-00

$2.16

12

CLAMP

90464-99801-00

$2.65

13

BASE, CLAMP

F1W-U828M-00-00

$1.29

14

RIVET, BLIND

90267-48806-00

$2.16

15

CLAMP

90464-32801-00

$1.29

16

BASE, CLAMP

F1W-U828M-00-00

$1.29

17

RIVET, BLIND

90267-48806-00

$2.16

18

CLAMP

90464-32801-00

$1.29

19

WASHER

F1S-U725E-01-00

$8.61

20

WASHER, PLATE

90201-10801-00

$3.65

21

NUT, NYLON

9572R-10300-00

$3.52

22

PLATE 2

F3J-6273B-00-00

$374.99

23

BOLT, WITH WASHER

90119-08829-00

$4.09

24

BRACKET 2

F1B-U8572-01-00

$14.35

25

BRACKET, 3

F2S-U8577-00-00

Unavailable

26

SCREEN, INTAKE

6ET-R1333-00-00

$110.28

27

BOLT, WITH WASHER

90119-08829-00

$4.09

28

BRACKET 1

F1G-U8571-02-00

$15.79

29

BOLT, WITH WASHER

90119-08829-00

$4.09

30

BRACKET

F2C-U7557-01-00

$29.40

31

BOLT, WITH WASHER

90119-08800-00

$4.31

32

GASKET

90430-12002-00

$1.70

33

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

34

BOLT

90109-08043-00

$3.97

35

PLATE, RUBBER 1

F3J-U757E-00-00

Unavailable

36

PLATE, RUBBER 2

F3J-U757F-00-00

$12.49

37

COLLAR

90387-06080-00

$6.83

38

BOLT, WITH WASHER

90119-06827-00

Unavailable
