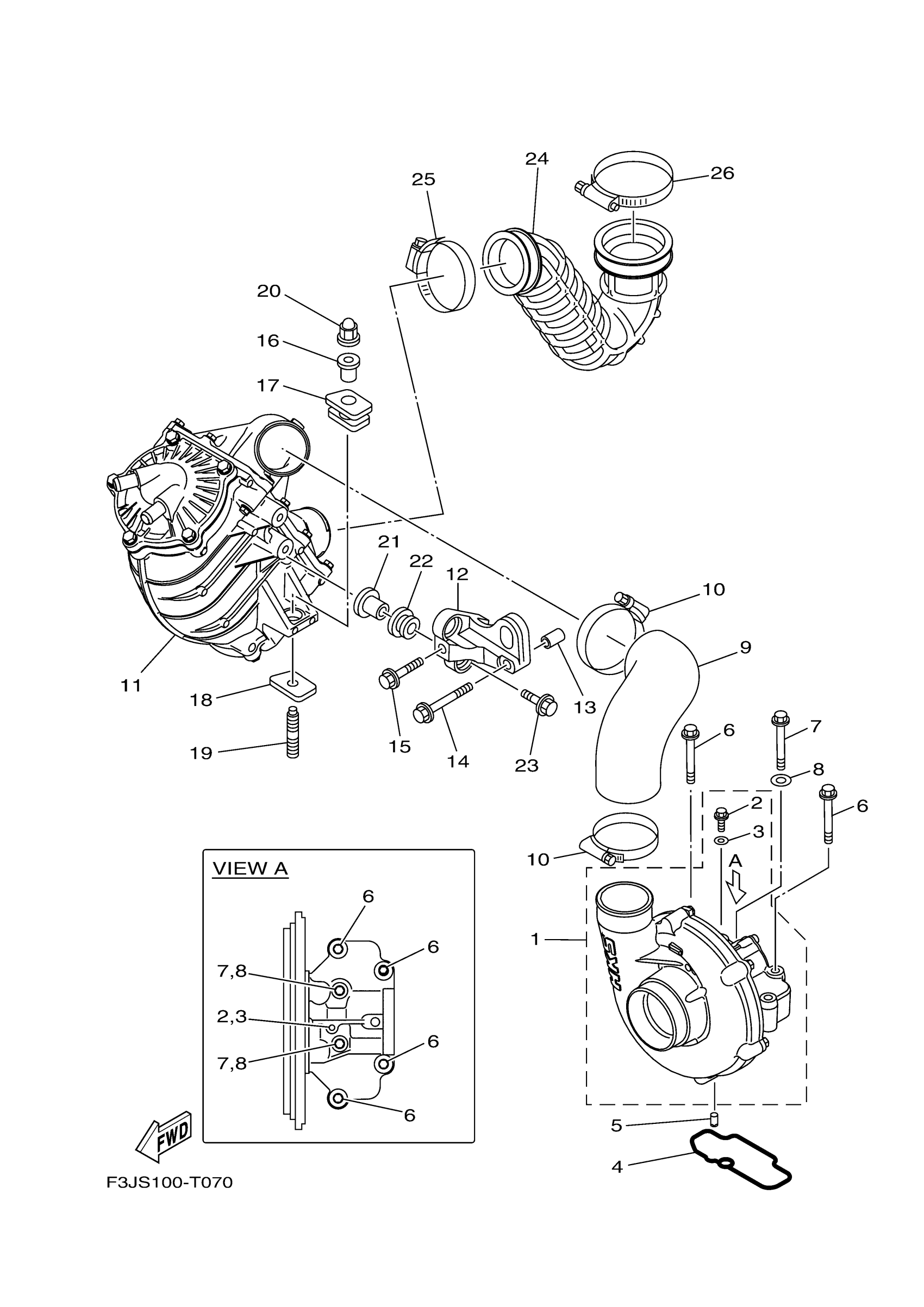

Yamaha FC1800AT (FX CRUISER SVHO) F3JS 2018 INTAKE 2 Diagram

#

Description
Price

1

SUPER CHARGER ASSY

6ET-141A0-13-00

Unavailable

2

. BOLT, FLANGE

90105-05020-00

Unavailable

3

. GASKET

6S5-14199-00-00

Unavailable

4

. O-RING

6S5-1416A-00-00

Unavailable

5

PIN, DOWEL

93604-10M03-00

Unavailable

6

BOLT, FLANGE

95814-08055-00

Unavailable

7

BOLT, FLANGE

95814-06065-00

Unavailable

8

WASHER, PLATE

90201-06028-00

Unavailable

9

PIPE

6S5-14349-00-00

Unavailable

10

HOSE CLAMP ASSY

90450-75003-00

Unavailable

11

AIR COOLER ASSY.

6ET-13670-01-00

Unavailable

12

BRACKET, AIR COOLE

6S5-13691-12-00

Unavailable

13

PIN, DOWEL(4JT)

99590-14016-00

$4.24

14

BOLT, WITH WASHER

90119-10047-00

Unavailable

15

BOLT, WITH WASHER

90119-10046-00

Unavailable

16

COLLAR

90387-11007-00

Unavailable

17

GROMMET

6S5-14435-01-00

Unavailable

18

PLATE

6S5-14243-01-00

Unavailable

19

BOLT, STUD

90116-10044-00

Unavailable

20

NUT, CAP

90176-10001-00

Unavailable

21

COLLAR

90387-11008-00

Unavailable

22

GROMMET(62L)

90480-21M63-00

Unavailable

23

BOLT, WITH WASHER

90119-10011-00

Unavailable

24

PIPE, BOOST

6CS-13651-01-00

Unavailable

25

HOSE CLAMP ASSY

90450-70005-00

Unavailable

26

HOSE CLAMP ASSY

90450-90002-00

Unavailable
